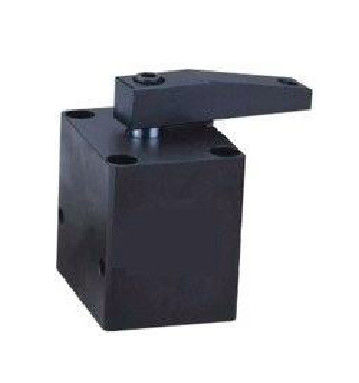

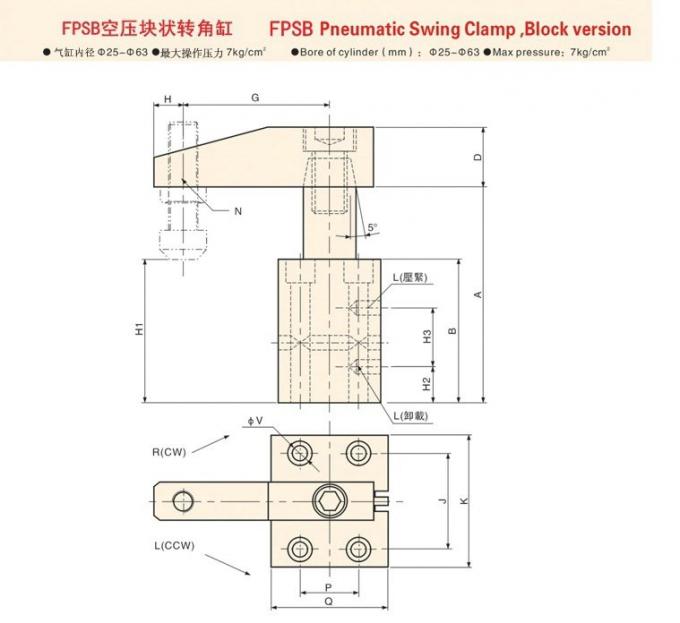

Air Driven Rotary Swing Clamp Block Type Screw Mounting Max. Clamping Force 140kgs
Product Introduction
1.Delicate design ,compact structure ,light weight , long life span and high clamping force make it a perfect clamp.
2.The sensor is available for this kind of swing clamp.
3.Upper installation , bottom installation or side installation.
4.When increasing length of clamping arm is required, be sure not to exceed 1.5 times of the original length.
|

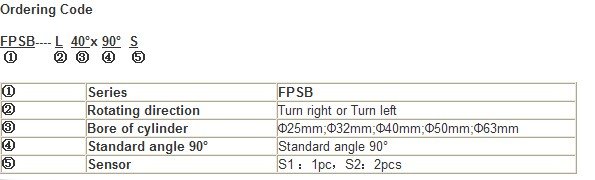

Bore of Cylinder (mm)
|
25
|
32
|
40
|
50
|
63
|
|
Dia. of Pison
|
14
|
16
|
16
|
20
|
20
|
|
Swing stroke (mm)
|
13
|
16
|
15
|
17
|
15
|
|
Clamping stroke
|
14
|
15
|
|||
|
Pressure area pull/push cm ?2;
|
3.37/4.9
|
6.03/8.03
|
10.56/12.56
|
16.48/19.62
|
28.01/31.15
|
|
Theoretical Clamping
5kg/ cm 2;
|
16kgs
|
30kgs
|
50kgs
|
80kgs
|
140kgs
|
|
Fluid
|
Filtered air
|
||||
|
Max operation pressure
|
10kg/cm2;
|
||||
|
Range of pressure (kg/ cm 2; ) |
4-7kg/cm2;
|
||||
|
Rotating direction
|
Turn right or Turn left
|
||||
|
Rotating angle
|
Standard angle 90°
|
||||
|
Acting type
|
Double acting
|
||||
