RSB Swing Cylinder Clamps Block Version Sensor Switch High Clamping Force

Certification
Good quality Pneumatic Swing Clamp for sales
Good quality Pneumatic Swing Clamp for sales
Awesome as always, a pleasure to deal with. Great source for great products. (Randall Bowman from USA BBQ Association)

—— Randall Bowman

 Been dealing with Jiazheng a long time. My customers are very happy with their products.Good people. 100%

—— John Hall

The company considerate after-sales service ,And try their best to meet the requirement of customers. We will be a long-term cooperation.

—— Tony Watchtel

I'm Online Chat Now

RSB Swing Cylinder Clamps Block Version Sensor Switch High Clamping Force

China RSB Swing Cylinder Clamps Block Version Sensor Switch High Clamping Force supplier
RSB Swing Cylinder Clamps Block Version Sensor Switch High Clamping Force supplier RSB Swing Cylinder Clamps Block Version Sensor Switch High Clamping Force supplier RSB Swing Cylinder Clamps Block Version Sensor Switch High Clamping Force supplier

Large Image :  RSB Swing Cylinder Clamps Block Version Sensor Switch High Clamping Force

Product Details:

Place of Origin: Dongguan China
Brand Name: Jiayan
Certification: ISO9001:2008
Model Number: RSB

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: poly bag and carton box
Delivery Time: 7 days
Payment Terms: L/C, T/T, Western Union,PayPal
Supply Ability: 500 sets per week
Contact Now
Detailed Product Description
Material: Aluminium Alloy Max.operating Pressure: 7 Kgf/cm2
Min.operating Pressure: 4 Kgf/cm2 Acting Type: Double Acting
Working Temperature: -10~+60°C Max Withstanding Pressure: 10kg/cm2
Rotating Direction: Clockwise Or Anti Clockwise Warranty: 1 Year (change New One For Free)

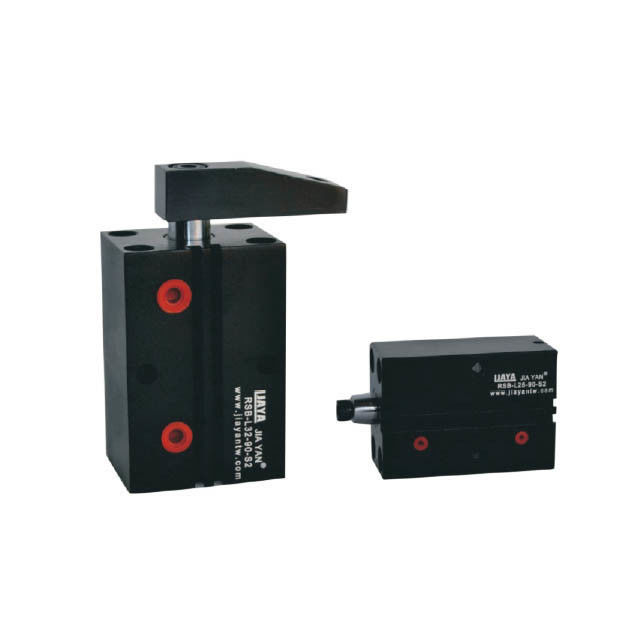

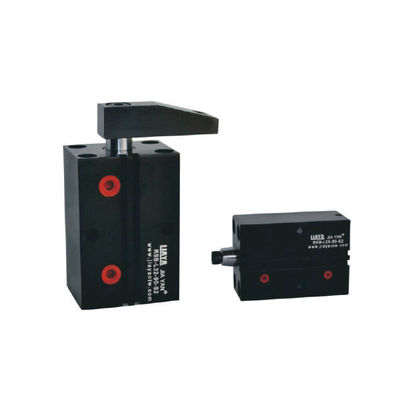

Air Powered Swing Clamp Block Version With Sensor Switch Compact Size High Clamping Force Clamp



Features:



1.Optimized design, compact structure, light weight, long life and high clamping force make it a perfect fixture.

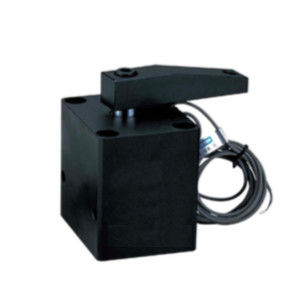

2.This product can be equipped with sensors

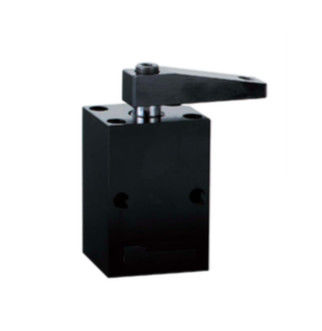

3.The top and bottom and side mounting can be selected according to customer's requirements.
4.When the length of the clamping arm needs to be increased , please do not exceed 1.5 times the original length.



Specification



Bore of Cylinder (mm) Φ25 Φ32 Φ40 Φ50 Φ63
Diameter of Pison Φ14 Φ16 Φ16 Φ20 Φ20
Swing stroke (mm) 13 16 15 17 15
Clamping stroke 14 15
Pressure area pull/push cm² 3.37/4.9 6.03/8.03 10.56/12.56 16.48/19.62 28.01/31.15

Theoretical Clamping

5kg/ cm²

16kgs 30kgs 50kgs 80kgs 140kgs
Fluid Filtered air
Working Temperature -10~+60°C
Max operation pressure 10kg/cm²
Range of pressure (kg/ cm²) 4-7kg/cm²
Rotating direction clockwise or anti clockwise
Rotating angle Standard angle90.(±2°), Optional angle0°,45°(±2),60°(±2°)
Acting type Double acting





Ordering Code

RSB-- L 40°x 90° S

        ③     ④ ⑤



Series RSB
Rotating direction clockwise or anti clockwise
Bore of cylinder Φ25mm;Φ32mm;Φ40mm;Φ50mm;Φ63mm
Standard angle 90° Standard angle90.(±2°), Optional angle0°,45°(±2),60°(±2°)
Sensor S1 :1pc,S2:2pcs



RSB Swing Cylinder Clamps Block Version Sensor Switch High Clamping Force
