Inductive Air Powered Swing Clamps Aluminium Alloy Simple Mounting Design

China Inductive Air Powered Swing Clamps Aluminium Alloy Simple Mounting Design supplier
Inductive Air Powered Swing Clamps Aluminium Alloy Simple Mounting Design supplier Inductive Air Powered Swing Clamps Aluminium Alloy Simple Mounting Design supplier

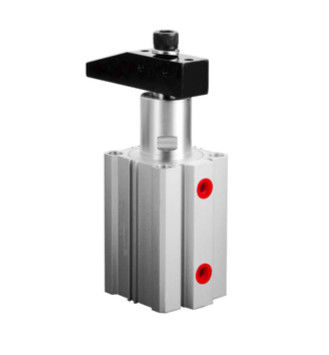

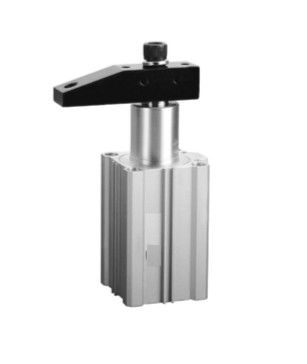

Large Image :  Inductive Air Powered Swing Clamps Aluminium Alloy Simple Mounting Design

Product Details:

Place of Origin: Dongguan China
Brand Name: Jiayan
Certification: ISO9001:2008
Model Number: PB

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: poly bag and carton box
Delivery Time: 7 days
Payment Terms: L/C, T/T, Western Union,Paypal
Supply Ability: 500 sets per week
Contact Now
Detailed Product Description
Material: Aluminium Alloy Max. Operating Pressure: 7 Kgf/cm2
Min. Operating Pressure: 4 Kgf/cm2 Acting Type: Double Acting
Rotating Direction: Clockwise Or Anti Clockwise Sensor Switch: Available
Warranty: 1 Year (change New One For Free)
High Light:

destaco pneumatic clamps

,

pneumatic air clamps

Inductive Air Powered Swing Clamp Mechanical Arm Clamp Conveyor Fixture Aluminium Alloy Simple Mounting



Features:



1.Optimized design , compact structure, light weight, long life span and high clamping force make it a perfect fixture

2.This product has long stroke and short stroke
3.Mounting by four screws
4.Applied to industrial automation, clamping of sheet metal, clamping of workpiece on conveyor belt and packing assembly line
5.When the length of the clamping arm need to be increased, do not exceed 15 times of the original length



Specification



Bore of Cylinder (mm) Φ25 short stroke

Φ25

long stroke

Φ32 short stroke Φ32 long stroke Φ40 short stroke Φ40 long stroke Φ50 short stroke Φ50 long stroke
Swing Stroke (mm) 9.5 9.5 15 15 15 15 19 19
Clamping stroke 10 20 10 20 10 20 20 50
Total stroke 9.5 29.5 25 35 25 35 39 69
Diameter of Pison Φ14 Φ16 Φ16 Φ20
Fluid Filtered air
Rotating direction Turn right R or Turn left L
Acting type Double acting
Theoretical Clamping(5 kg/cm²) 16kgs 30kgs 50kgs 80kgs
Pressure area pull/push cm²cm² 3.37/4.9 6.03/8.03 10.56/12.56 16.48/19.62



Ordering Code



PB--S 4 R

①  ② ③ ④



Series PB
stroke

Long stroke L

Short stroke S

Bore of cylinder Φ25mm;Φ32mm;Φ40mm;Φ50mm;Φ63mm
Rotating angle clockwise or anti clockwise



Inductive Air Powered Swing Clamps Aluminium Alloy Simple Mounting Design

Dimensions of the PB air powered swing clamp

Inductive Air Powered Swing Clamps Aluminium Alloy Simple Mounting Design

Contact Details
Dongguan Jiazheng Hydraulic Technology Co, LTD

Contact Person: sales

Tel: +8613145842235

Send your inquiry directly to us (0 / 3000)
