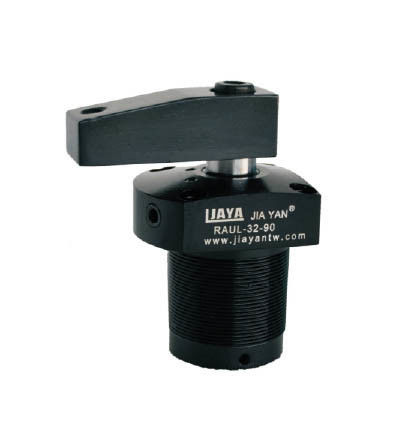

Aluminium Alloy Air Powered Swing Clamps Cylinder Assembly Fixture Upper Flange

China Aluminium Alloy Air Powered Swing Clamps Cylinder Assembly Fixture Upper Flange supplier

Large Image :  Aluminium Alloy Air Powered Swing Clamps Cylinder Assembly Fixture Upper Flange

Product Details:

Place of Origin: Dongguan China
Brand Name: Jiayan
Certification: ISO9001:2008
Model Number: RAU

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: poly bag and carton box
Delivery Time: 7 days
Payment Terms: L/C, T/T, Western Union,PayPal
Supply Ability: 500 sets per Week
Contact Now
Detailed Product Description
Material: Aluminium Alloy Max. Operating Pressure: 7 Kgf/cm2
Min.operating Pressure: 4 Kgf/cm2 Acting Type: Double Acting
Work Temperature: -10~+60°C Max. Withstanding Pressure: 10kg/cm2
Warranty: 1 Year (change New One For Free)
High Light:

pneumatic air clamps

,

destaco swing clamps



Air Powered Upper Flange Swing Clamp Cylinder Assembly Fixture Aluminium Alloy Cylinder



Features:



1.The bores of this cylinder are including Φ32-Φ63, the standard swing angle is 90°, and the customizable angle is 0°, 45°, 60°.
2.The total stroke of the swing clamp cylinder is equal to the sum of its swing stroke and clamping stroke.

3.The clamping arm are including single arm and double arm
4.The material of the cylinder is aluminum alloy.
5.When the length of the clamping arm needs to be increased, please do not exceed 1.5 times the original length.



Specification



Bore of Cylinder (mm) Φ32 Φ40 Φ50 Φ63
Diameter of Piston Φ20 Φ20 Φ20 Φ25
Swing stroke (mm) 14
Clamping stroke 15
Pressure area pull/push cm² 4.9/8.04 9.43/12.57 16.49/19.63 28.03/31.17

Theoretical Clamping

5kg/ cm²

25kgs 47kgs 85kgs 130kgs
Fluid Filtered air
Max operation pressure 10kg/cm²
Work Temperature -10~+60°C
Range of pressure (kg/ cm²) 4-7kg/cm²
Rotating direction

clockwise or anticlockwise

Rotating angle Standard angle 90°(±2°),optional angle 0°(±2°), 45°(±2°), 60° (±2°)
Acting type Double acting



Ordering Code



RAU L 40 x 90°  F

1       2  3      4     5

1 Series RAU(single arm),RAUD(double arms)
2 Rotating direction clockwise or anticlockwise
3 Bore of cylinder Φ25mm;Φ32mm;Φ40mm;Φ50mm;Φ63mm
4 Rotating angle

Standard angle 90°

optional angle 0°, 45°, 60°

5 with flow control



Single Side Swing Clamp                                                                Double Side Swing Clamp

Aluminium Alloy Air Powered Swing Clamps Cylinder Assembly Fixture Upper Flange

RAU Air Powered Swing Clamp Dimensions

Aluminium Alloy Air Powered Swing Clamps Cylinder Assembly Fixture Upper Flange



Advantages Air Powered Swing Clamp Cylinder:


1.The first advantage is that the swing clamp greatly reduces the time of clamping and unclamping of workpiece, because the air clamp relies on the air pressure to realize automatic clamping and unclamping of workpiece, the operator only needs the loading and unloading workpiece. According to the actual measurement, the time for automatic and semi-automatic clamping and unclamping of the workpiece is reduced by 90% to 95% compared with the manual fixture.
2.The second advantage is accurate positioning. The repeatability of clamping force ensures accurate positioning and clamping.
3.The third feature is to make full use of the space as high as possible, which improves the space utilization ratio of the fixture. Because the standard air pressure element structure is very compact, which ensures the overall compactness of the clamps, it can be realized that a set of clamping fixture can hold several workpieces at the same time, and at the same time, it can also be controlled according to the designed process to clamp and unclamp multiple workpieces in sequence.
