Threaded Destaco Swing Clamps Friendly Installation Upper Flanged Mounting

China Threaded Destaco Swing Clamps Friendly Installation Upper Flanged Mounting supplier

Large Image :  Threaded Destaco Swing Clamps Friendly Installation Upper Flanged Mounting

Product Details:

Place of Origin: Dongguan China
Brand Name: Jiayan
Certification: ISO9001:2008
Model Number: HAU

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: poly bag and carton box
Delivery Time: 7 days
Payment Terms: L/C, T/T, Western Union,PayPal
Supply Ability: 1000 pcs per week
Contact Now
Detailed Product Description
Material: Aluminum Alloy Bore Of Cylinder: 50 Mm
Diameter Of Piston: 20mm Power: Pneumatic
Structure: Piston Cylinder Maximum Stroke: 29mm
High Light:

destaco pneumatic clamps

,

destaco swing clamps



Air Rotary Swing Clamp Friendly Installation Threaded Body Upper Flanged Mounting



1.The bores of this kind of product are including 32,40,50 and 63;
2.Double acting type
3.The total stroke is equal to the sum of a swing stroke and a clamping stroke
4.Clamping type : single arm and double arms
5.The material of the cylinder is aluminum alloy
6.If you need to increase the length of the clamping arm ,please don't exceed 1.5
times of the original length

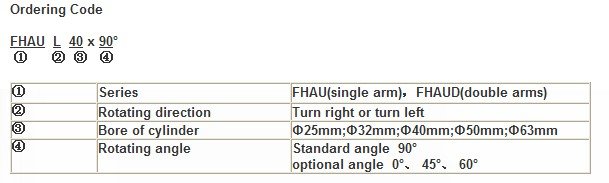

Specification

Bore of Cylinder (mm)
?32
?40
?50
?63
Bore of Pison
?20
?20
?20
?25
Swing stroke (mm)
14
Clamping stroke
15
Pressure area pull/push cm ?2;
4.9/8.04
9.43/12.57
16.49/19.63
28.03/31.17
Theoretical Clamping
5kg/ cm ?2;
25kgs
47kgs
85kgs
130kgs
Fluid
Filtered air
Max operation pressure
10kg/cm?2;
Range of pressure (kg/ cm ?2; )
4-7kg/cm?2;
Rotating directio
Turn right R or Turn left L
Rotating angle
Standard angle 90°(±2°),optional angle 0°(±2°) 45°(±2°) 60° (±2°)
Acting type
Double acting

Air Swing Clamp Cylinder

Tag:

destaco pneumatic clamps,

destaco swing clamps
