Material: | Aluminium Alloy | Acting Type: | Double Acting |
---|---|---|---|
Fluid: | Filtered Air | Max. Operation Pressure: | 10kg/cm2 |
Operation Pressure Range: | 1-7kg/cm2 | Warranty: | 1 Year (change New One For Free) |
High Light: | pneumatic link clamp,pneumatic lever clamp |

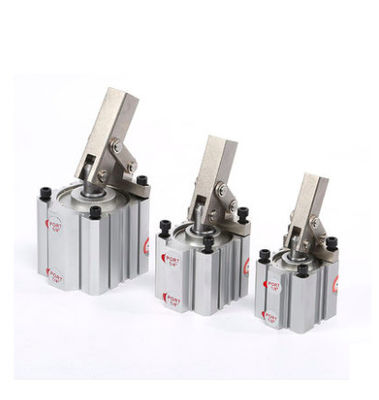

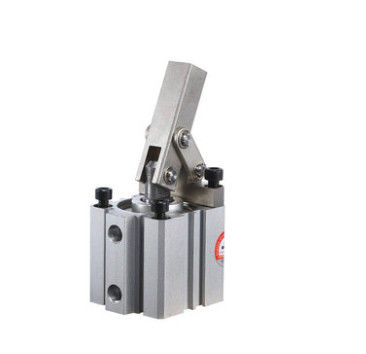

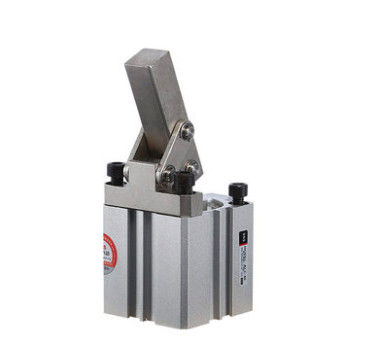

Pneumatic Link Clamp Cylinder Mass Production Machine Automatic Clamp Aluminium Alloy
Specifications
cylinder bore mm | 25 | 32 | 40 | 50 | 63 |
Piston diameter mm | 10 | 12 | 16 | 20 | 30 |
total stroke mm | 20 | 23 | 25 | 30 | 35 |
Pressure area cm2 | 4.91 | 8.04 | 12.57 | 19.63 | 31.17 |
clamping force 6kg/cm2 | 15 | 25 | 44 | 71 | 136 |
fluid | filtered air | ||||
Max operation pressure | 10kg/cm2 | ||||
operation pressure range | 1-7kg/cm2 | ||||
acting type | double acting |
nickel plated surface to resist rust

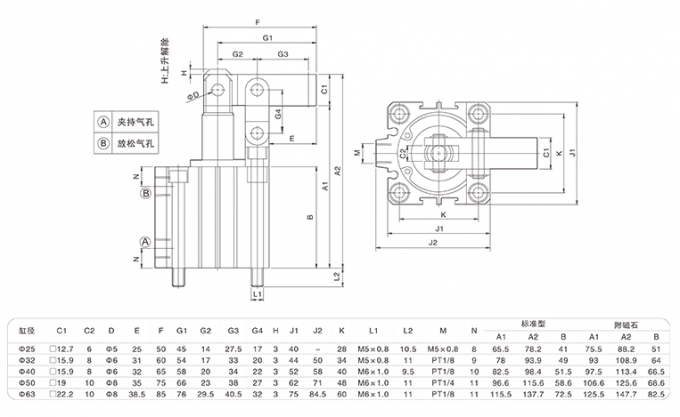

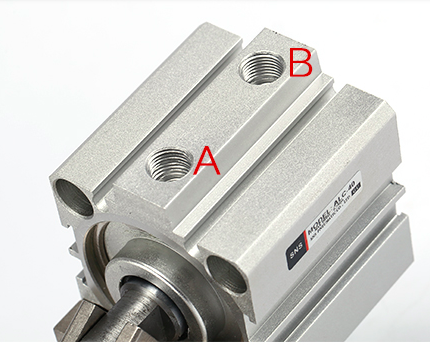

A: Unclamping port
B: clamping port

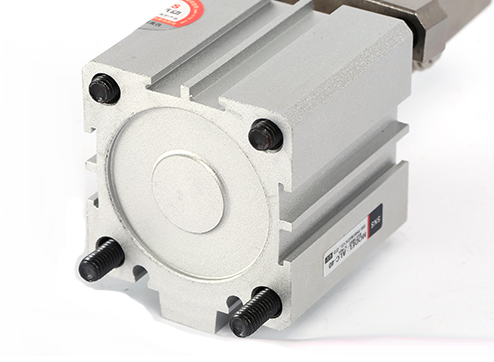

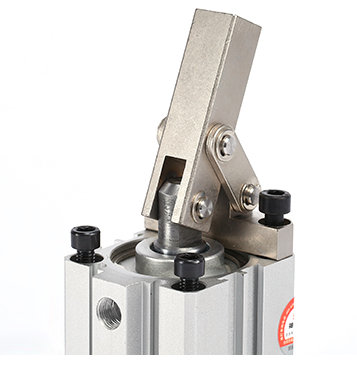

Simple mounting by four screws

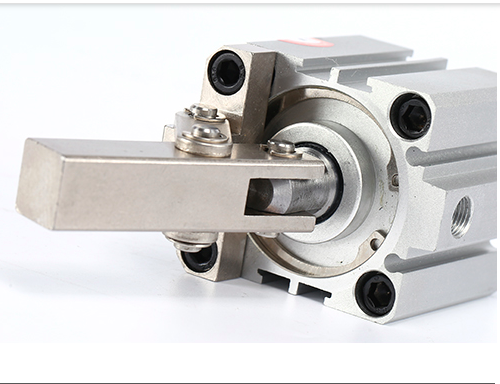

End cover : High tightness
