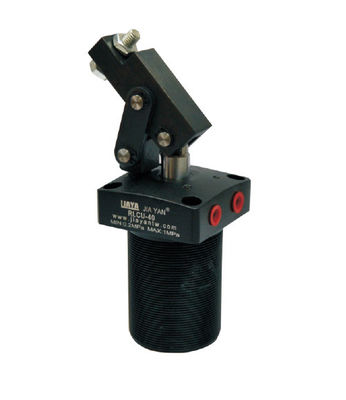

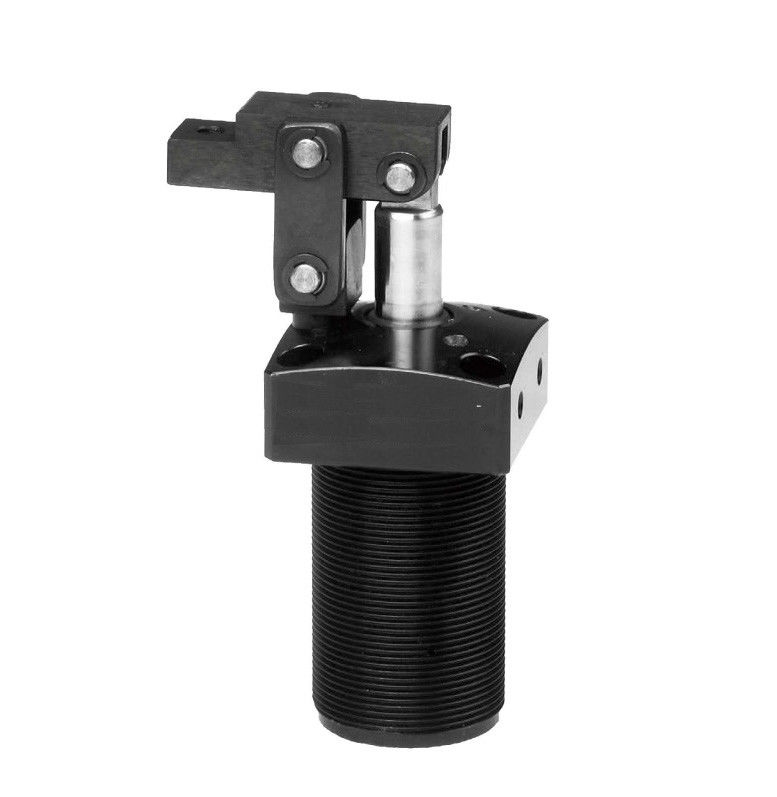

Pneumatic Lever Clamp Long Maintaining Time Welding Jig Heat Treated Surface

China Pneumatic Lever Clamp Long Maintaining Time Welding Jig Heat Treated Surface supplier
Pneumatic Lever Clamp Long Maintaining Time Welding Jig Heat Treated Surface supplier Pneumatic Lever Clamp Long Maintaining Time Welding Jig Heat Treated Surface supplier

Large Image :  Pneumatic Lever Clamp Long Maintaining Time Welding Jig Heat Treated Surface

Product Details:

Place of Origin: Dongguan China
Brand Name: Jiayan
Certification: ISO9001:2008
Model Number: CPLCU

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: inner poly bag and outer carton box
Delivery Time: 7 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 sets per week
Contact Now
Detailed Product Description
Material: Aluminium Alloy Max. Operating Pressure: 7 Kgf/cm2
Min. Operating Pressure: 3 Kgf/cm2 Acting Type: Double Acting
Work Temperature: -10~+60°C Max Clamping Force: 170kgs
Warranty: 1 Year (change New For Free)
High Light:

hydraulic link clamp

,

pneumatic lever clamp



Pneumatic Link Cylinder Long Pressure Maintaining Time Welding Jig Lever Clamp Cylinder Surface Heat-treated



FEATURES



Body material:Aluminum alloy 6061T6  with hard coat.

Piston: S45C, Hard Chromed.

Use high-quality seal to avoid leakage and keep long operation.
Leverage structure design, the fixture can clamp easily, perform efficiently.

Max. operating pressure: 7 kgf/cm2

Min. operating pressure: 3 kgf/cm2

Double acting

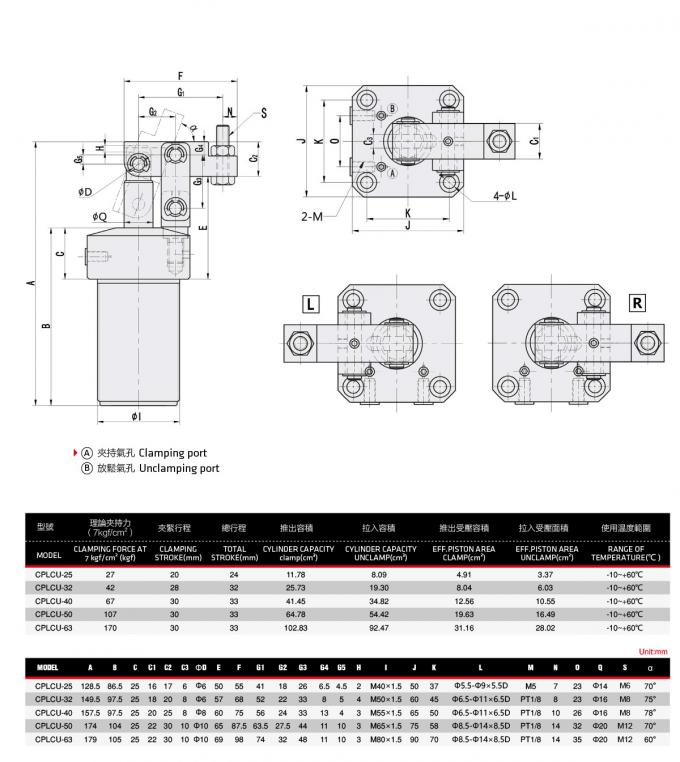

ORDERING INDICATION

CPLCU - 40 R - W



CPLCU

Series

CPLCU

40

Bore of Cylinder

Φ25 , Φ32 , Φ40 , Φ50 , Φ63

R

Lever arm direction

R,L,Blank



Pneumatic Lever Clamp Long Maintaining Time Welding Jig Heat Treated Surface
