Flexible Link Clamp Cylinder Wide Application Integrated Formed Cylinder Body

China Flexible Link Clamp Cylinder Wide Application Integrated Formed Cylinder Body supplier

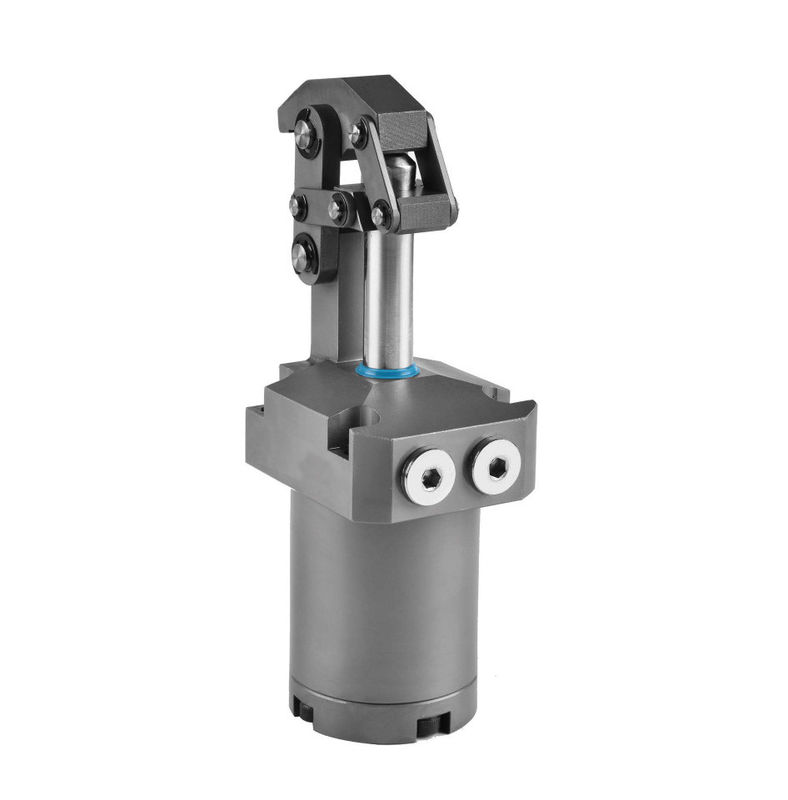

Large Image :  Flexible Link Clamp Cylinder Wide Application Integrated Formed Cylinder Body

Product Details:

Place of Origin: Dongguan China
Brand Name: Jiayan
Certification: ISO9001:2008
Model Number: CLF5H

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: inner poly bag and outer carton box
Delivery Time: 7 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 400 sets per week
Contact Now
Detailed Product Description
Material: Carbon Steel Max. Operating Pressure: 70 Kgf/cm2
Min. Operating Pressure: 10 Kgf/cm2 Work Temperature: -10~+70°C
Max Clamping Force: 1136 Kgs Max Total Stroke: 50 Mm
Warranty: 1 Year (change New For Free)
High Light:

hydraulic link clamp

,

pneumatic link clamp



Flexible Link Clamp Cylinder Friendly Operation Wide Application on Work Fixture Integrally Formed Cylinder Body



Features:



1.For this series of products, the connecting rod mechanism is adopted.

2.During the unclamping situation, the clamping arm can be pulled to a position lower than the clamping surface, which reduces the interference on the loading and unloading of the workpiece, so the operation is convenient,

3.The cylinder body is integrally formed.
4.The movement track of the product is very small, and the clamping position where can't be touched by the traditional swing clamp/link cylinder can be clamped by this type link clamp cylinder, so the influence to the surrounding machinery and equipment can be reduced.

5.Save working space on work fixture.
6.The product is designed with a special dust-proof performance to prevent the penetration of cutting chip and coolant,  so it can be used in harsh environments.



Max. operating pressure: 70 kgf/cm2

Min. operating pressure: 10 kgf/cm2



Order Code :

CLF5H – 32 G



CLF5H

Series

CLF5H

32

Bore of Cylinder

Φ 25 , Φ 32 , Φ 40 , Φ 50

G

Piping Type

Blank: line type

G: Manifold type
