Product Details:
Payment & Shipping Terms:
|
Material: | Carbon Steel | Max. Operating Pressure: | 70 Kgf/cm2 |
---|---|---|---|
Min. Operating Pressure: | 10 Kgf/cm2 | Max Clamping Force: | 3094kgs |
Work Temperature: | -10~+70°C | Max Stroke: | 49mm |
Warranty: | 1 Year ( Change New For Free) | ||
High Light: | pneumatic link clamp,pneumatic lever clamp |

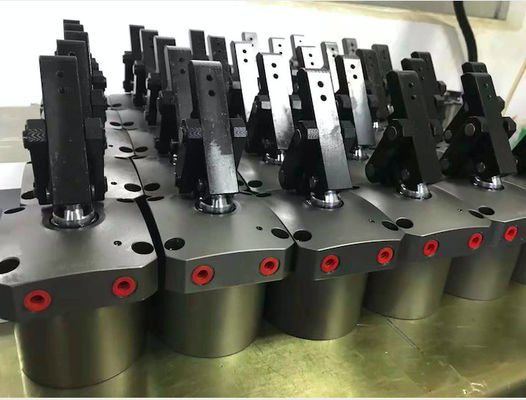

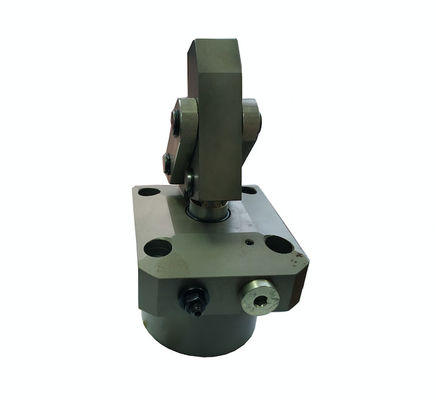

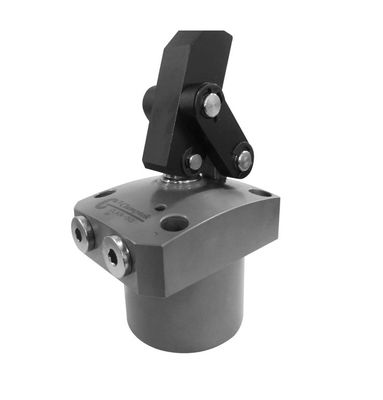

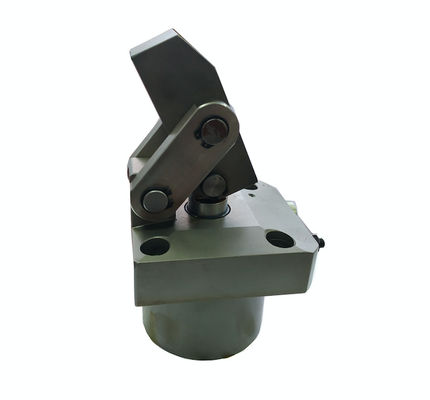

Hydraulic Link Clamp Cylinder Work Fixture Lever Clamp Strong Structure Cylinder Body Dust-proof Design
FEATURES:
Most optimal design to increase the clamping force over traditional clamp cylinder.
Integrated structure to make cylinder body more stronger
Adopt dust-proof design to guarantee high leakproofness
Upper flange to save more mounting space
Max. operating pressure: 70 kgf/cm2
Min. operating pressure:10 kgf/cm2
NOTE:
A flow control valve is recommended
Customized products are available,
welcome to contact us.

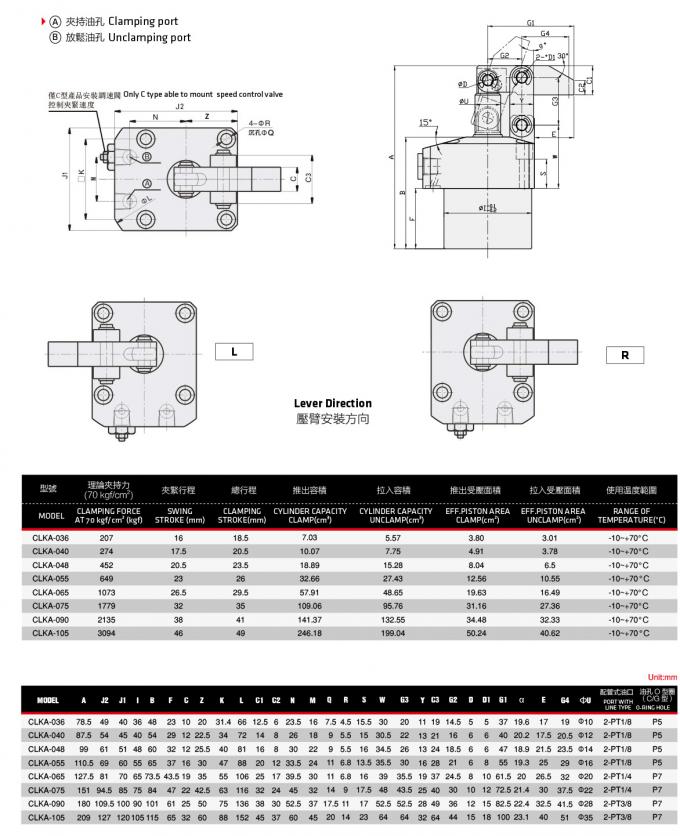

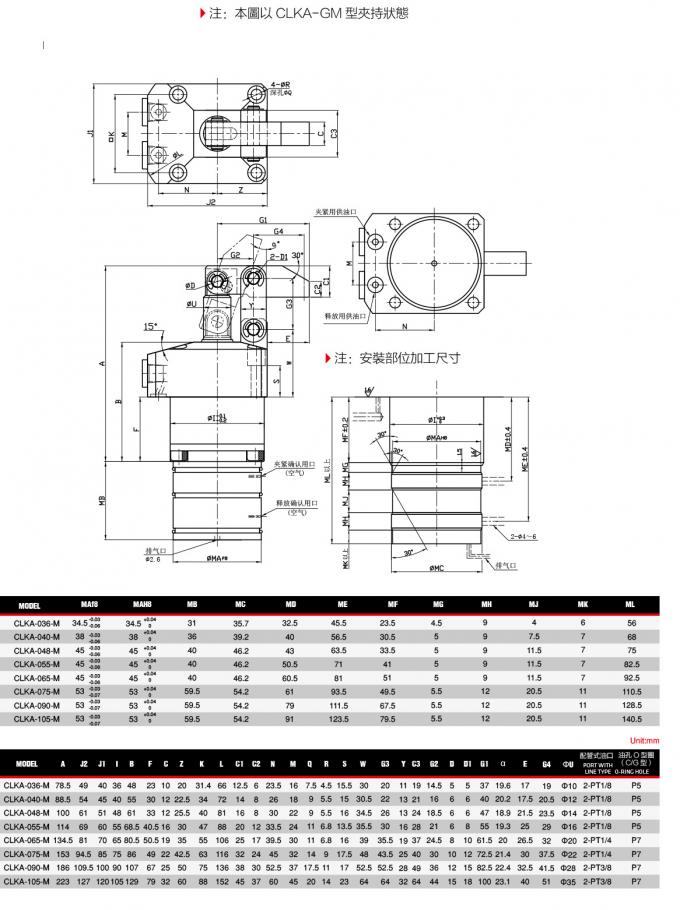

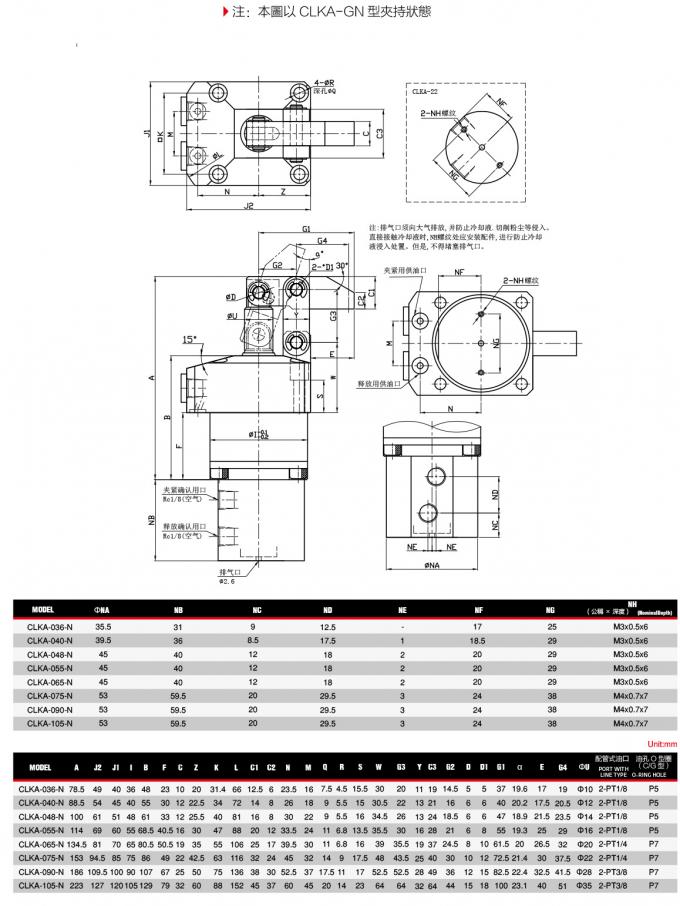

ORDER CODE
CLKA – 32 C L
CLKA |
Series |
CLKA |
32 |
Dia of cylinder body | 36: 40:48:48 ;055; 65:;75:;90:105 |
C | Piping Type |
Blank: line type G: Manifold type C: manifold with flow type |
L |
Clamping Arm direction |
Blank: standard L:Left R:Right |
