Upper Flange Air Powered Swing Clamps Welding Fixture Simple Mounting Feature

: Large Image : Upper Flange Air Powered Swing Clamps Welding Fixture Simple Mounting Feature

Product Details:

Place of Origin:	Dongguan China
Brand Name:	Jiayan
Certification:	ISO9001:2008
Model Number:	RSU

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	poly bag and carton box
Delivery Time:	7 days
Payment Terms:	L/C, T/T, Western Union,Paypal
Supply Ability:	500 sets per week

Contact Now

Detailed Product Description

Material:	Aluminium Alloy	Max. Operating Pressure:	7 Kgf/cm2
Min. Operating Pressure:	4 Kgf/cm2	Acting Type:	Double Acting
Rotating Direction:	Clockwise Or Anticlockwise	Max Withstanding Pressure:	10kg/cm2
Warranty:	1 Year ( Change New For Free)
High Light:	pneumatic air clamps , destaco swing clamps

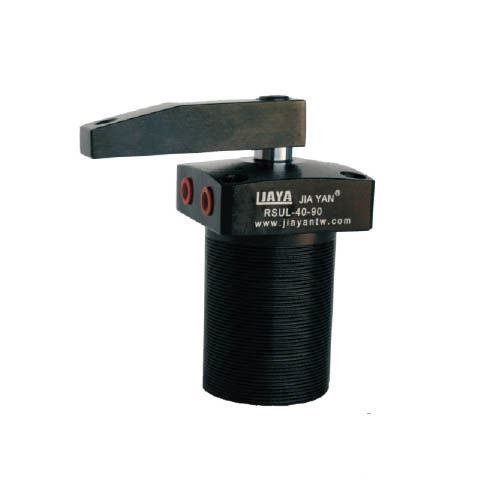

Welding Fixture Upper Flange Air Powered Swing Clamp Simple Mounting Aluminium Alloy Material

Features:

1.This swing clamp maily works as a fixture and all compressed air enters and exits through the flange hole.
2.The air cylinder is made of aluminum alloy and blackened. The heat treatment surface increases the wear resistance.
3.The upper surface of the flange has four screw holes for mounting.
4.Please connect the piston with fixture by round nut
5. When the length of the clamping arm needs to be increased , please do not exceed 1.5 times the original length.

Specifications:

Type	RSU-25	RSU-32	RSU-40	RSU-50	RSU-63
Bore of cylinder	Φ25	Φ32	Φ40	Φ50	Φ63
Dia. of Pistion	Φ14	Φ16	Φ16	Φ20	Φ20
Swing Stroke (mm)	13	16	15	17	15
Clamping Stroke	14	14	15	15	15
Press Area pull/push	3.4/4.91	6.04/8.04	10.56/12.57	16.49/19.63	28.03/31.17
Theoretical Clamping Force 5kg/cm²	16kgs	30kgs	50kgs	85kgs	140kgs
Fluid	Filtered Air
Range of Temperature	-10~+60°C
Max. withstanding pressure	10kg/cm2
Normal Operation Pressure	4-7kg/cm²
Rotating Direction	Turn Right or Turn Left
Rotating Angle	Standard angle90°(±2°),Optinal angle 0°(±2°), 45°(±2°), 60° (±2°)
Acting Type	Double Acting
Mounting Type	Upper Flange
