Product Details:
Payment & Shipping Terms:
|
Material: | Carbon Steel | Max.Operation Pressure: | 7.3 Kgf/cm2 For Pneumatic Type |
---|---|---|---|
Media: | Oil Or Air | Warranty: | 1 Year (change New For Free) |
High Light: | hydraulic work support,pneumatic work support |

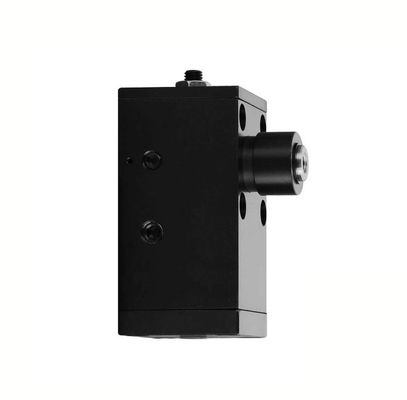

Pneumatic Hydraulic Work Support Clamp Dual Media Driven Support Cylinder No Leakage
1. This work support can be driven by oil or air.
2. Big clamping or supporting force
3. Widely application
Ordering Code:
SP - AH 18 R A
1 2 3 4 5
1 |
Series |
2 | AH: Pneumatic-hydraulic type |
3 |
Diameter of the extended piston rod |
4 |
R : Piston Rod at right side L: Piston Rod at left side |
5 |
A:Spring extended piston B:Hydraulic extended piston |
