Material: | Heat -treated Carbon Steel | Max. Operating Pressure: | 70 Kgf/cm2 |
---|---|---|---|
Mix. Operating Pressure: | 20 Kgf/cm2 | Acting Type: | Single Acting |
Max.Clamping Force: | 3000 Kgs | Warranty: | 1 Year (change New One For Free) |
High Light: | hydraulic work support,portable work support |

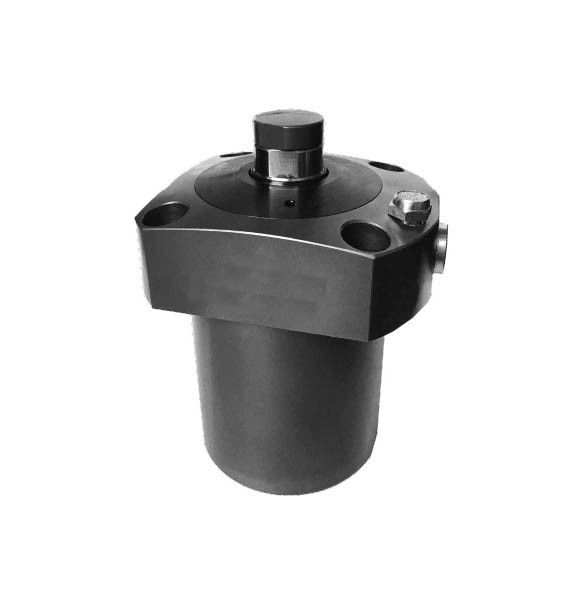

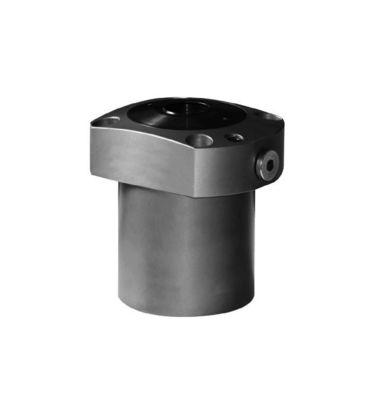

Upper Flange Hydraulic Work Support Clamp Compact Structure Harsh Environment No Piston Supporting Cylinder
Features:
1.This series of products have compact structure, reasonable design, long service life and stable performance under 20-70kgf/cm2 working conditions.
2.The strength of the the piston rod can be adjusted according to the thickness of the workpiece.
3.Piston rod extending contact force is small, within 0.4-0.8kg range, so this work support is suitable for various types of workpieces.
4.This product has strong supporting force and can completely eliminate the vibration of workpiece loading and cutting.
5.The installation size is compatible with the products currently sold in the market .
6.Max. operating pressure: 70 kgf/cm2
Mix. operating pressure: 20 kgf/cm2
7. Acting Type: Single acting
Ordering Code:
CSF - 040 B L- G
1 2 3 4 5
1 |
Series |
CSF |
2 | Bores of cylinder |
040=Φ40, 048=Φ48, 055=Φ50 065=Φ65, 075=Φ75, 090=Φ90 |
3 |
A: Spring extended piston D: No hollow piston rod |
|
4 | L |
Low pressure |
5 |
G: With G thread plug |

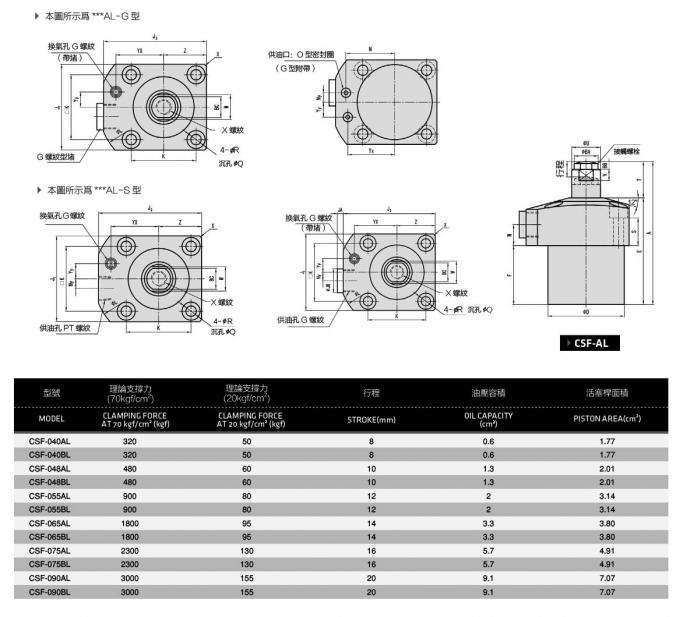

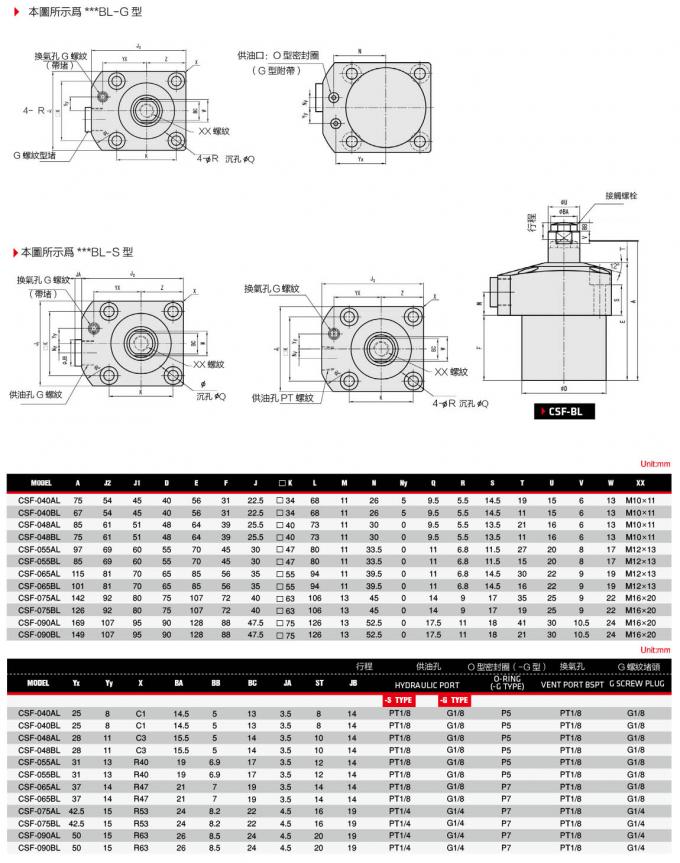

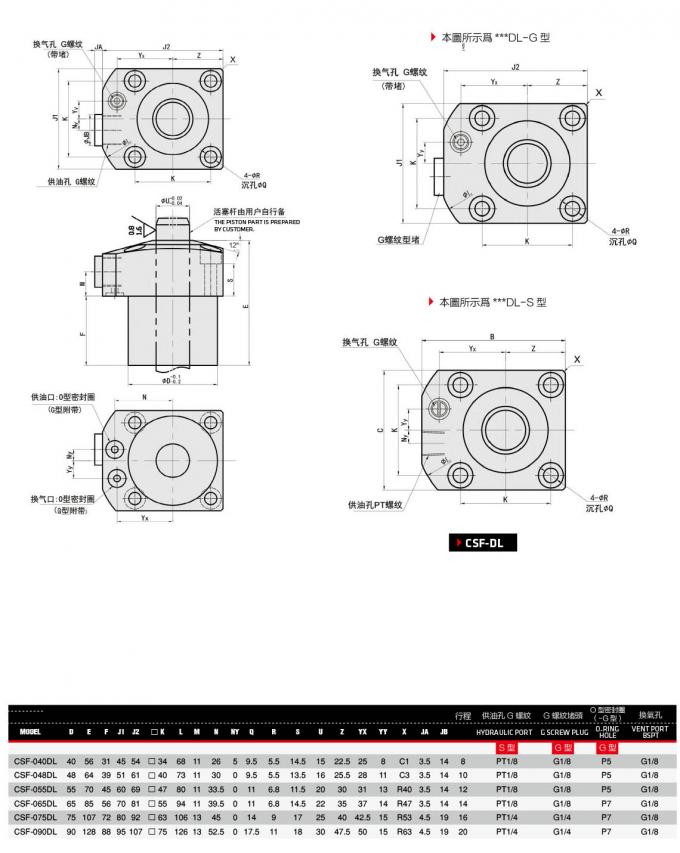

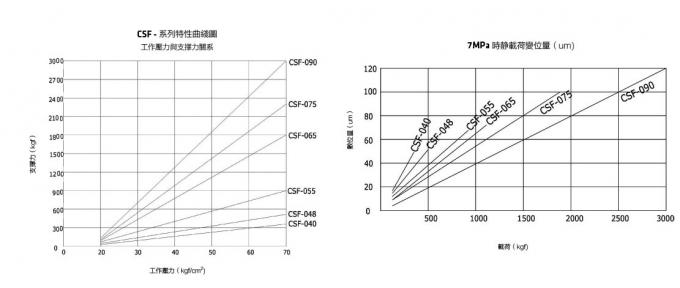

Curve Chart of Operation Pressure and Surpport Force
