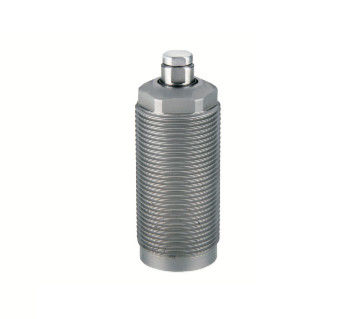

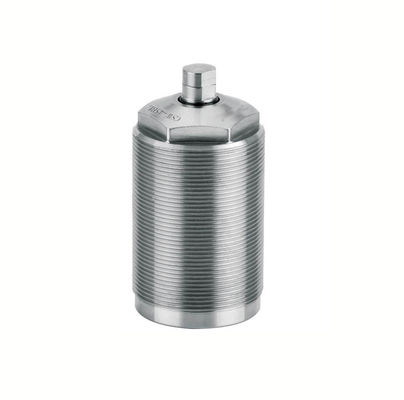

Pneumatic Work Support Cylinder Stable Performance For Thin Workpiece

China Pneumatic Work Support Cylinder Stable Performance For Thin Workpiece supplier
Pneumatic Work Support Cylinder Stable Performance For Thin Workpiece supplier Pneumatic Work Support Cylinder Stable Performance For Thin Workpiece supplier

Large Image :  Pneumatic Work Support Cylinder Stable Performance For Thin Workpiece

Product Details:

Place of Origin: Dongguan China
Brand Name: Jiayan
Certification: ISO9001:2008
Model Number: CSW

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: poly bag and carton box
Delivery Time: 7 days
Payment Terms: L/C, T/T, Western Union,PayPal
Supply Ability: 400 sets per week
Contact Now
Detailed Product Description
Material: Carbon Steel Max. Operating Pressure: 10 Kgf/cm2
Mix. Operating Pressure: 4 Kgf/cm2 Acting Type: Single Acting
Max Clamping Force: 150 Kgs Warranty: 1 Year (change New One For Free)
High Light:

hydraulic work support

,

pneumatic work support



Pneumatic Work Support Cylinder Stable Performance Special for the Thin Workpieces



Prodcut Features:



1.The performance is stable under 4~10kgf/cm2 working conditions and the maximum pressure withstanding is 10kgf/cm2.

2.Depending on the thickness of the workpiece, the piston rod can be replaced.

3.The piston rod has small extension contact force in 0.2-0.6kgf range, so this work support is especially suitable for thin workpiece.

4.Max. operating pressure: 10 kgf/cm2

   Mix. operating pressure: 4 kgf/cm2

5. Single acting

6. Type A: Underward Clamping Support. At the initial position, the support head is at the uppermost end under the action of the internal spring. When working, the workpiece is pressed down by gravity of workpiece to make support head synchronously downward. When the workpiece is placed securely, the support head stop going down. After the air pressure is applied, the support cylinder is locked to provide support for the workpiece and stop running.


Type B: Upward Clamping Support. At the initial position, the support head is at the lowermost end. After the workpiece is placed, the support cylinder is pressurized to extend the support head. When the workpiece is touched by the support head, the support head stops immediately and the support cylidner is pressurized to be locked. Then the support head provides support and stops at the current position.



Note:

Don't place eccentric load and overload on support head.

Don't rotate the piston rod during the locking state.



Ordering Code:

CSW - 26 A L

1          2  3 4

1

Series

CSW

2 Bores of Cylinder

M26x1.5

M30x1.5

M36x1.5

M45x1.5

3

Type

A: type A

B: type B

4

L

L: Low pressure



Curve Chart of Opertion Pressure and Support Force



Pneumatic Work Support Cylinder Stable Performance For Thin Workpiece



Pneumatic Work Support Cylinder Stable Performance For Thin Workpiece



The support cylinder/ work support is a kind of jig components, which is a high technical work actuator. It is generally used on a fixture product that meets the requirements of higher automation. It is mainly used to resist and avoid vibration and deformation of the workpiece against the cutting force during machining and to avoid machining accuracy change of the workpiece. Support cylinder has low-pressure self-locking function. Corrosive materials prevent corrosion of the cylinder by coolant and working environment. Because the support cylinder is mainly used to prevent the deformation of the workpiece during the process, it is called "support cylinder" in the industry.
