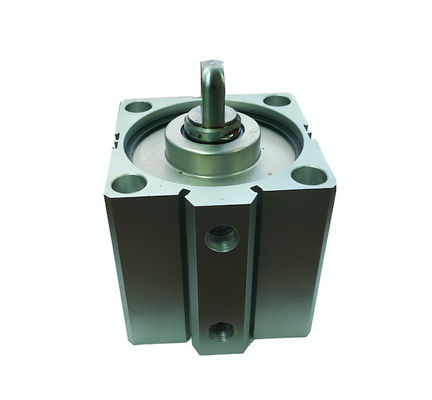

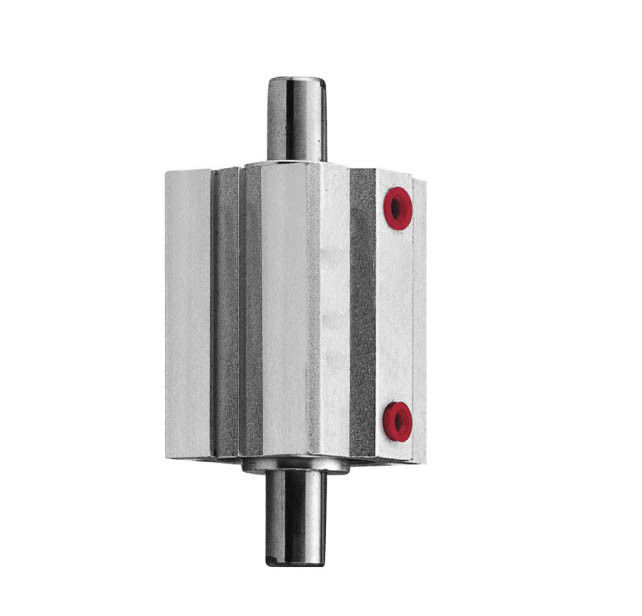

Compact Pneumatic Double Rod Air Cylinder Automatic Inspection Machine

China Compact Pneumatic Double Rod Air Cylinder Automatic Inspection Machine supplier
Compact Pneumatic Double Rod Air Cylinder Automatic Inspection Machine supplier Compact Pneumatic Double Rod Air Cylinder Automatic Inspection Machine supplier

Large Image :  Compact Pneumatic Double Rod Air Cylinder Automatic Inspection Machine

Product Details:

Place of Origin: Dongguan China
Brand Name: Jiayan
Certification: ISO9001:2008
Model Number: SDADS

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: plastic bag and carton box
Delivery Time: 7 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 sets per week
Contact Now
Detailed Product Description
Material: Aluminium Alloy Max Input Pressure: 10 Kgf/cm2
Min. Input Pressure: 1 Kgf/cm2 Acting Type: Double Or Single Acting
Bore Of Cylinder: 12,16,20,25,32,40,50,63,80,100 Inductive Switch: Available
Warranty: 1 Year (change New For Free)
High Light:

aluminum pneumatic cylinders

,

long stroke pneumatic cylinders



Compact Pneumatic Cylinder Automatic Inspection Machine Double Rod Air Cylinder



Features:



1. Max Bore of cylinder: Φ100

2. Max Stroke: 100 mm

3. Range of temperature(°C ) :-10 ~ +60 °C

4.Max. operating pressure: 10 kgf/cm2

   Min. operating pressure: 1 kgf/cm2

5. Double acting

7. Air Cylinder Application industry:

    Plastic machinery / conveyor systems / automotive industry welding assembly / automatic component installation / printed circuit board / installation system complete production / automated functional testing / complex conveyor system / tire production system or custom special machine / robot and automation / industrial packaging Machine, intelligent packaging and filling / film cutting machine.



NOTE

Stroke abobe 50 mm needs to customised
