Heavy Duty Pneumatic Cylinder For Automatic Machine High Strength Structure

China Heavy Duty Pneumatic Cylinder For Automatic Machine High Strength Structure supplier

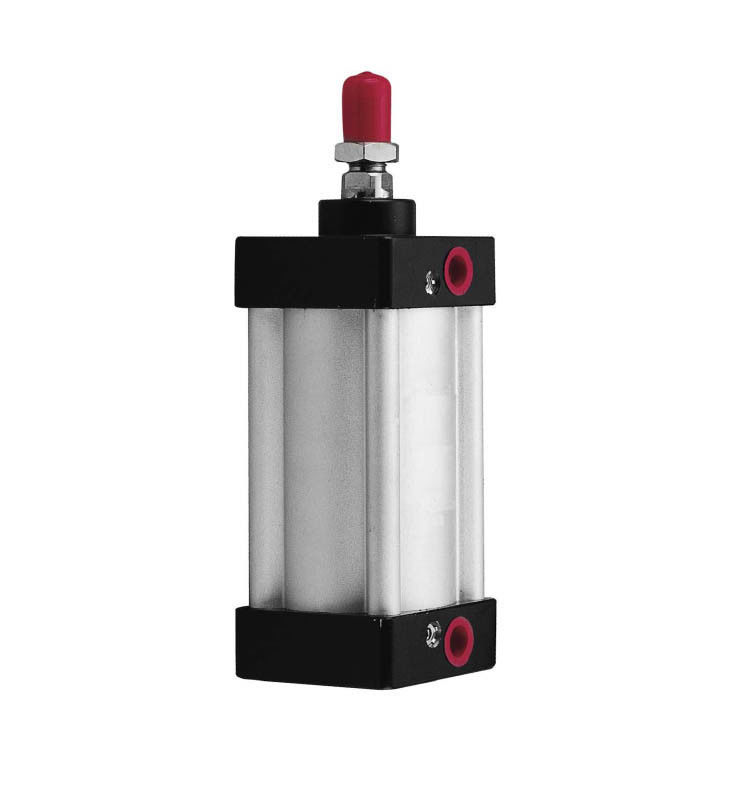

Large Image :  Heavy Duty Pneumatic Cylinder For Automatic Machine High Strength Structure

Product Details:

Place of Origin: Dongguan China
Brand Name: Jiayan
Certification: ISO9001:2008
Model Number: DEB

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: plastic bag and carton box
Delivery Time: 7 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 sets per week
Contact Now
Detailed Product Description
Material: Aluminium Alloy Max.Operation Pressure: 10kgf/cm2
Min. Operation Pressure: 1 Kgf/cm2 Range Of Temperature(°C ): -10 ~ +60 °C
Bore Of Cylinder: Φ32 Φ40 Φ50 Φ63 Φ80 Φ100 Warranty: 1 Year (Change New For Free)
High Light:

aluminum pneumatic cylinders

,

long stroke pneumatic cylinders



Aluminium Alloy Air Cylinder Heavy Automatic Machine Pneumatic Cylinder High Strength Structure



Production Specifications:



Bore of Cylinder :  Φ32 Φ40 Φ50 Φ63 Φ80 Φ100

Stroke(mm):  25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500

Range of temperature(°C ) -10 ~ +60 °C



Air Cylinder Operation

Max. operating pressure: 10kgf/cm2

Min. operating pressure: 1 kgf/cm2



DOUBLE ACTING CYLINDERS Type Introduction

1.Double acting-single end rod type  (Code: DEB)

2.Double acting-single end rod type(piston with magnet)   (Code:DEB...M)

3.Double acting-double end rod type ( Code:DED)

4.Double acting-double end rod type(piston with magnet)   (Code:DED...M)

5.Adjustable stroke cylinder(adjustable stroke:A:25mm,B:50mm)
 (Code: DEN...N...A  ;  DEN...N...B)

6.Adjustable stroke cylinder (piston with magnet) (adjustable stroke:A:25mm,B:50mm)
(DEN...M...A ; DEN...M...B)



ORDERING INDICATION

DEN - 50 N 125 B FA-Y S x 2

1          2   3   4   5   6      7    8



DEN

Series

DEB / DED / DEN

50

Bore of Cylinder Φ32 ,Φ40 ,Φ50,Φ63 Φ80 , Φ100

N

Magnet

Nil: No magnet  ;

D: With magnet

125

Stroke

25 , 50 , 75 , 100 , 125 , 150 , 175 , 200 , 225 , 300 , 350, 400 , 450 , 500

B

Adjustable stroke

A:Adjustable 25mm  ;

B:Adjustable 50mm

C: Adjustable 75mm

FA-Y

Accessories

Heavy Duty Pneumatic Cylinder For Automatic Machine High Strength Structure
S

Sensor switch


2

Quantity

1:1pcs 2:2pcs



Heavy Duty Pneumatic Cylinder For Automatic Machine High Strength Structure





DEB Pneumatic Cylinder Mounting Accessories size as below





Heavy Duty Pneumatic Cylinder For Automatic Machine High Strength Structure
