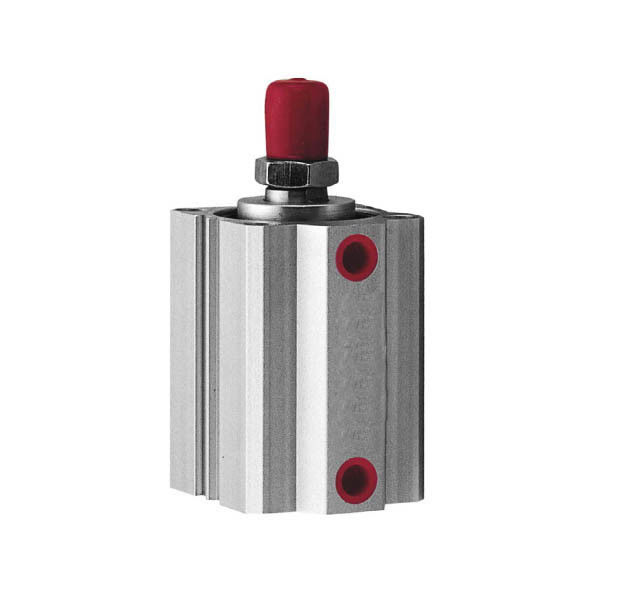

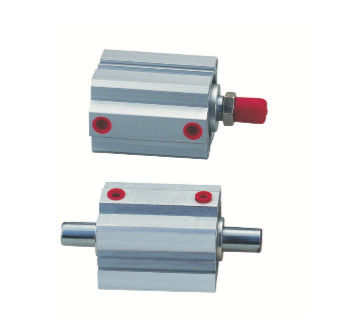

Magnetic Induction Aluminum Air Cylinder / Single Acting Pneumatic Cylinder

China Magnetic Induction Aluminum Air Cylinder / Single Acting Pneumatic Cylinder supplier
Magnetic Induction Aluminum Air Cylinder / Single Acting Pneumatic Cylinder supplier Magnetic Induction Aluminum Air Cylinder / Single Acting Pneumatic Cylinder supplier

Large Image :  Magnetic Induction Aluminum Air Cylinder / Single Acting Pneumatic Cylinder

Product Details:

Place of Origin: Dongguan China
Brand Name: Jiayan
Certification: ISO9001:2008
Model Number: SDAS

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: poly bag and outer carton box
Delivery Time: 7 days
Payment Terms: L/C, T/T, Western Union
Contact Now
Detailed Product Description
Material: Aluminium Alloy Bore Of Cylinder: 12,16,20,25,32,40,50,63,80,100
Work Temperature: -10 ~ +60 °C Max: 100mm
Acting Type: Double Acting Or Single Acting Rod End: Single Rod End Or Double Rod End
Inductive Switch: Optional Warranty: 1 Year (change New One For Free)
High Light:

aluminum pneumatic cylinders

,

long stroke pneumatic cylinders



Air Cylinder Magnetic Induction Pneumatic Cylinder Simple Mounting Automatic Production Line Clamps



Features:

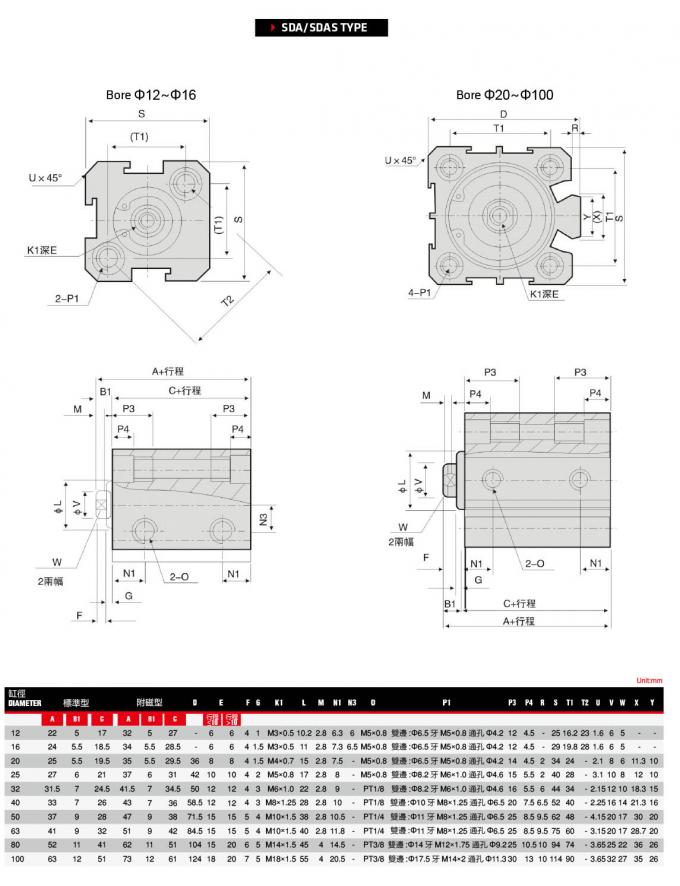

Bore of Cylinder (mm) Φ12 Φ16 Φ20 Φ25 Φ32 Φ40 Φ50 Φ63 Φ80 Φ100
Stroke(mm) 5 ,10 ,15 ,20 ,25 ,30 ,35 ,40 ,45 ,50
Range of stroke(mm) Max:60 Max:100 Max:100
Range of temperature (°C ) -10 ~ +60 °C





Max. operating pressure: 10 kgf/cm2

Min. operating pressure: 1 kgf/cm2

Double acting



Note:

Stroke above 50 mm needs to be customized.



Magnetic Induction Aluminum Air Cylinder / Single Acting Pneumatic Cylinder

Magnetic Induction Aluminum Air Cylinder / Single Acting Pneumatic Cylinder

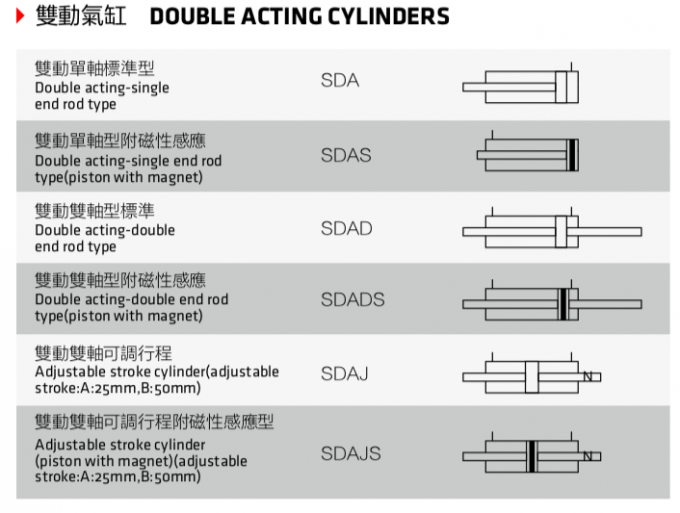

Order Code:

SDA - D S - 20 - 10 -  F

1         2  3    4     5     6



1 Series SDA/SOAD/SDAJ
2 Piston rod

Nil: Single end rod

D: Double end rod

J: Double rod of adjustable stroke rod

3 Magnet

Nil: No magnet

S: With magnet

4 Bore of Cylinder Φ12 , Φ16 , Φ20 , Φ25 , Φ32 , Φ40 , Φ50 , Φ63 , Φ80 , Φ100
5 Stroke 5 , 10 , 15 , 20, 25 , 30 , 35 , 40, 45, 50

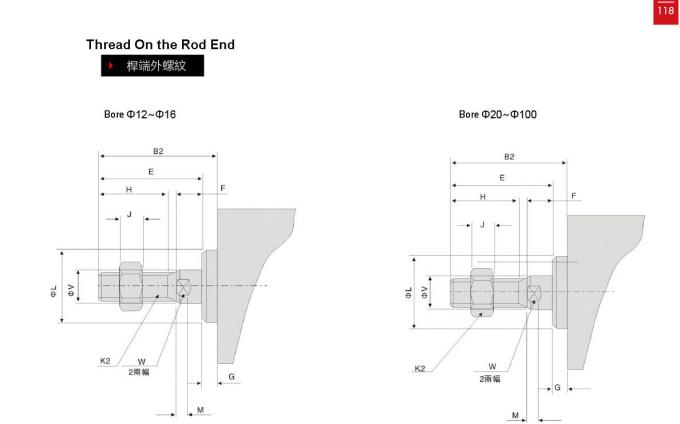

6 Rod end Type

F:Female

M: Male



Magnetic Induction Aluminum Air Cylinder / Single Acting Pneumatic Cylinder

Magnetic Induction Aluminum Air Cylinder / Single Acting Pneumatic Cylinder
