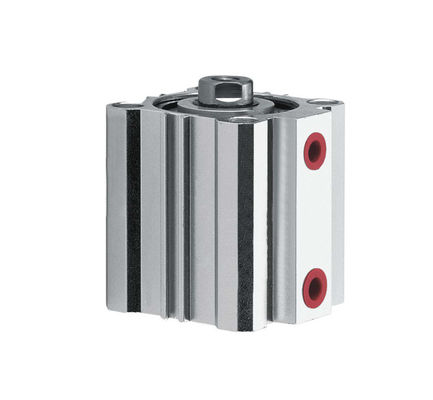

Long Stroke Pneumatic Cylinders Thin Type Max Operation Force 10 Kgf/Cm2

China Long Stroke Pneumatic Cylinders Thin Type Max Operation Force 10 Kgf/Cm2 supplier
Long Stroke Pneumatic Cylinders Thin Type Max Operation Force 10 Kgf/Cm2 supplier Long Stroke Pneumatic Cylinders Thin Type Max Operation Force 10 Kgf/Cm2 supplier Long Stroke Pneumatic Cylinders Thin Type Max Operation Force 10 Kgf/Cm2 supplier Long Stroke Pneumatic Cylinders Thin Type Max Operation Force 10 Kgf/Cm2 supplier

Large Image :  Long Stroke Pneumatic Cylinders Thin Type Max Operation Force 10 Kgf/Cm2

Product Details:

Place of Origin: Dongguan China
Brand Name: Jiayan
Certification: ISO9001:2008
Model Number: UCQ2

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: inner poly bag and outer carton box
Delivery Time: 7 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 sets per week
Contact Now
Detailed Product Description
Material: Aluminum Alloy Max. Operating Pressure: 10 Kgf/cm2
Min. Operating Pressure: 1 Kgf/cm2 Range Of Temperature: -10 ~ +60 °C
Range Of Stroke(mm): Max:50 Magnetic Piston: Optional
High Light:

aluminum pneumatic cylinders

,

compact pneumatic cylinder



Thin Type Pneumatic Cylinder Automatic Machine Aluminum Alloy Air Cylinder Max Operation Force 10 kgf/cm2



Feature and Specifications:



Cylinder inside diameter(mm) Φ12 Φ16 Φ20 Φ25 Φ32 Φ40 Φ50 Φ63 Φ80 Φ100
Stroke(mm) 5 ,10 ,15 ,20 ,25 ,30 ,35 ,40 ,45 ,50
Range of stroke(mm) Max:30 Max:50
Range of temperature (°C ) -10 ~ +60 °C





Max. operating pressure: 10 kgf/cm2

Min. operating pressure: 1 kgf/cm2



NOTE

Magnetic piston(optional).
Stroke in more than 50 mm belongs to special custom.

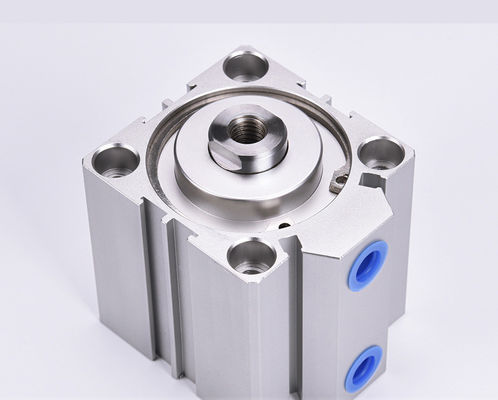

Long Stroke Pneumatic Cylinders Thin Type Max Operation Force 10 Kgf/Cm2

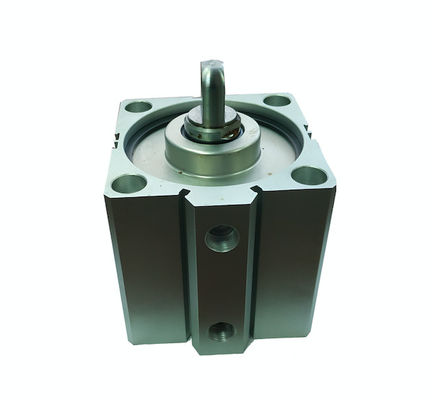

Long Stroke Pneumatic Cylinders Thin Type Max Operation Force 10 Kgf/Cm2

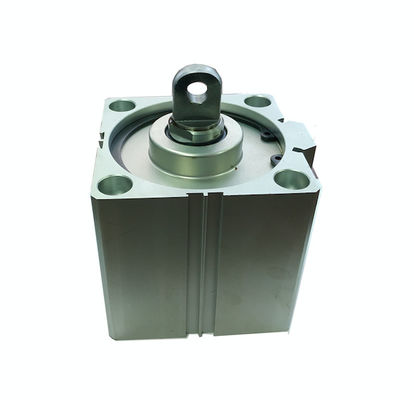

Long Stroke Pneumatic Cylinders Thin Type Max Operation Force 10 Kgf/Cm2
