Product Details:
Payment & Shipping Terms:
|
| Material: | Aluminium Alloy | Max. Operating Pressure:: | 10 Kgf/cm2 |
|---|---|---|---|
| Min. Operating Pressure: | 1 Kgf/cm2 | Acting Type: | Double Acting |
| Max Stroke: | 100 | Max Bore Of Cylinder: | 100 |
| Range Of Temperature(°C ): | -10 ~ +60 °C | Warranty: | 1 Year (change New For Free) |
| High Light: | aluminum pneumatic cylinders,long stroke pneumatic cylinders |
||

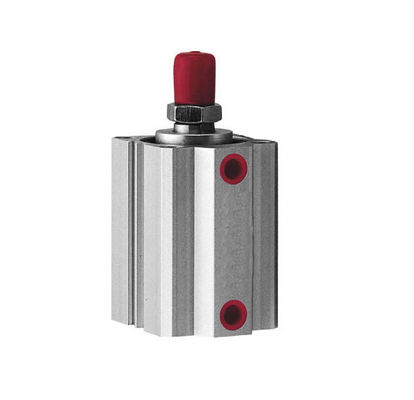

Thin Type Pneumatic Cylinder Vehicle Industry Welding Assembly Air Cylinder with Sensor Switch Max Stroke 100
Features:
| Bore of Cylinder (mm) | Φ12 Φ16 | Φ20 | Φ25 Φ32 Φ40 Φ50 Φ63 Φ80 Φ100 |
| Stroke(mm) | 5 ,10 ,15 ,20 ,25 ,30 ,35 ,40 ,45 ,50 | ||
| Range of stroke(mm) | Max:60 | Max:100 | Max:100 |
| Range of temperature (°C ) | -10 ~ +60 °C | ||
Max. operating pressure: 10 kgf/cm2
Min. operating pressure: 1 kgf/cm2
Double acting
Note:
Stroke above 50 mm needs to be customized.
Order Code:
SDA - D S - 20 - 10 - B
1 2 3 4 5 6

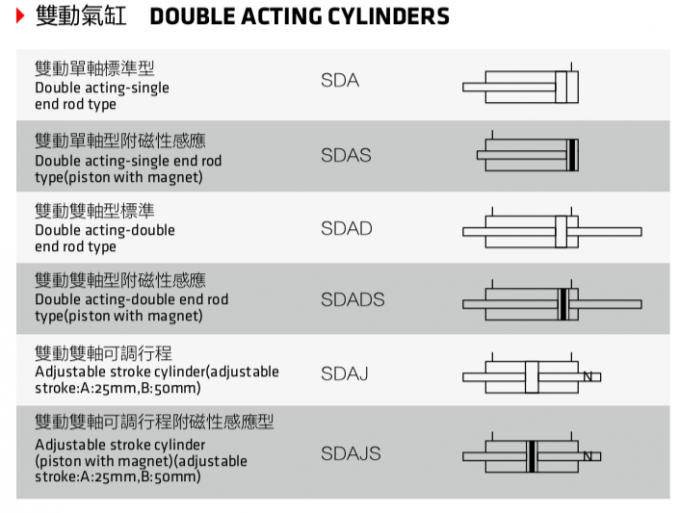

| 1 |
Series |
SDA/SOAD/SDAJ |
| 2 |
Piston rod |

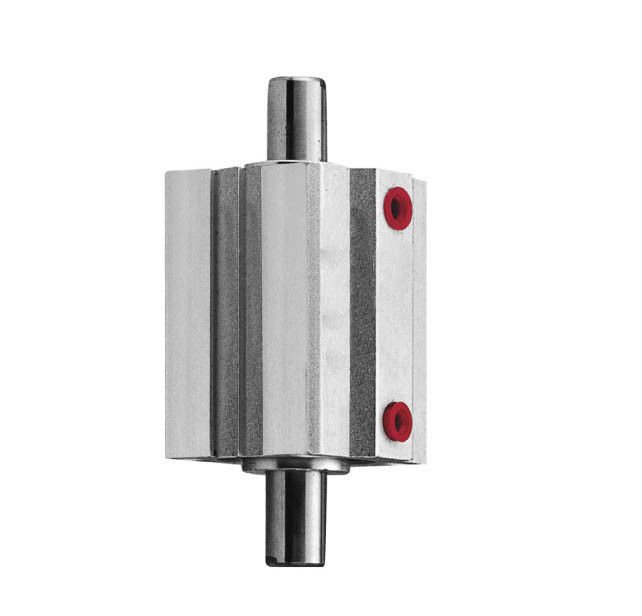

Nil: Single end rod D: Double end rod J: Double rod of adjustable stroke rod |
| 3 |
Magnet |
Nil: No magnet S: With magnet |
| 4 | Bore of Cylinder |
Φ12 , Φ16 , Φ20 , Φ25 , Φ32 , Φ40 , Φ50 , Φ63 , Φ80 , Φ100 |
| 5 |
Stroke |
5 , 10 , 15 , 20, 25 , 30 , 35 , 40, 45, 50 |
| 6 |

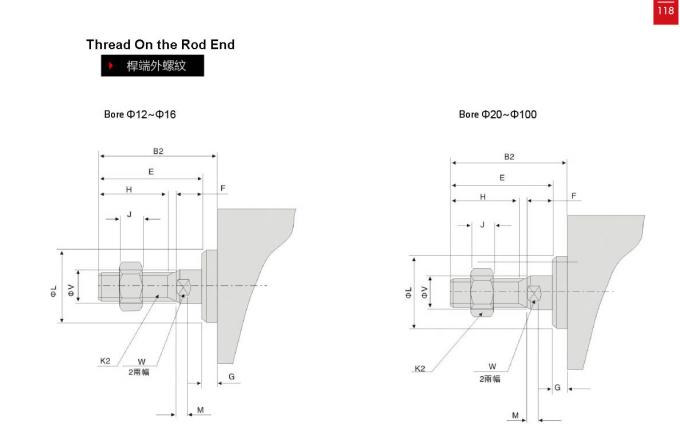

Rod end Type |
Nil:internal thread M: external thread
|
