Product Details:
Payment & Shipping Terms:
|
| Material: | Aluminum Alloy | Max. Operating Pressure: | 7 Kgf/cm2 |
|---|---|---|---|
| Min. Operating Pressure: | 3 Kgf/cm2 | Acting Type: | 3 Kgf/cm2 |
| Magnetic Induction: | Optional | Max Clamping Force: | 469kgs |
| Work Temperature: | -10~+60°C | Warranty: | 1 Year (change New For Free) |
| High Light: | hydraulic link clamp,pneumatic link clamp |
||

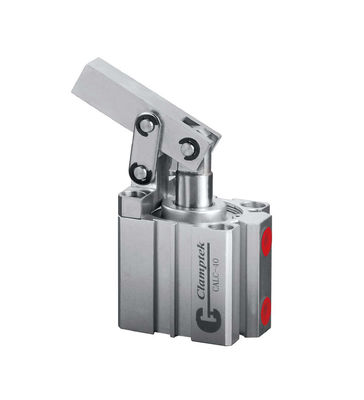

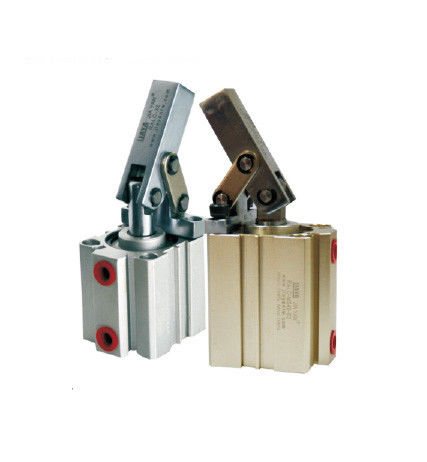

Pneumatic Link Clamp Cylinder Assembly Line Auto Clamp Sensor Clamp With Inductive Switch Aluminum Alloy Cylinder
FEATURES
1.Adopt Standardized fixture clamp specification in this series of product, and fitted with lever type holding structure. Piston push out for clamping.
2.Main spare parts of this product be installed outside of the body for convenient maintenance.
3.The material of the body is aluminum alloy. The surface of internal is smooth, and has a long service life.
4.Clamping spare parts material is carbon steel which used for mechanical configuration, firm and wear-resistance.
5.All models of this series equipped with magnetic induction are available.
Max. operating pressure: 7 kgf/cm2
Min. operating pressure: 3 kgf/cm2
Double acting
NOTE
A flow control valve is recommended.

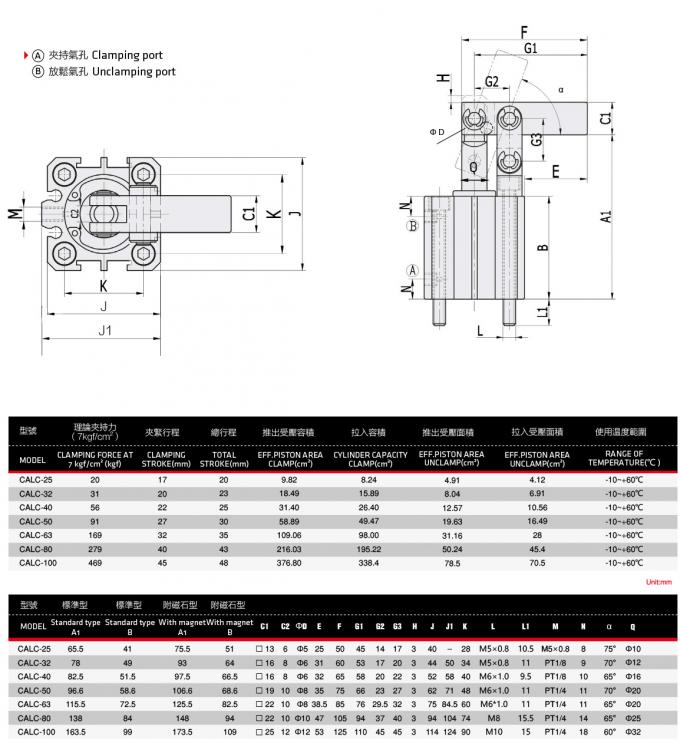

ORDERING INDICATION CALC - MS 32-S1
|
CALC |
Series |
CALC |
|
MS |
Blank MS |
Standard type With magnetic induction
|
|
32 |
Bore of Cylinder |
Φ25 , Φ32 , Φ40 , Φ50 , Φ63 , Φ80 , Φ100 |
|
S1 |
Sensor switch |
S1:1 pc of S1 S2:2 pcs of S2 |
