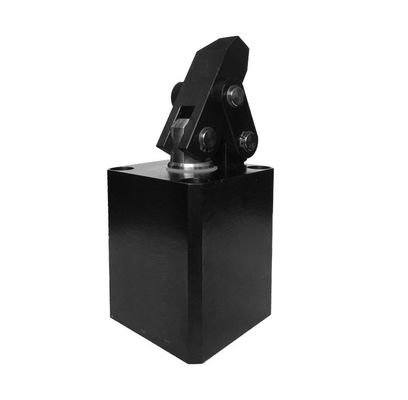

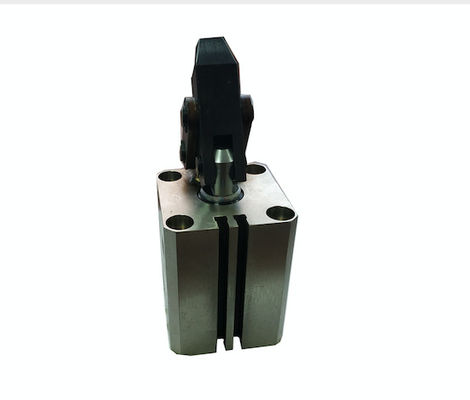

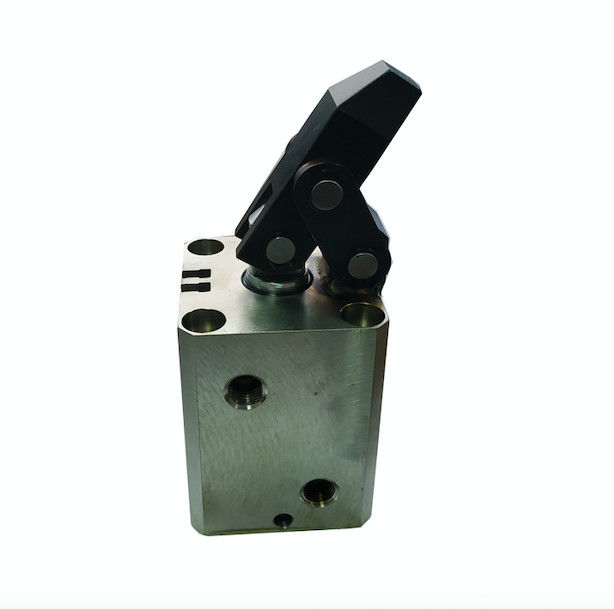

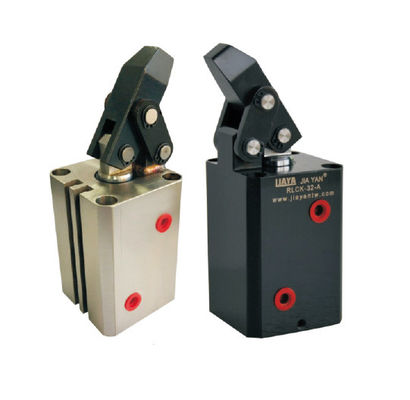

Hydraulic Link Clamp Cylinder Carbon Steel Body Surface Chrome Plated industrial Fixture in Auto manufacture
FEATURES
1.The clamp structure of this model is based on the lever principle: it will be tightened as piston pushing out.
2.The clamping force is stronger than the swing clamp cylinder.
3.The parts are installed outside the cylinder barrel for maintaining easily.
4.The cylinder barrel is made of carbon steel with stable and durable performance.
5.The material of the piston is 45# steel, heat treatment, chrome plated.
Max. operating pressure: 70 kgf/cm2
Min. operating pressure: 10 kgf/cm2
Double acting
NOTE
A flow control valve is recommended
Specification
| Bore of Cylinder(mm) | Φ25 | Φ32 | Φ40 | Φ50 | Φ63 |
|
Dia. of Piston (mm) |
Φ18 | Φ20 | Φ22.4 | Φ28 | Φ35 |
| Total stroke(mm) | 25 | 25 | 30 | 34 | 40 |
| Pressure area push cm² | 4.91 | 8.04 | 12.57 | 19.63 | 31.17 |
| Theoretical Clamping Force 30 kg/cm² | 116kgs | 190kgs | 288kgs | 453kgs | 701kgs |
| Fluid | Filtered oil | ||||
| Max Pressure | 70kg/cm² | ||||
| Range of pressure | 10-50kg/cm² | ||||
| Acting type | Double acting | ||||

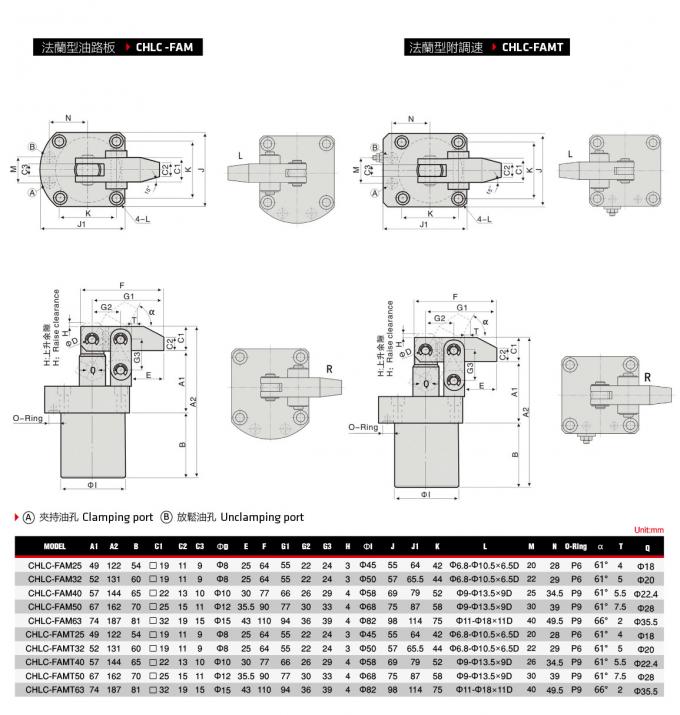

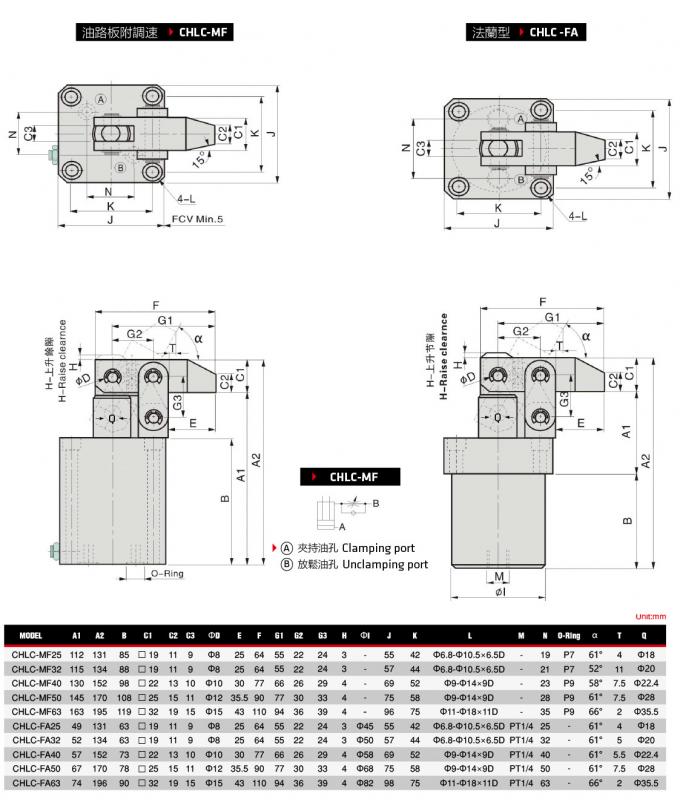

ORDERING INDICATION CHLC – MF 25 R A
| CHLC | Series |
CHLC |
| MF |
Type |

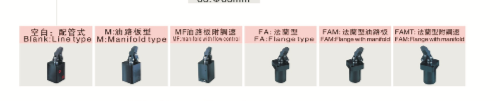

Blank :Line type M: Manifold type MF: Manifold with flow control FA:Flange type FAM:Flange with manifold FAMT: Flange with flow control |
| 25 | Bore of Cylinder |
25 , 32 , 40 ,50 , 63 |
| R |
Lever arm direction |
R: right , L: left |
| A |
A integrated |
