Product Details:
Payment & Shipping Terms:
|
| Material: | Aluminium Alloy | Type: | Standard |
|---|---|---|---|
| Structure: | Rotary Cylinder | Power: | Pneumatic |
| Maximum Stroke: | 15mm | Shaft Diameter: | 25mm-63mm |
| Acting Type: | Double Acting | Working Media: | Cleaned Air |
| Working Pressure:: | 0.1-0.9Mpa | Working Temperature: | -5~70℃ |
| Port Size:: | M5X0.8 | Working Speed: | 30~500 Mm/sec |
| Rotary Stroke: | 11-15mm | Clamping Stroke: | 11-15mm |
| High Light: | swing cylinder clamps,pneumatic clamps fixtures |
||

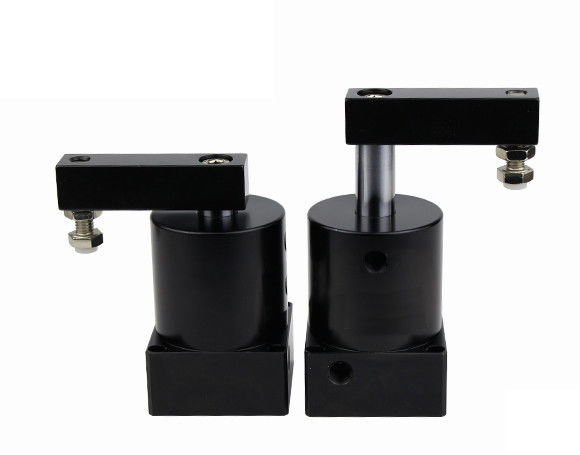

Pneumatic Rotary Clamp Rotating Clamping Cylinder Mass Production Fixture
Product Specification
| Bore Size(mm) | 25 | 32 | 40 | 50 | 63 |
| Working Type | Double Acting | ||||
| Working Media | Cleaned Air | ||||
| Working Pressure | 0.15~0.95Mpa | ||||
| Working Temperature | 0~60℃ | ||||
| Working Speed | 30~500mm/sec | ||||
| Rotary Stroke | 11mm | 13mm | 15mm | ||
| Down Stroke | 11mm | 13mm | 15mm | ||
| Rotation Angle | 90° can be customized(0°, 45°, 60°) | ||||
| Direction of Rotation | Turn left(from right to left)-L; turn right(from left to right)-R | ||||
| Buffering | Rubber Cushion | ||||
| Port Size | M5X0.8 | M5X0.8 | |||
| Lubrication | Freely supply | ||||
