Air Swing Clamp Cylinder For Repetitive Production Upper Flange Aluminum Alloy Type

China Air Swing Clamp Cylinder For Repetitive Production Upper Flange Aluminum Alloy Type supplier
Air Swing Clamp Cylinder For Repetitive Production Upper Flange Aluminum Alloy Type supplier Air Swing Clamp Cylinder For Repetitive Production Upper Flange Aluminum Alloy Type supplier

Large Image :  Air Swing Clamp Cylinder For Repetitive Production Upper Flange Aluminum Alloy Type

Product Details:

Place of Origin: Dongguan China
Brand Name: Jiayan
Certification: ISO9001:2008
Model Number: RAU

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: inner poly bag outer carton box
Delivery Time: 7 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 sets per week
Contact Now
Detailed Product Description
Material: Aluminum Alloy Max.operating Pressure: 7 Kgf/cm2
Min.operating Pressure: 4 Kgf/cm2 Acting Type: Double Acting
Clamping Arm: Single Arm Or Double Arm Warranty: 1 Year ( Change For Free )

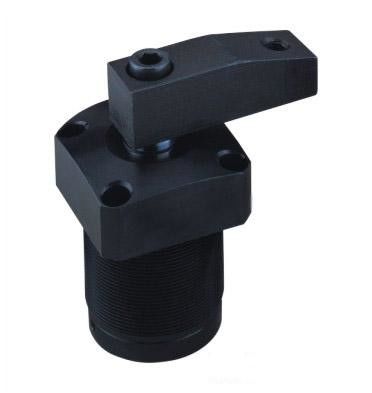

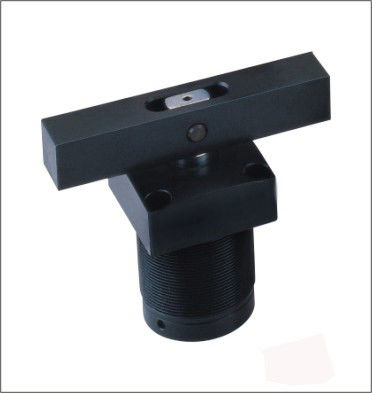

Double Acting Upper Flange Pneumatic Swing Clamp Aluminum Alloy Air Swing Clamp Cylinder for Repetitive Production



Features:



1.The bores of this kind of swing clamp cylinder are includingΦ32,Φ40,Φ50 and Φ63;

2.The total stroke is equal to the sum of a swing stroke and a clamping stroke

3.Clamping type : single arm and double arms

4.The material of the cylinder is aluminum alloy

5.If you need to increase the length of the clamping arm ,please don’t exceed 1.5 times of the original length

 Actint Type: Double acting type

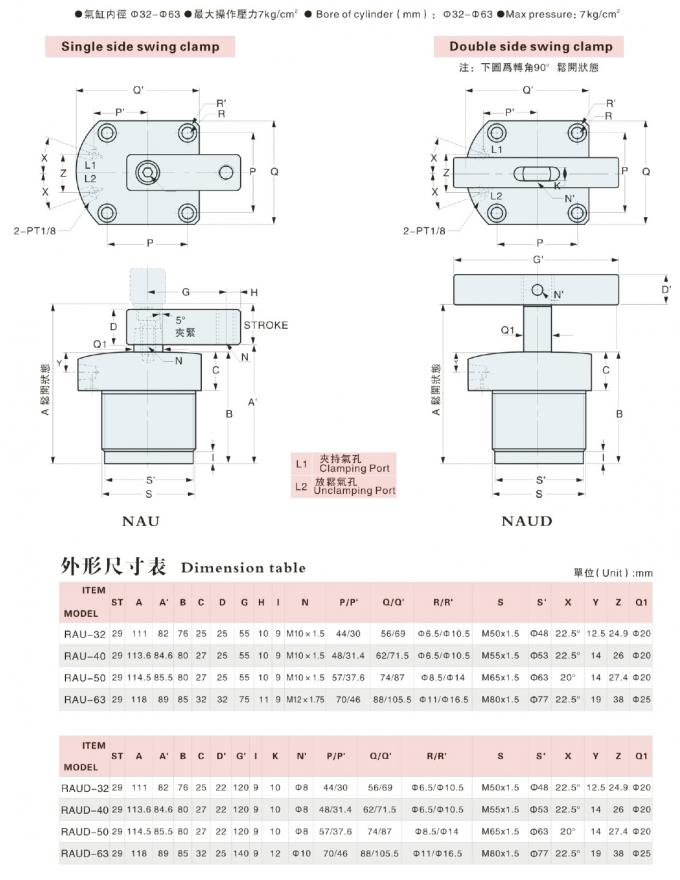

Specification



Bore of Cylinder (mm) Φ32 Φ40 Φ50 Φ63
Bore of Piston Φ20 Φ20 Φ20 Φ25
Swing stroke (mm) 14
Clamping stroke 15
Pressure area pull/push cm² 4.9/8.04 9.43/12.57 16.49/19.63 28.03/31.17

Theoretical Clamping

5kg/ cm²

25kgs 47kgs 85kgs 130kgs
Fluid Filtered air
Max operation pressure 10kg/cm²
Range of pressure (kg/ cm²) 4-7kg/cm²
Rotating direction Turn right R or Turn left L
Rotating angle Standard angle 90°(±2°),optional angle 0°(±2°), 45°(±2°), 60° (±2°)
Acting type Double acting



Ordering Code



RAU L 40 x 90°



RAU Series RAU(single arm),RAUD(double arms)
L Rotating direction Turn right or turn left
40 Bore of cylinder Φ25mm;Φ32mm;Φ40mm;Φ50mm;Φ63mm
90 Rotating angle

Standard angle 90°

optional angle 0°, 45°, 60°
