Stable Pneumatic Swing Cylinder Clamps Anodizing Surface Corrosion Resistance

China Stable Pneumatic Swing Cylinder Clamps Anodizing Surface Corrosion Resistance supplier
Stable Pneumatic Swing Cylinder Clamps Anodizing Surface Corrosion Resistance supplier Stable Pneumatic Swing Cylinder Clamps Anodizing Surface Corrosion Resistance supplier

Large Image :  Stable Pneumatic Swing Cylinder Clamps Anodizing Surface Corrosion Resistance

Product Details:

Place of Origin: Dongguan China
Brand Name: Jiayan
Certification: ISO9001:2008
Model Number: PSB

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: inner poly bag outer carton box
Delivery Time: 7 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 sets per week
Contact Now
Detailed Product Description
Material: Aluminium Alloy Max.operating Pressure: 7 Kgf/cm2
Min.operating Pressure: 4 Kgf/cm2 Acting Type: Double Acting
Rotating Direction: Turn Right R Or Turn Left L Bore Of Cylinder: Φ25 , Φ32 , Φ40 , Φ50 , Φ63
Warranty: 1 Year ( Change For Free )
High Light:

pneumatic air clamps

,

pneumatic clamps fixtures

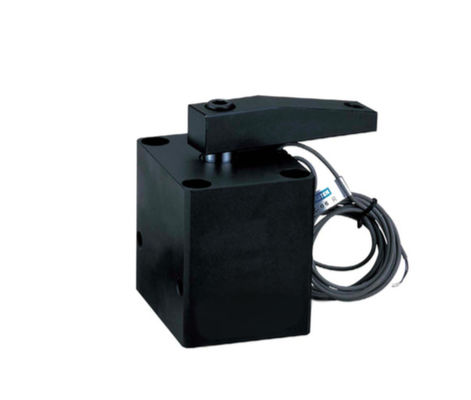

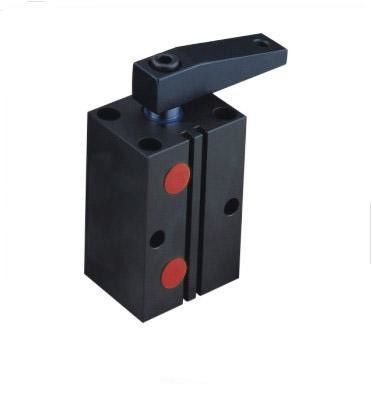

Stable Structure Pneumatic Swing Clamp Aluminium Alloy body with anodizing surface for wear and corrosion resistance



FEATURES:



1.Optimized design , compact structure , long life span and high clamping force make this swing clamp a perfect fixture.

2.Sensor switch can be installed on side or top of this swing clamp.



Max.operating pressure: 7 kgf/cm2

Min.operating pressure: 4 kgf/cm2

Double acting



NOTE
A flow control valve is recommended
For customized clamp arm, please don't exceed 1.5 times of the original length and weight.



Order Code

PSB-L 40x90-S1-P



PSB

Series

PSB

L

Rotating direction

Turn right R or turn left L

40 Bore of cylinder

Φ25 , Φ32 , Φ40 , Φ50 , Φ63

90

Rotating angle

Standard angle 90°(±2)

Order angle 0°, 45°(±2),60(° ±2)

S1

Sensor switch

S1:1 pc

S2:2 pcs

P

Precision position

Add locating pin design to improve the repeat precision of rotation angle

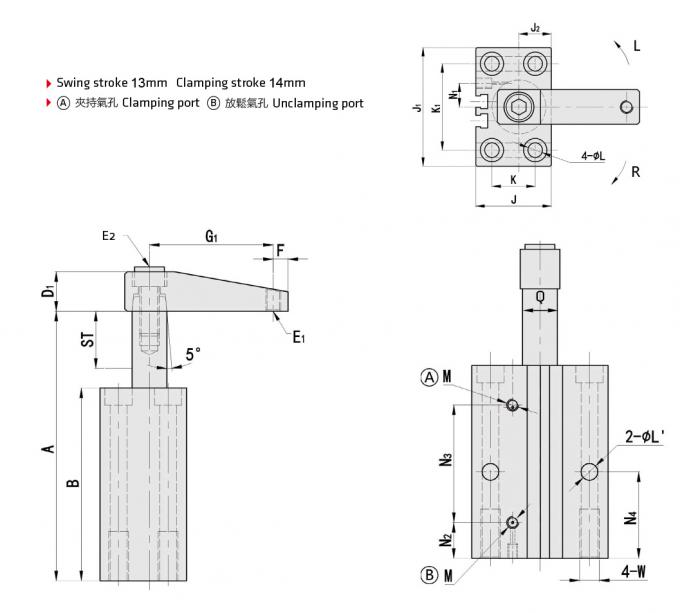

Stable Pneumatic Swing Cylinder Clamps Anodizing Surface Corrosion Resistance

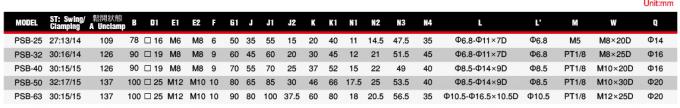

Model Clamping force at 7kgs/cm2(kgf) Swing Stroke (mm) Clamping Stroke (mm) Total Stroke (mm)

Cylinder Capacity

(Clamp) cm3

Cylinder Capacity

(unclamp) cm3

EFF.PISTON AREA (Clamp) cm2 EFF.PISTON AREA (unclamp) cm2 Temperature Range (°C )

(°C )

PSB-25       24 13 14 27 9.10 13.26 3.37 4.91 -10~+60°C
PSB-32 42 16 14 30 18.06 24.12 6.02 8.04 -10~+60°C
PSB-40 74 15 15 30 31.68 37.68 10.56 12.56 -10~+60°C
PSB-50 116 17 15 32 52.80 62.82 16.5 19.63 -10~+60°C
PSB-63 196 15 15 30 84.06 93.48 28.02 31.16 -10~+60°C
