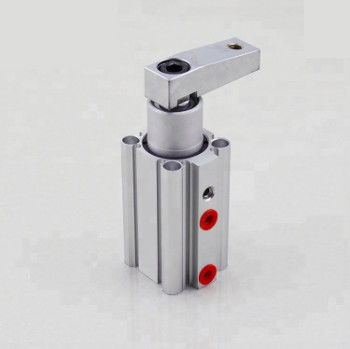

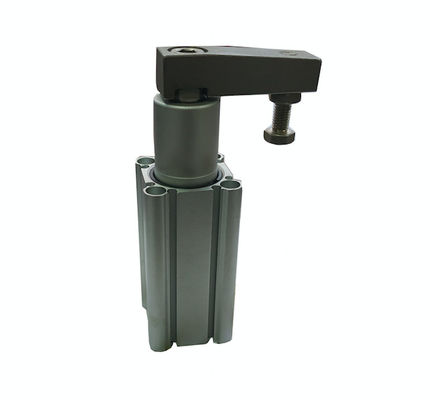

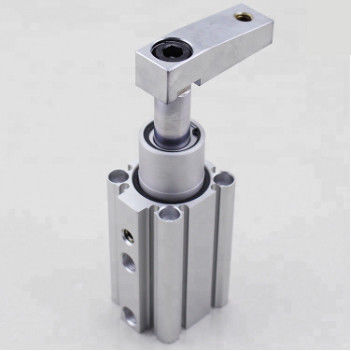

Electric Pneumatic Swing Clamp Rotary Actuator High Clamping Force Long Life Span

All Products
Hydraulic Swing Clamp (21)
Pneumatic Swing Clamp (20)
Air Powered Swing Clamps (15)
Vertical Toggle Clamp (29)
Link Clamp Cylinder (15)
Horizontal Toggle Clamp (32)
Aluminum Air Cylinder (14)
Push Pull Hydraulic Cylinder (19)
Push Pull Toggle Clamp (33)
Single Acting Hydraulic Cylinder (6)
Hydraulic Pressure Intensifier (6)
Hydraulic Control Valve (10)
Latch Toggle Clamp (12)
Heavy Duty Toggle Clamps (16)
Pneumatic Toggle Clamp (13)
Work Support (7)
Certification
Good quality Pneumatic Swing Clamp for sales
Good quality Pneumatic Swing Clamp for sales
Awesome as always, a pleasure to deal with. Great source for great products. （Randall Bowman from USA BBQ Association）

—— Randall Bowman

 Been dealing with Jiazheng a long time. My customers are very happy with their products.Good people. 100%

—— John Hall

The company considerate after-sales service ,And try their best to meet the requirement of customers. We will be a long-term cooperation.

—— Tony Watchtel

I'm Online Chat Now

Electric Pneumatic Swing Clamp Rotary Actuator High Clamping Force Long Life Span

China Electric Pneumatic Swing Clamp Rotary Actuator High Clamping Force Long Life Span supplier
Electric Pneumatic Swing Clamp Rotary Actuator High Clamping Force Long Life Span supplier Electric Pneumatic Swing Clamp Rotary Actuator High Clamping Force Long Life Span supplier Electric Pneumatic Swing Clamp Rotary Actuator High Clamping Force Long Life Span supplier

Large Image :  Electric Pneumatic Swing Clamp Rotary Actuator High Clamping Force Long Life Span

Product Details:

Place of Origin: Dongguan China
Brand Name: Jiayan
Certification: ISO9001:2008
Model Number: MK

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: poly bag and carton box
Delivery Time: 7 days
Payment Terms: L/C, T/T, Western Union,Paypal
Supply Ability: 1000 sets per week
Contact Now
Detailed Product Description
Material: Aluminium Alloy Type: Standard
Structure: Rotary Cylinder Fluid: Air
Action: Double Action Working Pressure: 0.1~1Mpa
Fluid Temperature: -10~+70℃ Port Size:: G1/8'', G1/4'' M5x0.8
Stroke: 10/20/50mm
High Light:

swing cylinder clamps

,

pneumatic clamps fixtures



Air Cylinders Rotary Actuator Pneumatic Swing Clamping Cylinder Electronics Manufacture Clamps



Product Features



1.Optimized design , compact structure, light weight, long life span and high clamping force make it a perfect fixture

2.This product has long stroke and short stroke
3.Mounting by four screws
4.Applied to industrial automation, clamping of sheet metal, clamping of workpiece on conveyor belt and packing assembly line
5.When the length of the clamping arm need to be increased, do not exceed 15 times of the original length



Electric Pneumatic Swing Clamp Rotary Actuator High Clamping Force Long Life Span

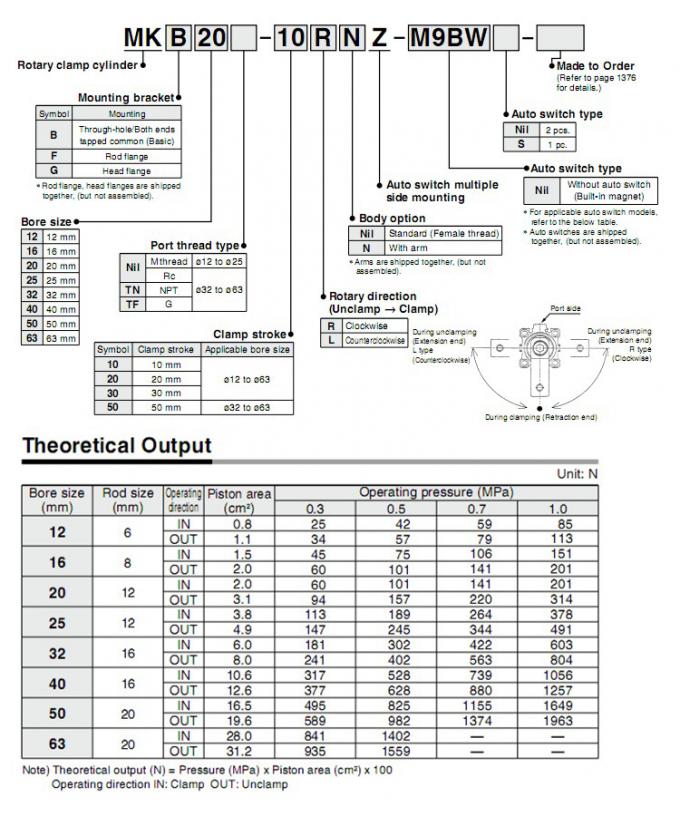

Specifications



Bore Size(mm) 12 16 20 25 32 40 50 63
Acting Double acting
Back-Rotation Angle 90°± 10°
Back-Rotation Direction Left(Counterclockwise) , Right(Clockwise)
Back-Rotation Distance 7.5mm 9.5mm 15mm 19mm
Clamping Distance 10,20,30mm 10,20,30,50mm
Allowed Bending Torque(N.m) 1 3.8 7 13 27 47 107 182
Theoretical Clamp Force(N) 40 75 100 185 300 525 825 1400
Working Fluid Cleaned Air
Proof Pressure 1.5 Mpa
Working Pressure 0.1~1Mpa 0.1~0.6Mpa
Fluid Temperature With magnetic switch:-10~+60℃(No freezing), Non-magnetic switch:-10~+70℃(No freezing)
Lubrication No need
Piping Port Size M5*0.8 G1/8" G1/4"
Mounting Through-hole/ Both ends tapped common /Head flange
Buffering Rubber bumper
Stroke Length Tolerance +0.6mm ~ -0.4mm
Piston Speed 50-200mm/s
Non-Rotation
Piston Rod Accuracy 		±1.4° ±1.2° ±0.9°

±0.7°
