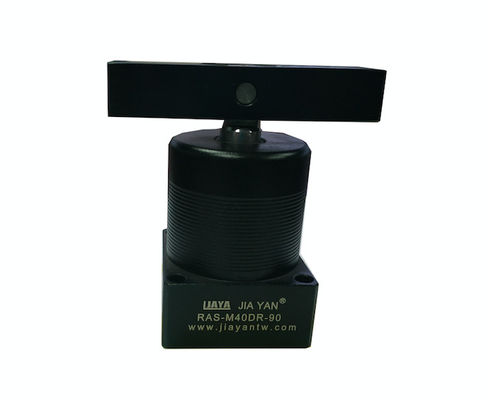

Rotary Pneumatic Air Clamping Down Cylinder Free Oiling Double Acting Cylinder
1.This machine with MC clamp is exclusively to mass-produce spare parts.It is a big helper to raise production efficiency.
2.The clamping arm of this clamp will swing around the angle when the piston traveling down,and then keep straight on until the clamping arm clamps the work-piece tightly.
3.You had better install a flow control valve to adjust the acting speed,and don't clamp the workpiece when the clamp is running,Otherwise will be easy to damage the body and the spare parts.
4.The material of the cylinder body is made of aluminum metal alloy, the surface is processed with the hard membrane and the inside of it is smooth.Long life-span
5.Double acting

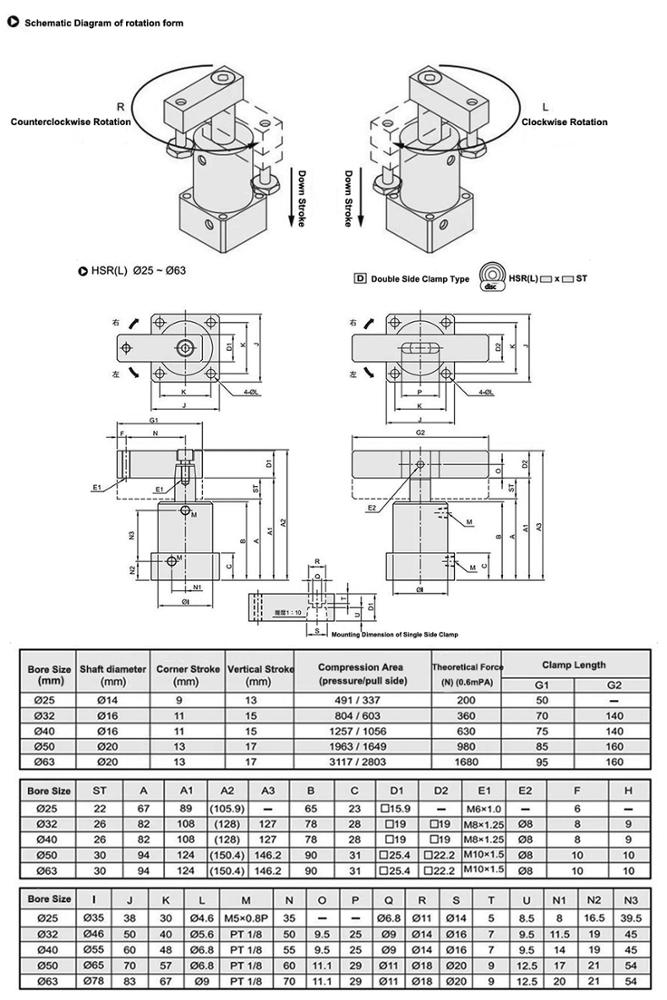

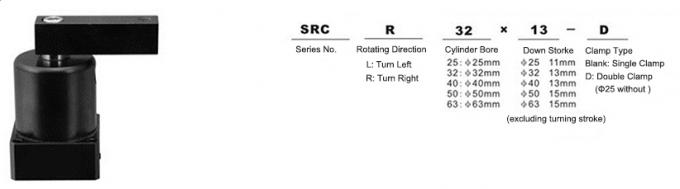

Product Specifications
| Bore Size(mm) | 25 | 32 | 40 | 50 | 63 | ||||||
| Action | Double Acting | ||||||||||
| Working Fluid | Air | ||||||||||
| Working Pressure | 1.5~9.5kgf/cm2 | ||||||||||
| Working Temperature | 0~60℃ | ||||||||||
| Working Speed | 30~500mm/sec | ||||||||||
| Port Size | M5 x 0.8 | ||||||||||
| Turning Stroke | 11 | 13 | 15 | ||||||||
| Down Stroke | 11 | 13 | 15 | ||||||||
| Rotating Angle | 90°(accept to customise 0°,45°,60°) | ||||||||||
| Rotating Direction | L: Left(from right to left) R: Right(from left to right) | ||||||||||
| Cushion | Rubber gasket buffer | ||||||||||
| Lubrication | Free oiling | ||||||||||
