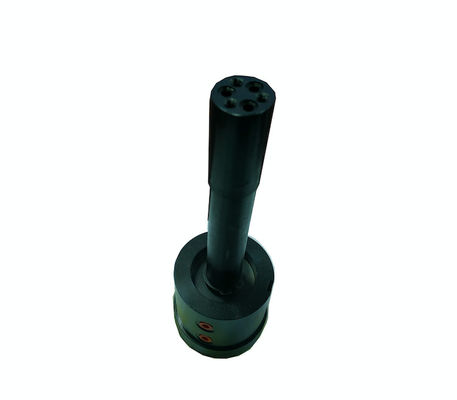

Oil Flow Control Valve Rotary Joint Manifold Distributor For Rotary Workbench

China Oil Flow Control Valve Rotary Joint Manifold Distributor For Rotary Workbench supplier
Oil Flow Control Valve Rotary Joint Manifold Distributor For Rotary Workbench supplier Oil Flow Control Valve Rotary Joint Manifold Distributor For Rotary Workbench supplier Oil Flow Control Valve Rotary Joint Manifold Distributor For Rotary Workbench supplier Oil Flow Control Valve Rotary Joint Manifold Distributor For Rotary Workbench supplier

Large Image :  Oil Flow Control Valve Rotary Joint Manifold Distributor For Rotary Workbench

Product Details:

Place of Origin: Dongguan China
Brand Name: Jiayan
Certification: ISO9001:2008
Model Number: MD

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: poly bag and carton box
Delivery Time: 7 days
Payment Terms: L/C, T/T, Western Union,PayPal
Supply Ability: 300 sets per week
Contact Now
Detailed Product Description
Material: Carbon Steel Max Operation Pressure: 25 Mpa
Pipe Port Size: Rp1/8 Work Temperature: 0-70 Degree
Fluid: Hydraulic Oil Warranty: 1 Year (change New One For Free)
High Light:

hydraulic flow control valve

,

oil flow control valve



Hydraulic Rotary Joint Manifold distributor for Rotary Workbench Reliable Structure



Product Instruction:

According to the requirements of four-axis fixtures from domestic and overseas machining customers, we  designed several four-axis rotary joints for customers. Pls contact us for more technique details before use our our products.



Features:



1.Low starting torque

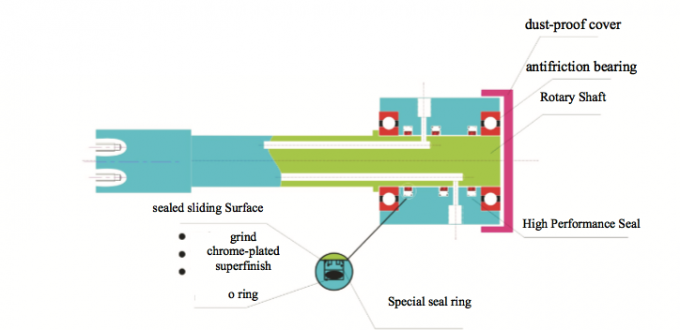

The special seal with less resistance is adopted to control the sliding resistance to the minimum and realize the low torque when starting.

2.Excellent sealing performance and durability
After super finishing on sealing sliding surface is carried out and hard chrome plated ,  the excellent sealing performance and durability will be formed.

Oil Flow Control Valve Rotary Joint Manifold Distributor For Rotary Workbench

The hydraulic rotary joint can effectively solve the problem of oil supply from the hydraulic hose and the fixed pipe to the rotary table of the machining center.

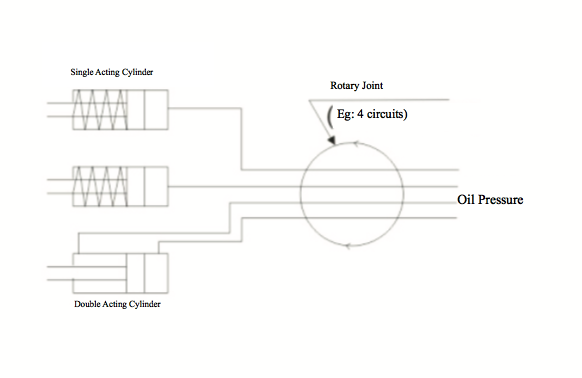

For example, when choosing the 4 circuit type, it can be used to control 4 single acting hydraulic cylinders or double acting hydraulic cylinders respectively.



Oil Flow Control Valve Rotary Joint Manifold Distributor For Rotary Workbench

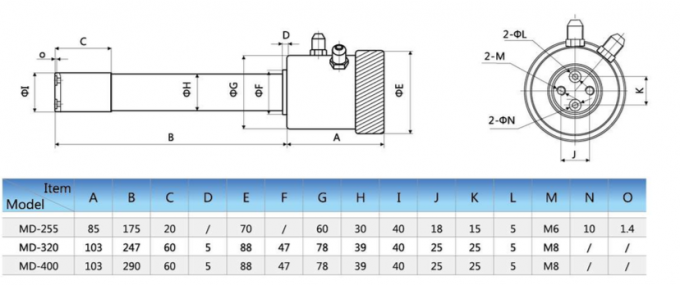

Model MD-255 MD-320 MD-400
Circuit No. 2 4 6
Fluid   Hydraulic Oil
Max Operation Pressure (Mpa) 25

revolution


Work Temperature 0-70
Piping port Size Rp 1/8



Oil Flow Control Valve Rotary Joint Manifold Distributor For Rotary Workbench
