Adjustable Hydraulic Control Valve / 12 Volt Hydraulic Sequence Control Valves Check Valve

Certification
Good quality Pneumatic Swing Clamp for sales
Good quality Pneumatic Swing Clamp for sales
Awesome as always, a pleasure to deal with. Great source for great products. (Randall Bowman from USA BBQ Association)

—— Randall Bowman

 Been dealing with Jiazheng a long time. My customers are very happy with their products.Good people. 100%

—— John Hall

The company considerate after-sales service ,And try their best to meet the requirement of customers. We will be a long-term cooperation.

—— Tony Watchtel

I'm Online Chat Now

Adjustable Hydraulic Control Valve / 12 Volt Hydraulic Sequence Control Valves Check Valve

China Adjustable Hydraulic Control Valve / 12 Volt Hydraulic Sequence Control Valves Check Valve supplier
Adjustable Hydraulic Control Valve / 12 Volt Hydraulic Sequence Control Valves Check Valve supplier Adjustable Hydraulic Control Valve / 12 Volt Hydraulic Sequence Control Valves Check Valve supplier

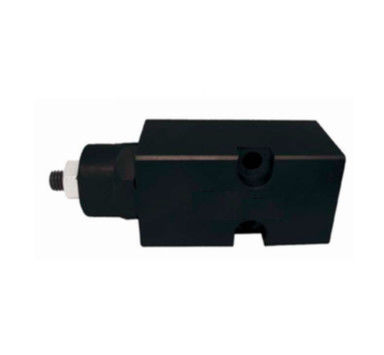

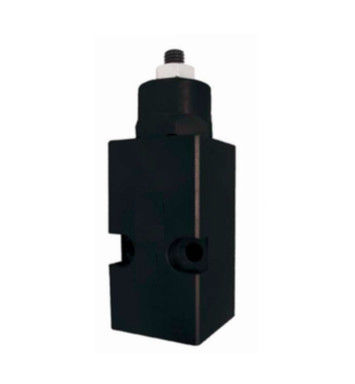

Large Image :  Adjustable Hydraulic Control Valve / 12 Volt Hydraulic Sequence Control Valves Check Valve

Product Details:

Place of Origin: Dongguan China
Brand Name: Jiayan
Certification: ISO9001:2008
Model Number: CLH

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: poly bag and carton box
Delivery Time: 7 days
Payment Terms: L/C, T/T, Western Union, PayPal
Supply Ability: 400 sets per week
Contact Now
Detailed Product Description
Material: Carbon Steel Adjustable Pressure Range: 5.0~18.0 MPa
Operating Pressure Range: 6.0~35.0 MPa Starting Pressure: 0.01 MPa
Operating Temperature °C: 0~70°C Fluid: Hydraulic Oil Equivalent To ISO-VG-32
Warranty: 1 Year (change New One For Free)



Hydraulic Sequence Valve High Operation Pressure Simple Installation Carbon Steel Body



SPECIFICATION



Model No.

CLG-3A

CLG-6A

Adjustable pressure range MPa

1.0~6.0

5.0~18.0

Operating pressure range MPa

2.0~35.0

6.0~35.0

Adjustable screw pressure change value MPa/Rev

1.0

2.8

Starting pressure MPa

0.01

Operating temperature °C

0~70°C

Useable fluid

hydraulic oil equivalent to ISO-VG-32



Note:



Excessive side oil supply can sometimes result in inaccurate sequential actions.

Install a flow control valve with a built-in check valve in front of the oil hole or

execute flow control on the oil pressure source.



Ordering Code:

CLG - 3 A(5.0MPa)

1         2 3  4

1

Series

CLG

2 adjustable pressure range

3: 1.0~6.0 MPa

6: 5.0~18.0MPa

3

A

Manifold type

4

Pre-set pressure (Set pressure value for sequence operation)

Provide a difference of more than 1MPa between operating and setting pressure.
When using multiple CLG sequence valves in a parallel fashion, provide each set pressure with a pressure difference more than 1MPa.



Adjustable Hydraulic Control Valve / 12 Volt Hydraulic Sequence Control Valves Check Valve

Adjustable Hydraulic Control Valve / 12 Volt Hydraulic Sequence Control Valves Check Valve
