Product Details:
Payment & Shipping Terms:
|
| Stroke (mm): | 26.7 | Cylinder Bore (mm): | 25 |
|---|---|---|---|
| Clamping Force @ 5Bar[72Psi: | 1 | Mount: | Flanged Body |
| Swing Direction: | LH | Air Port Size: | 10-32 |
| Air Consumption (per Double Stroke At 5 Bar) (dm³): | 0.130 | Stroke During Rotation (mm): | 13.7 |
| Vertical Clamp Stroke (mm): | 13.0 | Sensor Ready: | No |
| Weight (kg): | 0.25 | Product Series Description: | Swing Clamp |

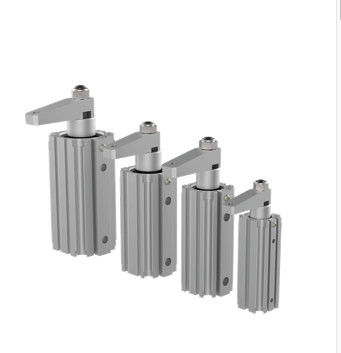

Pneumatic Swing Pull Clamps Alluminium Alloy Rotary Clamp Cylinder
Swing Clamp Features:
Swing motion available in 0, 45, 60, and 90 degrees
Two styles of arms
Double-locked arm design is bolted to piston shaft and around shaft diameter for extra rigidity
Flanged body
Quick swing-and-clamp movement
Uniquely adaptable for welding and assembly operations
Clamping force in direct proportion to bore size and inlet pressure non-locking
Swing Clamp Specification:
Stroke (mm) :26.7
Stroke (in) :1.050
Cylinder Bore (mm) :25
Cylinder Bore (in) 0.98
Clamping Force @ 5Bar[72Psi] (N): 20
Clamping Force @ 5Bar[72Psi] (lbf.) :50
Mount :Flanged Body
Swing Direction :LH
Air Port size :10-32
Air Consumption (per double stroke at 5 bar) (dm³) :0.130
Air Consumption (per double stroke at 7 psi) (in³): 0.005
Stroke during rotation (mm) :13.7
Stroke during rotation (in) :0.54
Vertical clamp stroke (mm) :13.0
Vertical clamp stroke (in): 0.51
Sensor Ready: No
Weight (kg) :0.25
Weight (lb) :0.56
Product Series Description :Swing Clamp
