Product Details:
Payment & Shipping Terms:
|

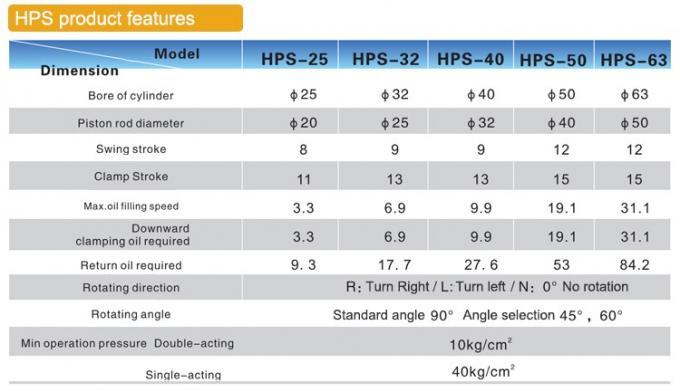

| Material: | Carbon Steel | Max. Bore Of Cylinder: | 63mm |
|---|---|---|---|
| Piston Diameter: | 20-50 Mm | Swing Stroke: | Max.12 Mm |
| Clamping Stroke: | Max.15 Mm | Oil Filling Speed: | 31.1 |
| Clamping Oil Required: | 31.1 | Unclamping Oil Required: | 84.2 |
| Min Operation Pressure: | Single Acting 40kg/cm2 |

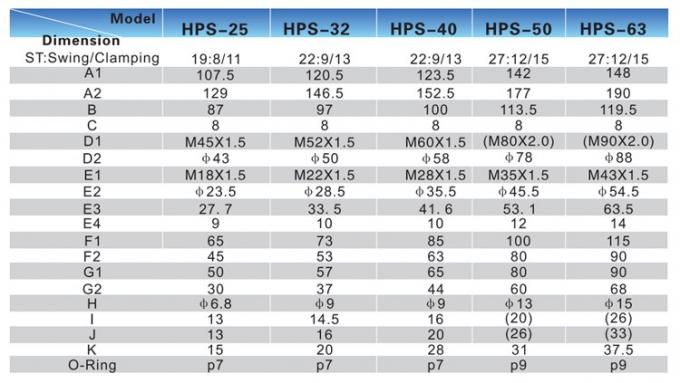

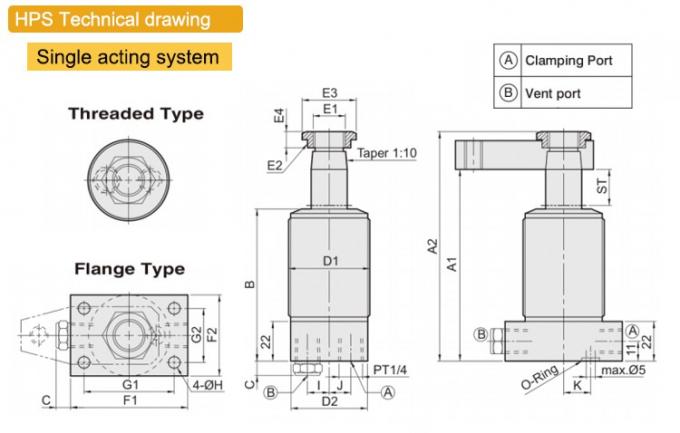

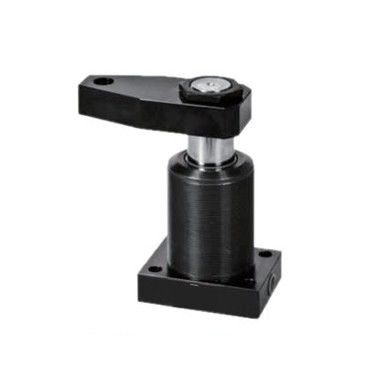

China Factory HPS Double Acting High Pressure Swing Clamp Cylinder
Product Instruction
1. The series of high pressure swing clamp cylinder is ideal for workpiece clamping which requires a sufficient space for convenient workpiece loading and unloading and high pressure clamping.
2. It provides swing motion(do not clamp workpiece) and vertical hold down motion.
3. The high pressure swing clamp cylinder employs Germany oil seal and imported parts.The inside surface of cylinder barrel is specially treated, featuring maximum smoothness, hight performance and long service life.
4. For maximum oli feeding speed, refer to specifications. Do not exceed oil feeding speed occurs, it is suggested to equip with an additional oil flow control valve to reduce oil feeding speed.
5. Refer to the comparison diagram between the effective clamping force and working pressure. Do not exend the swing arm length as desired.
