Forceful Hydraulic Swing Clamp Multiple Bores Black Oxide Finish Surface

China Forceful Hydraulic Swing Clamp Multiple Bores Black Oxide Finish Surface supplier
Forceful Hydraulic Swing Clamp Multiple Bores Black Oxide Finish Surface supplier Forceful Hydraulic Swing Clamp Multiple Bores Black Oxide Finish Surface supplier Forceful Hydraulic Swing Clamp Multiple Bores Black Oxide Finish Surface supplier

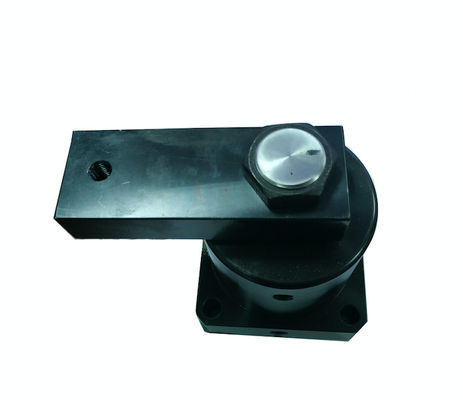

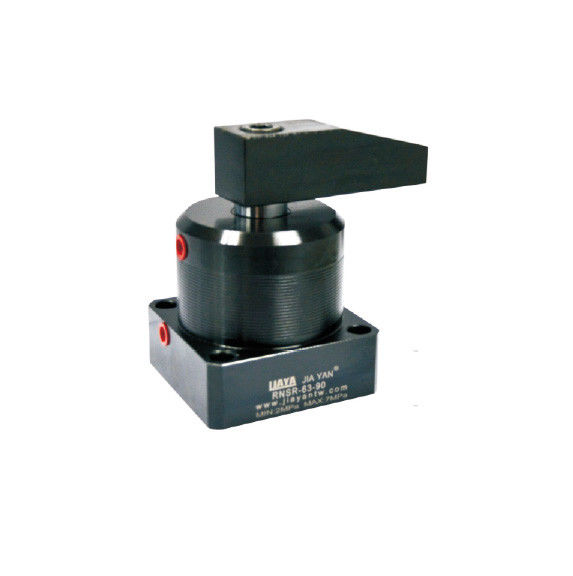

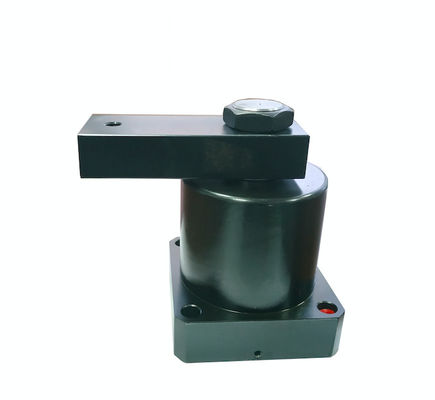

Large Image :  Forceful Hydraulic Swing Clamp Multiple Bores Black Oxide Finish Surface

Product Details:

Place of Origin: Dongguan China
Brand Name: Jiayan
Certification: ISO9001:2008
Model Number: RNS/RNTS

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: inner poly bag outer carton box
Delivery Time: 7 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 sets per week
Contact Now
Detailed Product Description
Material: High Strength Carbon Steel Max. Operating Pressure: 45 Kgf/cm2
Min. Operating Pressure: 20 Kgf/cm2 Acting Type: Double Acting
Mounting Type: Flange Rotating Direction: Clockwise Or Anticlockwise
Max Clamping Force: 600kgs Warranty: 1 Year (change For Free)
High Light:

hydraulic workholding clamping fixture

,

rotary clamp cylinder



High Clamping Force Hydraulic Swing Clamp multiple bores of the Cylinder Black Oxide Finish on Surface Carbon Steel



Product Introduction



1. The bores of this series of cylinder are including Φ25,Φ32,Φ40,Φ50 and Φ63 and the rotating angles are including 0°,45°,60°,90°and 180°.

2. This series of hydraulic swing clamps are applied under the situation that large clamping force is needed and used to clamp the large work piece. It is widely used in mass production and it features high automation.

3. The cylinder body is made of carbon steel.



Specification



Type of cylinder (mm) RNS-25 RNS-32 RNS-40 RNS-50 RNS-63
RNSD-25 RNSD-32 RNSD-40 RNSD-50 RNSD-63
RNTS-25 RNTS-32 RNTS-40 RNTS-50 RNTS-63
RNTSD-25 RNTSD-32 RNTSD-40 RNTSD-50 RNTSD-63
Swing stroke(mm) 12 14
Clamping stroke(mm) 14 15
Fluid

Filtered oil



Max pressure (kg/cm²) 70kgs/cm²
Normal operation pressure (kg/cm²) 20-45kgs/cm²
Rotating direction Turn Right or Turn Left
Rotating angle Standard angle 90°,Optional angle 0°,45°, 60°, 180°
Acting type Double Acting
Fixing type Flange
Bore of piston Φ18 Φ20 Φ20 Φ20 Φ25

Press Area pull/push (cm²)

cm²

2.36/4.9 4.89/8.03 9.42/12.56 16.48/19.62 26.25/31.15
Theoretical Clamping Force (25 kg/cm²) 59kgs 120kgs 200kgs 400kgs 600kgs



Ordering Coder



RNS  L-- 40°x 90° G

        ③    ④  ⑤



Series RNS, RNSD, RNTS, RNTSD
Rotating direction Turn Right or Turn Left
Bore of cylinder

Φ25mm;Φ32mm;Φ40mm;Φ50mm;Φ63mm

Note:Φ63mm is not available for RNTS, RNTSD Series

Rotating angle

Standard angle 90°;Optional angle 0°,

45°, 60°, 180°

G:manifold
