Product Details:
Payment & Shipping Terms:
|
Material: | Carbon Steel | Surface: | Oxidizing Blackening |
---|---|---|---|
Max. Operation Pressure: | 50kg/cm2 | Pressure Increase Times: | 5 Times |
High Pressure Output Flow: | 35cc | Item Code: | RB-5x35 |
High Light: | mini booster hydraulic intensifier,hydraulic pressure booster |

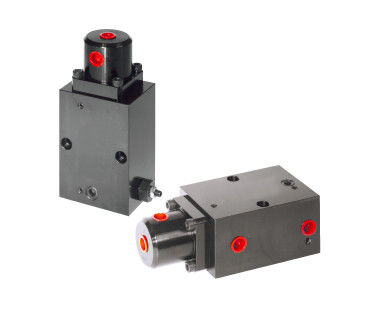

High Strength Steel Hydraulic Pressure Multiplier Pressure Increasing 5 Times
Product Instruction
1.Pressure set at 30 kgf/cm2 before shipment.
2.The intensifier is essentially a hydraulic amplifier. In a hydraulic system, if the entire system requires low pressure ,but a branch system requires high pressure, an intensifier can be used to make the system's branch oil circuit or an actuator obtain high oil pressure which is several times (2-7 times) higher than the working pressure of the hydraulic pump to meet the needs of the branch working mechanism, without having to separately set the expensive high-pressure oil pump. The system still works at a lower pressure, so It can reduce energy consumption and reduce equipment costs.
3. The increasing pressure times is 5 times

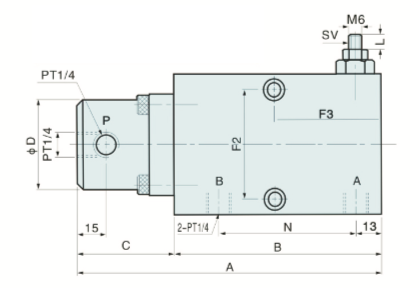

A | B | C | D | E1 | E2 | F1 | F2 | F3 | H | K | M | N |
210 | 139 | 71 | 58 | 82 | 95 | 62 | 80 | 70 | 9 | 9 | 14 | 96 |
Item Code: RB-5x35
Pressure Increasing Times: 5 times
High Pressure Output Flow : 35cc
