Hydraulic Intensifier 9 8 5 3.8 Times Pressure Oxidizing Blackening Treatment

China Hydraulic Intensifier 9 8 5 3.8 Times Pressure Oxidizing Blackening Treatment supplier

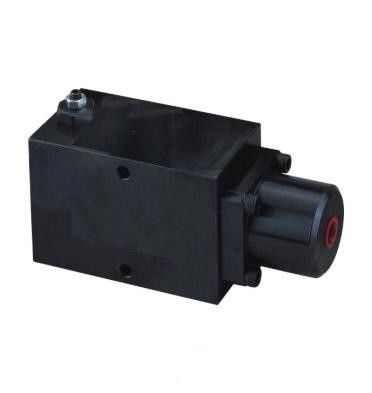

Large Image :  Hydraulic Intensifier 9 8 5 3.8 Times Pressure Oxidizing Blackening Treatment

Product Details:

Place of Origin: Dongguan China
Brand Name: Jiayan
Certification: ISO9001:2008
Model Number: HB

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: inner packing: poly bag ; outside packing: carton box
Delivery Time: 7 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50 sets per week
Contact Now
Detailed Product Description
Material: Carbon Steel Surface: Oxidizing Blackening Treatment
Intensify Times: 9 , 8, 5 And 3.8 Times Max. Operating Pressure: 50 Kgf/cm2
Min. Operating Pressure: 20 Kgf/cm2 Warranty: 1 Year
High Light:

hydraulic pressure booster

,

air hydraulic intensifier



Hydraulic Intensifier Intensify 9 , 8, 5 And 3.8 Times Pressure Oxidizing Blackening Treatment On Surface



Product Specifications



1.This intensifier contains a hydraulic sequential valve inside .

2.When operating , it oils cylinder and makes it be at the presetted pressure and let the sequential valve act , and then it will have multiple boosting pressure .
3.It's fit for hydraulic special purpose machine and machien center clamp in low pressure circuit.

3.It needs a solenoid valve installed in the circuit, and then it will be able to operate HB Intensifier. The Intensifier may convert low oil- pressure into high oil-pressure automatically and obtain a high pressure clamping.



Max. operating pressure: 50 kgf/cm2

Min. operating pressure: 20 kgf/cm2



NOTE
1.Pressure set at 30 kgf/cm2 before shipment.

2.The intensifier is essentially a hydraulic amplifier. In a hydraulic system, if the entire system requires low pressure ,but a branch system requires high pressure, an intensifier can be used to make the system's branch oil circuit or an actuator obtain high oil pressure  which is several times (2-7 times) higher than the working pressure of the hydraulic pump to meet the needs of the branch working mechanism, without having to separately set the expensive high-pressure oil pump. The system still works at a lower pressure, so It can reduce energy consumption and reduce equipment costs.



Hydraulic Intensifier 9 8 5 3.8 Times Pressure Oxidizing Blackening Treatment
