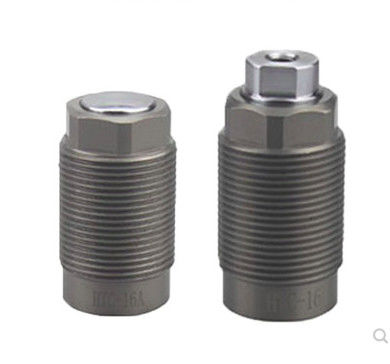

Threaded Single Acting Hydraulic Cylinder , Long Stroke Hydraulic Cylinder

China Threaded Single Acting Hydraulic Cylinder , Long Stroke Hydraulic Cylinder supplier
Threaded Single Acting Hydraulic Cylinder , Long Stroke Hydraulic Cylinder supplier Threaded Single Acting Hydraulic Cylinder , Long Stroke Hydraulic Cylinder supplier

Large Image :  Threaded Single Acting Hydraulic Cylinder , Long Stroke Hydraulic Cylinder

Product Details:

Place of Origin: Dongguan China
Brand Name: Jiayan
Certification: ISO9001:2008
Model Number: TC

Payment & Shipping Terms:

Minimum Order Quantity: 1 year
Price: Negotiable
Packaging Details: poly bag and carton box
Delivery Time: 7 days
Payment Terms: L/C, T/T, Western Union,PayPal
Supply Ability: 1000 pcs per week
Contact Now
Detailed Product Description

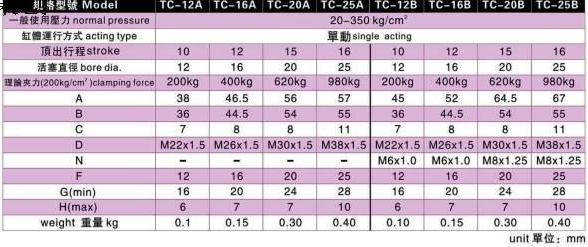

Material: Carbon Steel Structure: Piston Cylinder
Fluid: Filtered Oil Surface Finish: Oxidizing Blackening
Max. Operation Pressure: 20kg/cm2 Min. Operation Pressure: 250kg/cm2
Max Clamping Force: 980kgs Warranty: 1 Year
High Light:

single action hydraulic cylinders

,

stainless steel hydraulic cylinder



Threaded Hydraulic Cylinder Machining Center Supporting Cylinder Clamp



Products Features



1.This hydraulic threaded-body cylinder is a single acting cylinder and is applied to a condition of knocking-out, and it applies a clamping force on a workpiece within a stroke to secure the workpiece.
2.A series: knocking-out heads without female thread
3.B series: knocking-out heads with female thread

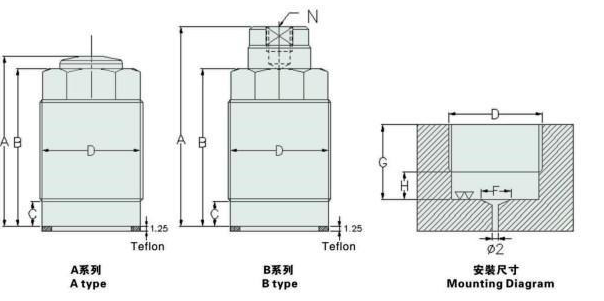

4.Mounting way is shown as the following drawing illustrating suggested dimension  and this mounting needs a teflon gasket in order to avoid oil leakage



Threaded Single Acting Hydraulic Cylinder , Long Stroke Hydraulic Cylinder

Threaded Single Acting Hydraulic Cylinder , Long Stroke Hydraulic Cylinder
