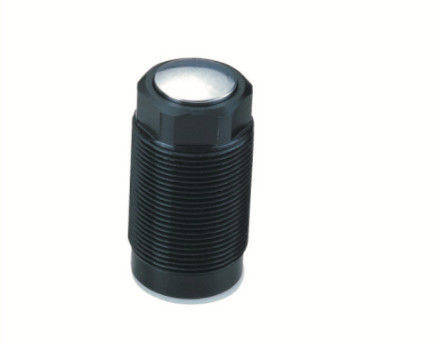

Threaded Single Acting Hydraulic Cylinder No Oil Leakage Compact Mounting Size Long Pressure Maintaining Time
FEATURES
1.The Thread-body single acting hydraulic cylinder adopts imported oil seal and accessories to guarantee
the quality . No oil leakage while clamping under high pressure for a long time.
2.The volume of this thread-body single acting hydraulic cylinder is small. It can be installed in
limited space on the fixture.
3. The rod end of this hydraulic cylinder extends out by oil pressure and returns back by spring.
4. The angle degree between the cylinder and workpiece could not be larger than 10° while the cylinder is
installed perpendicularly on the work platform.
5. A leakage-proof gasket must be putted under the cylinder
6. Max. operating pressure: 250 kgf/cm2
Min. operating pressure: 20 kgf/cm2
7. Acting Type :Single acting
Specifications:
| Type | CTC-12A | CTC-16A | CTC-20A | CTC-25A | CTC-12B | CTC-16B | CTC-20B | CTC-25B |
| Dia. of piston (mm) | Φ12 | Φ16 | Φ20 | Φ25 | Φ12 | Φ16 | Φ20 | Φ25 |
| Total Stroke | 10 | 12 | 15 | 16 | 10 | 12 | 15 | 16 |
| Fluid | Filtered oil | |||||||
|
Range of pressure(kg/cm²) |
20-250kgs/cm² | |||||||
| Actig type | Single acting | |||||||
| Theoretical clamping 200 kgs/cm² | 200kgs | 400kgs | 620kgs | 980kgs | 200kgs | 400kgs | 620kgs | 980kgs |
Ordering Code:
CTC-16 A
1 2 3
| 1 |
Series |
CTC |
| 2 |
Piston diameter |
Φ12,Φ16,Φ20,Φ25 |
| 3 |
Type |
A type and B type |
