Product Details:
Payment & Shipping Terms:
|
| Material: | Carbon Steel | Acting Type: | Double Acting |
|---|---|---|---|
| Bore Of Cylinder: | 40-250 | Temperature(°C ): | -10 ~ +70 (°C ) |
| Warranty: | 1 Year | Customized Service: | Available |
| High Light: | double rod end hydraulic cylinder,heavy duty linear actuator |
||

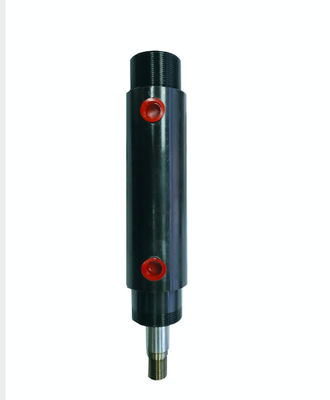

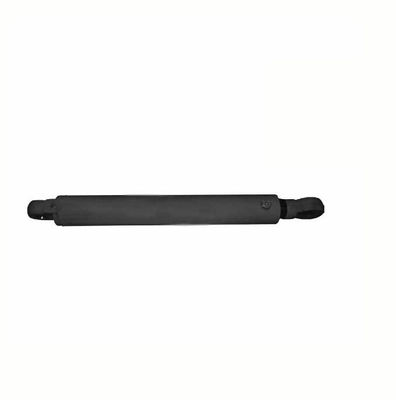

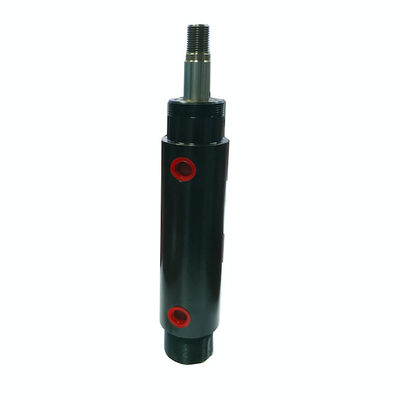

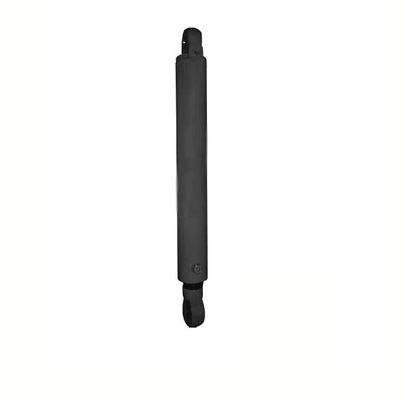

Weld High Pressure Hydraulic Cylinder Double Acting Single Piston Cylinder Heavy Duty Oil Linear Motor
Heavy Duty Hydraulic Cylinder Applications:
1. Engineering machine machinery: excavator, loader, bulldozer, road roller, scraper
2. Overweight transportation machinery car crane, port gantry crane, loading and unloading machinery, belt conveyor
3. Mining machinery: rock drilling machine, excavation machine, mining machine, crusher, hoist, hydraulic support
4. Construction machinery: pile driver, hydraulic jack, grader
, agricultural machinery: combine harvesters, tractors, farm implement suspension systems
6. Metallurgical machinery: electric furnace top and electrode lift, rolling mill, press
7. Light industrial machinery: baler, injection molding machine, straightening machine, rubber vulcanizing machine, paper machine"
8. Automotive industry: self-unloading cars, flatbeds, aerial work vehicles, steering gears in automobiles, shock absorbers
9.Intelligent machinery: folding arm car loader, digital exercise machine, simulation cockpit, robot.
MODEL DESCRIPTION:
CHSG ※ 01 ─ D/d E ─ ※ ※ ※ ※
|
CHS |
Name:double-acting single piston cylinder |
|
※ |
Cylinder head connection: L-Threaded connection(bore size:≤80mm (80/55 is without clip key connection) |
| 01 |
Design series number |
| D | Bore of cylinder |
| d |
Rod diameter(mm) |
| E |
Pressure grade:E-16MPA H-21MPA |
| ※ |
Cylinder end, cylinder tube connection method:(table 1) |
| ※ |
The piston rod end connection method:(table 2) |
| ※ |
The buffer area:(table 3) |
| ※ |
Oil outlet connection method:1-internal thread connection |
| ※ |
Stroke |
| ※ |
Mounting distance |
TABLE 1 CYLINDER END, CYLINDER TUBE CONNECTING METHOD AND CODE
|
Connecting method |
Code | Remarks |
|
Cylinder head earrings liner |
1 | |
|
Cylinder head earrings with oscillating |
2 | |
|
Hinged shaft |
3 |
bore size D ≥ 80 (clip key connection) |
|
Front end flange |
4 | |
|
Middle flange |
5 |
TABLE 2 THE PISTON ROD END CONNECTION METHOD AND CODE
|
Connecting method |
Code |
Remarks |
|
Rod end extemal thread |
1 | |
|
Rod end intemal thread |
2 |
Bore size D ≥ 63 |
|
Rod end extemal thread and rod head earrings with liner |
3 | |
|
Rod end intemal thread and rod head earrings with liner |
4 |
Bore size D ≥ 63 |
|
Rod end extemal thread and rod head eamings with oscillating bearing |
5 |
|
|
Rod end intemal thread and rod head eamings with oscillating bearing |
6 |
Bore size D ≥ 63 |
|
The single-piece piston rod earrings with liner |
7 |
D ≤ 63 or D ≥ 100 |
|
The single-piece piston rod earrings with oscillating bearing |
8 | D ≤ 63 or D ≥ 100 |
TABLE 3 BUFFER AREA AND CODE
|
Buffer area |
Code | Remark |
| Without buffer | 1 |
bore size D ≤ 63,without buffer;both ends of the cylinder head with buffer when the speed ratio is 2;Cylinder head without buffer |
|
Both ends with buffer |
2 | |
| Cylinder head with buffer | 3 | |
|
Rod end with buffer |
4 |

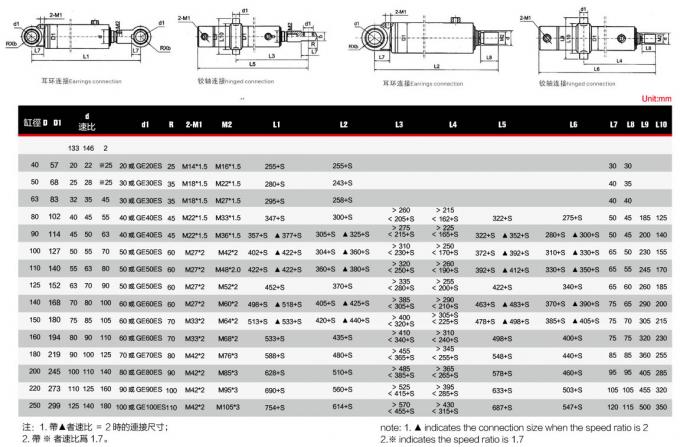

Outside Dimensions of the hydraulic cylinder
