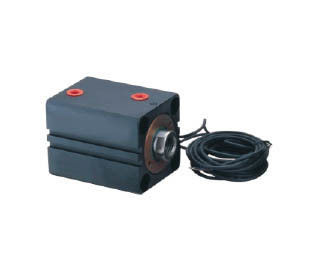

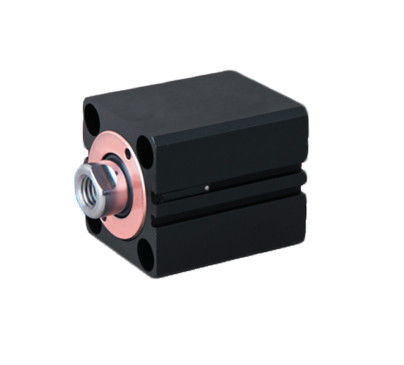

HTM 70 Inductive Push Pull Hydraulic Cylinder / Precision Hydraulic Cylinders

China HTM 70 Inductive Push Pull Hydraulic Cylinder / Precision Hydraulic Cylinders supplier
HTM 70 Inductive Push Pull Hydraulic Cylinder / Precision Hydraulic Cylinders supplier HTM 70 Inductive Push Pull Hydraulic Cylinder / Precision Hydraulic Cylinders supplier

Large Image :  HTM 70 Inductive Push Pull Hydraulic Cylinder / Precision Hydraulic Cylinders

Product Details:

Place of Origin: Dongguan China
Brand Name: Jiayan
Certification: ISO9001:2008
Model Number: HTM 70

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: inner poly bag and outer carton box
Delivery Time: 7 days
Payment Terms: L/C, T/T, Western Union ,PayPal
Supply Ability: 350 pcs per week
Contact Now
Detailed Product Description
Material: Aluminium Alloy Max.Operation: 70kg/cm2
Max. Bore Of Cylinder: 50mm Mounting Type: Axial Type And Manifold Type
Sensor Switch: Available Warranty: 1 Year (change New One For Free)



HTM 70 Inductive Aluminium Alloy Hydraulic Cylinder Thin Type Cylinder Axial Mounting and Manifold Type



Ordering Code

HTM70- DS- 32 x 20 N -S1

1             2     3      4   5   6



1 Series HTM 70
2 Mounting Type

SD: standard

SDMB:manifold type

3 Bore of Cyliner 32,40,50,63,80
4 standard stroke

10, 20, 30,40, 50

5 Rod end Type

N: Female thread

w:Male thread

6 sensor switch

S1: 1 pc , S2: 2 PCS

Voltage: DC 4-24V ; AC 4-120V

Currency: 5-40mA



Hydraulic Cylinder Stroke Specifications

HTM 70 Inductive Push Pull Hydraulic Cylinder / Precision Hydraulic Cylinders

HTM 70 Inductive Push Pull Hydraulic Cylinder / Precision Hydraulic Cylinders

Pressure

Bores of Cylinde   Dia.of Piston  Area (cm2)                 OPERATION PRESSURE(kgf/cm2)               Temperature

HTM 70 Inductive Push Pull Hydraulic Cylinder / Precision Hydraulic Cylinders

HTM 70 Inductive Push Pull Hydraulic Cylinder / Precision Hydraulic Cylinders

Aluminium Alloy Hydraulic Cylinder Dimension Table

HTM 70 Inductive Push Pull Hydraulic Cylinder / Precision Hydraulic Cylinders
