Product Details:
Payment & Shipping Terms:
|
Material: | High Strength Carbon Steel | Min Operation Force: | 7Mpa |
---|---|---|---|
Max Operation Force: | 35Mpa | Fluid: | Filtered Oil |
Operation Temperature: | -10~+70°C | Rotating Direction: | Turn Right R Or Turn Left L |
Acting Type: | Double Acting Or Single Acting | Mounting Type: | Upper Flange |
Warranty: | 1 Year (change For Free) | ||
High Light: | hydraulic workholding clamping fixture,swing cylinder clamps |

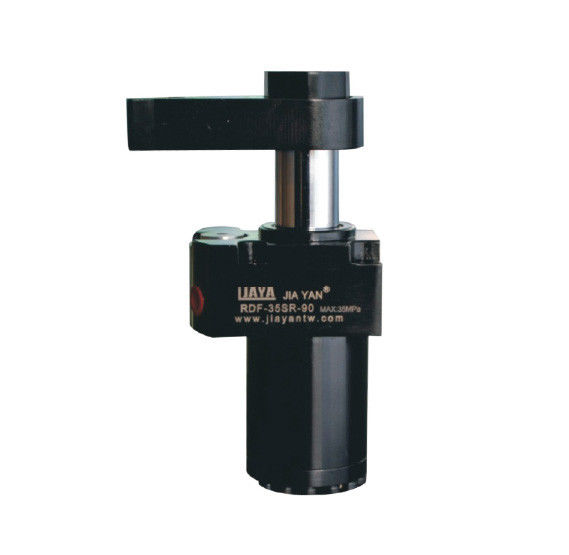

Overload Protection High Pressure Hydraulic Swing Clamp Max Operation Force 35Mpa Max Clamping Force 3065kgs
Feature:
1. The series of swing clamp cylinder is ideal for workpiece clamping which requires a sufficient space for convenient workpiece loading and unloading and high pressure clamping.
2. It provides swing motion (do not clamp workpiece) and vertical holding down motion.
3. The swing clamp cylinder employs Germany oil seal and imported parts.
4. The inside surface of cylinder barrel is specially treated,featuring maximum smoothness, high performance and long service life.
5. Do not exceed oil feeding speed to avoid too high swing speed.
Max. operating pressure: 250 kgf/cm2
Min. operating pressure: 70 kgf/cm2
Single acting and double acting
