Material: | Aluminium Alloy | Stroke (mm):: | 26.7 |
---|---|---|---|
Cylinder Bore (mm):: | 25 | Clamping Force @ 5Bar[72Psi:: | 1 |
Mount:: | Flanged Body | Swing Direction:: | L Or R |
Air Port Size:: | 10-32 | Air Consumption (per Double Stroke At 5 Bar) (dm³):: | 0.130 |
Stroke During Rotation (mm):: | 13.7 | Vertical Clamp Stroke (mm):: | 13.0 |
Weight (kg):: | 0.25 |

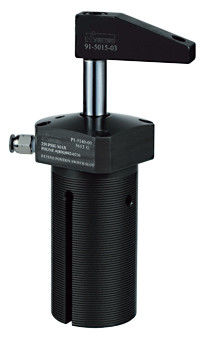

Vektek Type Pneumatic Swing Clamps Arms Swing 90 Degree Chrome Plating Plungers
Standard Features
1.Arms swing 90°.
2.Our capscrew arm design is available. You may modify our arm, or we have provided you with dimensions to make your own.
3.Special wipers and swept-line cylinder tops help keep chips from packing and coolant contaminants from entering the swing clamp.
4.Swing clamp bodies are wrought aluminum alloy with PHC™ (Pneumatic Hardcoat) coating on all external and internal surfaces.
This gives the clamps extended life.
5.Plungers are carbon steel with hard chrome plating. The guide bushings are hardened alloy steel.
6.All dynamic seals are internally lubricated and made from a specially compounded elastomer to promote smooth break away and low operational drag.
7.Six bore sizes are available in two mounting styles to best adapt to your application.
8.All models are available in straight pull and left or right swings.
9.Magnetic pistons are standard on all models, allowing you to use position indicating sensors.
10.Position sensors mount within the clamp's space envelope so sensor usage doesn't encroach on the clamp's mounting envelope.
Position sensors have an LED indicator to reduce set-up time.
11.All swing clamps have internal orifices to prevent cam damage caused from over accelerating the clamp.
12.To determine whether a straight pull, left or right swing should be specified, imagine viewing the arm from above during the clamping stroke. Arms moving clockwise are right hand swings, counter-clockwise are left hand swings.
