Material: | Alloy Cylinder | Acting Type: | Double Acting |
---|---|---|---|
Fluid: | Filtered Air | Work Temperature: | 0-60C |
Operation Pressure: | 1.5-9.5/kgf/cm2 | Operation Speed: | 30-500mm/sec |
Rotary Angle: | 90 , Others Are Available | Rotary Direction: | Clockwise Or Anti Clockwise |
Port Diameter: | M5*0.8 | Warranty: | 1 Year (change New One For Free) |
High Light: | swing cylinder clamps,pneumatic clamps fixtures |

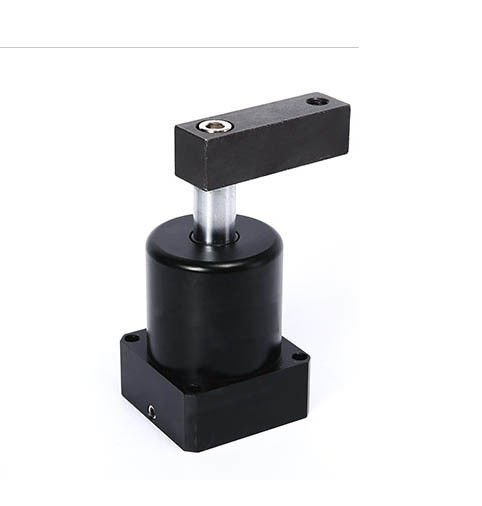

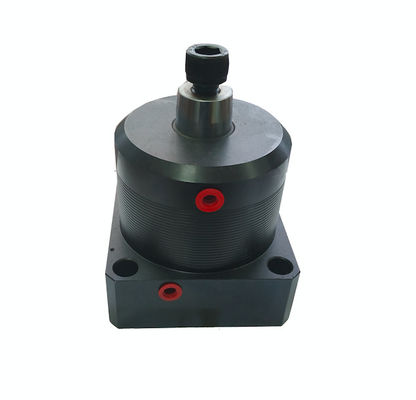

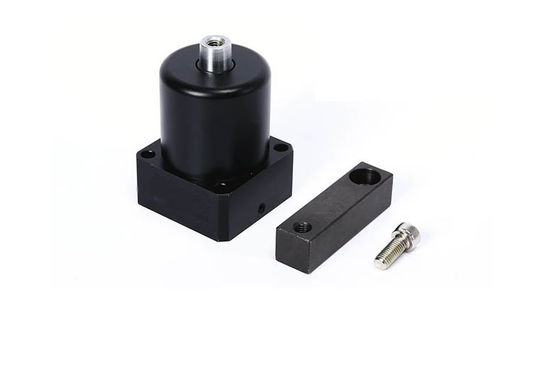

Pneumatic Rotary Clamp Cylinder Aluminium Alloy Cylinder Mature Manufacture Technique
Advantages:
1.This type rotary clamp is made by advanced manufacture equipment.
2.Strict material selection method
3.Advanced inspection instrument
4.Skillful technician
Specifications:
Bore of cylinder | 25 | 32 | 40 | 50 | 63 |
Acting type | double acting type | ||||
Fluid | filtered air | ||||
Operation Pressure Kgf/cm2(Kpa) | 1.5-9.5(150-950) | ||||
Work Temperature | 0-60 | ||||
Operation Speed | 30-500 | ||||
Rotary Stroke mm | 11 | 13 | 15 | ||
Clamping Stroke mm | 11 | 13 | 15 | ||
Rorary angle | 90 degree , optional angle 0, 45, 60 | ||||
Rotary direction | clockwise or anti clockwise |
