Material: | Carbon Steel | Max. Dia.of Piston: | 25mm |
---|---|---|---|
Max. Stroke: | 16mm | Max. Clamping Force: | 2460kgs |
Fluid: | Filtered Oil | Working Type: | Single Acting |
High Light: | single action hydraulic cylinders,single acting hollow plunger hydraulic cylinders |

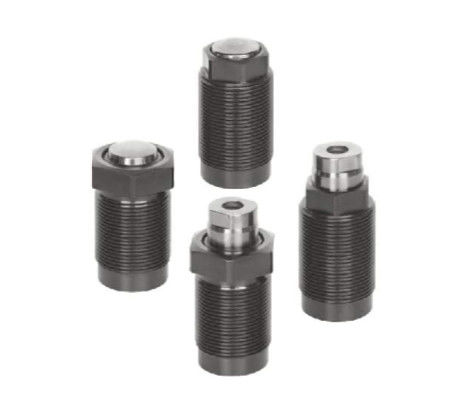

Compact Size Threaded Hydraulic Single Acting Cylinder Work Fixture Cylinder
Product Introduction
1.This threaded single acting hydraulic cylinder employs high-end oil seal and components to guarantee
no leakage effectively under high pressure clamping in long working time.
2.Compact body size can make it to be used in the restricted space in arrays.
3.This type of hydraulic cylinder is used for pushing out situation with return by spring, which can not be used
for pulling application
4. When installing, keep the contact angle between the pushing rod end and workpiece no larger than 10
degree
5. A leak-proof gasket is required to be placed under the bottom of the cylinder.
6. The SW2 has a large hexagonal body and piston rod is equipped with a dust wiper ring.
Product Specification
Piston Diameter | 12 | 16 | 20 | 25 | |
Total Stroke | 10 | 12 | 15 | 16 | |
Clamping Force | 10kg/cm2 | 110 | 200 | 310 | 490 |
50kg/cm2 | 570 | 1010 | 1570 | 2460 | |
Spring restoring force | 2.8 | 5 | 7.8 | 12.3 | |
Min.operation force kg/cm2 | 10 | 10 | 10 | 10 | |
oil needed cc/10mm stroke | 1.13 | 2.01 | 3.14 | 4.91 | |
Fluid | filtered hydraulic oil |
