Product Details:
Payment & Shipping Terms:
|
Material: | Carbon Steel | Max Clamping Force: | 980kgs |
---|---|---|---|
Max. Operation Pressure: | 250 Kgf/cm2 | Max. Stroke: | 16mm |
Fluid: | Filtered Hydraulic Oil | Warranty: | 1 Year (change New One For Free) |
High Light: | single action hydraulic cylinders,stainless steel hydraulic cylinder |

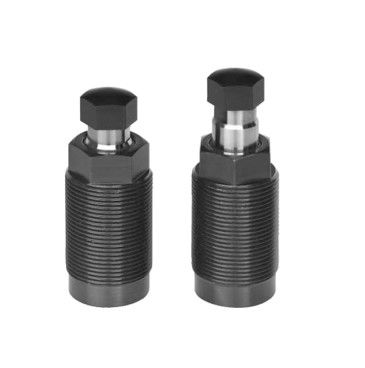

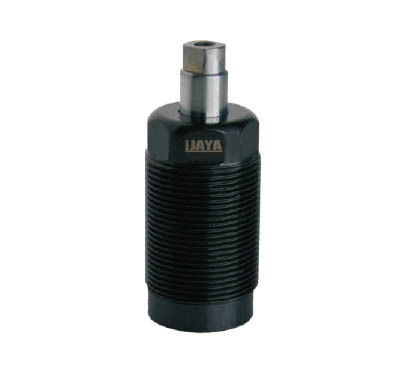

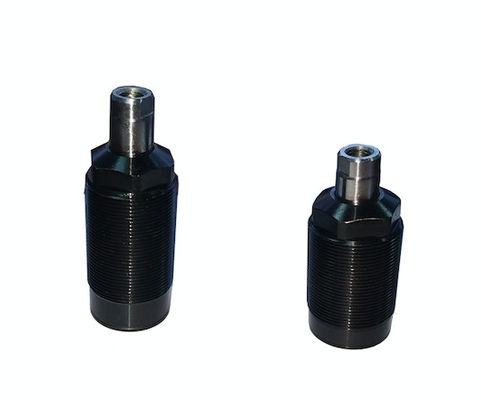

Thread Single Acting Oil Cylinder High Clamping Force No Leakage Friendly Installation Size
Single Acting linear hydraulic motor
Features and Specifications
1. This externally threaded small single-acting cylinder adopts imported oil seals and parts to ensure the
quality.
2.No oil leakage during the high pressure clamping
3.This externally threaded small single-action cylinders are small in size and are used on fixtures to be arranged in a restricted space.
4.This type of hydraulic cylinder is used for pushing out situation, and clamping rod end is retracted by spring. 5. Installed as perpendicular to the work platform surface as possible, and do not tilt more than 10°.
6. A locking leak-proof gasket is required at the bottom of the cylinder.
Applications:
manufacturing machinery, civil engineering and machining center
Specifications
Type | RKC-12A | RKC-16A | RKC-20A | RKC-25A | RKC-12B | RKC-16B | RKC-20B | RKC-25B |
Diameter of piston (mm) | Φ12 | Φ16 | Φ20 | Φ25 | Φ12 | Φ16 | Φ20 | Φ25 |
Total Stroke | 10 | 12 | 15 | 16 | 10 | 12 | 15 | 16 |
Fluid | Filtered oil | |||||||
Range of pressure(kg/cm²) |
20-250kgs/cm² | |||||||
Actig type | Single acting | |||||||
Theoretical clamping 200 kgs/cm² | 200kgs | 400kgs | 620kgs | 980kgs | 200kgs | 400kgs | 620kgs | 980kgs |
Odering Code:
RKC--16 A
1 2 3
1 | Series | RKC |
2 | Diameter of piston | 12, 16, 20, 25 |
3 | type | type A, type B and type c |
hydraulic cylinder mounting base size Type A - Extend Type B - Extend
Type C-- oil pressure retract type
