Product Details:
Payment & Shipping Terms:
|
Material: | Aluminum Alloy | Structure: | Piston Cylinder |
---|---|---|---|
Power:: | Pneumatic | Maximum Stroke: | 19mm |
Shaft Diameter:: | 10mm~63mm | Fluid:: | Air |
Bore Size:: | 12mm | Stroke:: | 10mm, 20mm |
Rotation Angle:: | 90° | Operation:: | Double Acting |
High Light: | destaco pneumatic clamps,destaco swing clamps |

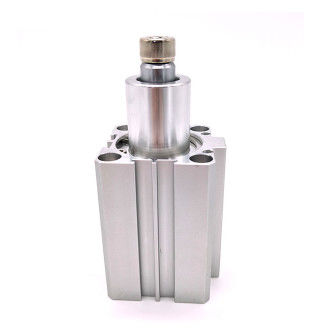

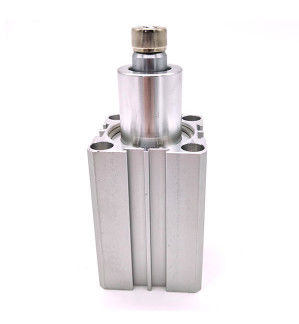

Double Acting Swing Clamp Mini Pneumatic Cylinder Anodized Surface
Specification
Series ASC | |
Type Blank: Line type ; MF: Manifold with flow control ; MS: Magnetic type ; FA: Flange type ; TB: Threaded body | |
Cylinder inside diameter : Φ 25; Φ 32; Φ 40 ; Φ 50 ; Φ 63 | |
Clamping arm type: S: Single side arm D: Double side arm | |
Rotating direction R: Turn right L: Turn left N:0° No swing | |
Rotating angle :Stardard angle 90°(±2°) ; Optional angle 0°, 45°(±2°), 60°(±2°) | |
Stroke extension | |
Precision position :Add locating pin design,to improve the repeat precision of rotation angle |
