Automatic Pneumatic Swing Clamp Cylinder For Mass Production Aluminium Alloy Cylinder

China Automatic Pneumatic Swing Clamp Cylinder For Mass Production Aluminium Alloy Cylinder supplier
Automatic Pneumatic Swing Clamp Cylinder For Mass Production Aluminium Alloy Cylinder supplier Automatic Pneumatic Swing Clamp Cylinder For Mass Production Aluminium Alloy Cylinder supplier Automatic Pneumatic Swing Clamp Cylinder For Mass Production Aluminium Alloy Cylinder supplier

Large Image :  Automatic Pneumatic Swing Clamp Cylinder For Mass Production Aluminium Alloy Cylinder

Product Details:

Place of Origin: Dongguan China
Brand Name: Jiayan
Certification: ISO9001:2008
Model Number: ASR

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: poly bag and carton box
Delivery Time: 7 days
Payment Terms: L/C, T/T, Western Union,PayPal
Supply Ability: 450 sets per week
Contact Now
Detailed Product Description
Material: Aluminium Alloy Max. Operating Pressure: 7 Kgf/cm2
Min.operating Pressure: 4 Kgf/cm2 Acting Type: Double Acting
Clamping Arm Type: S: Single Side Arm D: Double Side Arm Work Temperature: -10~+60°C
Max Total Stroke: 47mm Warranty: 1 Year (change New For Free)
High Light:

pneumatic air clamps

,

destaco swing clamps

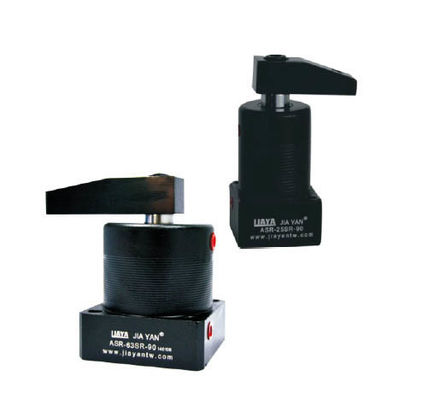

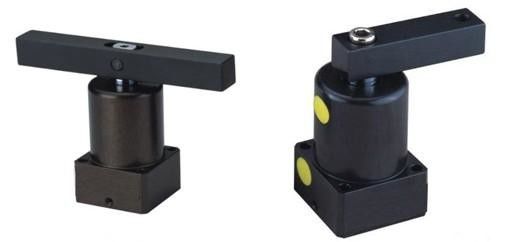

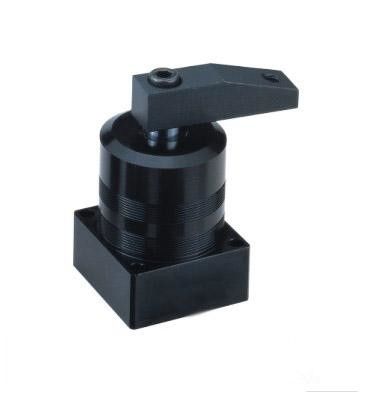

Air Powered Swing Clamp Cylinder Automatic Fixture for Mass Production Aluminium Alloy Material



Features:



1. This product is universally used in mass production parts and machining center fixtures to improve production efficiency.
2.When the air cylinder is actuated, the clamping arm will rotate to the design angle during the piston downward stroke, and then continue to clamp down along the straight  line until the clamping arm clamps the workpiece.
3.When using air powered swing clamp, please install flow control valve to avoid too fast speed and do not clamp the workpiece during the swing stroke to avoid damage to the cylinder and internal parts
4.When the the length of clamping arm needs to be increased  , please do not exceed 1.5 times the original length.
5.The cylinder material is made of aluminum alloy, the surface is  heat treated, the inner wall surface is smooth and the service life is long.



Specification



Bore of Cylinder (mm) Φ25 Φ32 Φ40 Φ50 Φ63
Dia. of Pison Φ14 Φ16 Φ20 Φ20 Φ20
Press Area pull/push 3.37/4.91 6.03/8.04 10.56/12.57 16.49/19.63 28.03/31.17
Theoretical Clamping Force 5kg/cm² 16kgs 30kgs 50kgs 85kgs 140kgs
Swing Stroke (mm) 9 11 13
Clamping Stroke (mm) std/ extention 13 15/30 17/43
Fluid Filtered Air
Max Pressure (kg/cm²) 10kg/cm²
Normal Operation Pressure 1---7kg/cm²
Rotating Direction Turn Right or Turn Left
Rotating Angle Standard angle 90°,Optinal angle 0°, 45°,60°
Acting Type Double Acting



Ordering Code



Automatic Pneumatic Swing Clamp Cylinder For Mass Production Aluminium Alloy Cylinder

How to dismantle the clamping arm of Air Powered Swing ClampAutomatic Pneumatic Swing Clamp Cylinder For Mass Production Aluminium Alloy Cylinder
