Welding Tie Rod Air Cylinder Aluminum Oxidation Surface Treatment OEM Service

China Welding Tie Rod Air Cylinder Aluminum Oxidation Surface Treatment OEM Service supplier
Welding Tie Rod Air Cylinder Aluminum Oxidation Surface Treatment OEM Service supplier Welding Tie Rod Air Cylinder Aluminum Oxidation Surface Treatment OEM Service supplier Welding Tie Rod Air Cylinder Aluminum Oxidation Surface Treatment OEM Service supplier

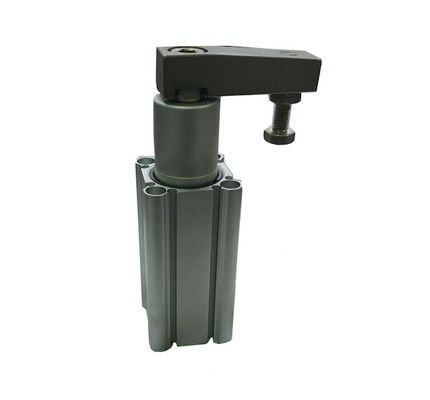

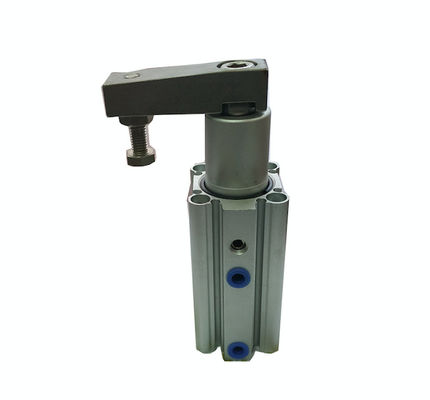

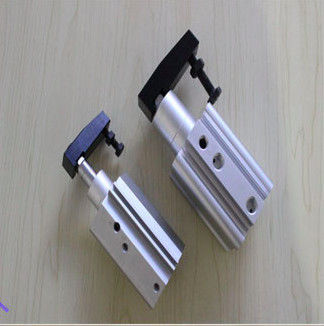

Large Image :  Welding Tie Rod Air Cylinder Aluminum Oxidation Surface Treatment OEM Service

Product Details:

Place of Origin: Dongguan China
Brand Name: Jiayan
Certification: ISO9001:2008
Model Number: SMC

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: poly bag and carton box
Delivery Time: 7 days
Payment Terms: L/C, T/T, Western Union,PayPal
Supply Ability: 1000 sets per week
Contact Now
Detailed Product Description
Material: Aluminum Structure:: Piston Cylinder
Power:: Pneumatic Pressure Direction:: Double-acting Cylinder
Surface Treatment:: Aluminum Oxidation Specification: Dia 6mm To 32mm
High Light:

destaco pneumatic clamps

,

destaco swing clamps



Standard Double Acting Swing Rotary Clamp Pneumatic Cylinder Welding Tie Rod Air Cylinder



Product Features


1).Normal bore size from 12mm to 63mm.
2).Provided with rubber cushion to make sure cylinder works smoothly, safely and with low noise.
3).Spray painted cylinder head and internal hard anodized cylinder body.
4).With self lubricating bearing, the piston rod is lubrication free.
5).Magnet and sufficient fixing style are available.
6).Precision grinding piston rod, cylinder parts were processed by high precision CNC machine and good seals to guarantee good action and long lifetime.
7).Different mounting ways are available for your selection.


Product specifications



Bore(mm) 12 16 20 25 32 40 50 63
Acting Pattern   Double action
Rotary angle 90°±10°
Rotary direction R:Clockwise, L:Conterlockwise
Rotary stroke(mm) 7.5 9.5 15 19
Clamp stroke(mm) 10, 20 20,50
Allowable moment Nm 1 3.8 7 13 27 47 107 182
Theoretical clamp force N 40 75 100 185 300 525 825 1400
Proof pressure 1.5MPa
working pressure 0.1-1.0MPa
Working Temperature -5-70oC
Lubrication no need
Piston Speed Range 50-200mm/s
Port size M5 PT1/8 PT1/4
mounting Through hole&both ends tapped both ends tapped, through hole, rear flange
Cushion Rubber bumper
Non-rotary accuracy ±4° ±1.2° ±0.9° ±0.7°
