Product Details:
Payment & Shipping Terms:
|
| Material: | Aluminium Alloy | Acting Type: | Single Or Double Acting |
|---|---|---|---|
| Mounting Type: | Top Flange Or Bottom Flange | Min Operation Pressure: | 20kg/cm2 |
| Max Operation Pressure: | 45kg/cm2 | Max Clamping Force: | 70kg/cm2 |
| Warranty: | 1 Year (change New One For Free) | ||
| High Light: | hydraulic link clamp,pneumatic link clamp |
||

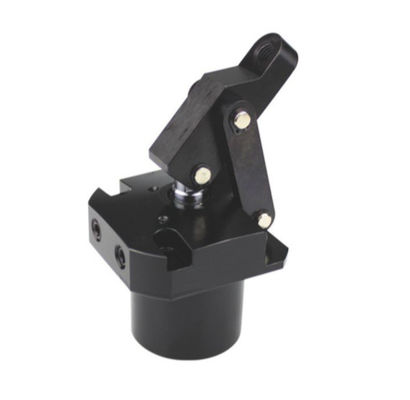

Link Clamp Cylinder High Performance Tightness Big Clamping Force Automatic Large Fixture Clamp Cylinder
Features:
1. Unique lever mechanism, which can convert the straight motion of the hydraulic piston cylinder into the swing clamping motion, and then abtain the barrierless clamping
2. The cylinder body is made of aluminum alloy, the surface is treated with oxidation film, the inner wall surface is smooth, the life span is long , and it is quite suitable for equipment fixture or super large fixture.
3. Adopt special dustproof design to prevent high pressure coolant from penetrating and achieve high sealing
4. Use high-performance corrosion-resistant protective materials, even if the coolant is used for a long time, it will not damage its durability and sealing degree.
5. There are also a variety of option to meet your needs. Special specifications can also be tailor-made for you
6. Compact structure with tight locking force, and the lever support part is integrated with the main body, and the overall strength and durability are greatly improved.
Ordering Code:
HUK W 25 0 A U S C G
1 2 3 4 5 6 7 8 9
| 1 | Series | HUK |
| 2 | Acting Type |
v: single acting w:double acting |
| 3 | Bore of cylinder | 25, 32, 40, 50, 63 |
| 4 | design no. | 0-9 |
| 5 | cylinder material | aluminium alloy |
| 6 | Mounting type |
U:Top Flange D: Bottom Flange |
| 7 | arm type |
s: single arm p: special arm |
| 8 | arm direction |
L:left c: Middle R:right |
| 9 | piping method |
G:gasket type S:line type |
overall dimension
