Small Hydraulic Control Valve Carbon Steel Surface Black Oxide Finishing Sequence Valve

Certification
Good quality Pneumatic Swing Clamp for sales
Good quality Pneumatic Swing Clamp for sales
Awesome as always, a pleasure to deal with. Great source for great products. (Randall Bowman from USA BBQ Association)

—— Randall Bowman

 Been dealing with Jiazheng a long time. My customers are very happy with their products.Good people. 100%

—— John Hall

The company considerate after-sales service ,And try their best to meet the requirement of customers. We will be a long-term cooperation.

—— Tony Watchtel

I'm Online Chat Now

Small Hydraulic Control Valve Carbon Steel Surface Black Oxide Finishing Sequence Valve

China Small Hydraulic Control Valve Carbon Steel Surface Black Oxide Finishing Sequence Valve supplier
Small Hydraulic Control Valve Carbon Steel Surface Black Oxide Finishing Sequence Valve supplier Small Hydraulic Control Valve Carbon Steel Surface Black Oxide Finishing Sequence Valve supplier

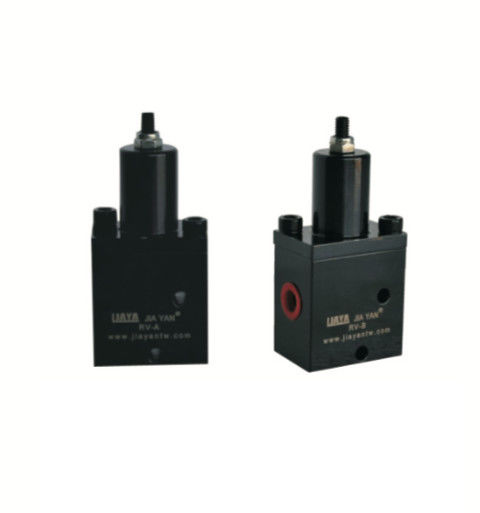

Large Image :  Small Hydraulic Control Valve Carbon Steel Surface Black Oxide Finishing Sequence Valve

Product Details:

Place of Origin: Dongguan China
Brand Name: Jiayan
Certification: ISO9001:2008
Model Number: RV

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: poly bag and carton box
Delivery Time: 7 days
Payment Terms: L/C, T/T, Western Union, PayPal
Supply Ability: 400 sets per week
Contact Now
Detailed Product Description
Material: Carbon Steel Max. Operating Pressure: 250 Kgf/cm2
Min. Operating Pressure: 25 Kgf/cm2 Type: Manifold Type Or Line Type
Warranty: 1 Year (change New One For Free) Surface: Oxidizing Blackening
High Light:

hydraulic pressure control valve

,

oil flow control valve



Hydraulic Sequence Valve Carbon Steel Surface Black Oxide Finish Small Size High Pressure Withstanding



Features:



1.This type of hydraulic sequence valve is especially suitable for the clamp circuit.

2.The pressure determines the sequence of the hydraulic cylinder.

3.It has small size and withstand high pressure .It is installed in the circuit to obtain sequential action without any other control.

4.This product is provided with type A: Manifold and Type B: Line type, which can be appropriately selected according to the overall design and installation method of the fixture.

5.Max. operating pressure: 250 kgf/cm2

   Min. operating pressure: 25 kgf/cm2



Note:



1.When multiple sequence valves are used in parallel in the circuit, the pressure difference between them should not be less than 10 kgf/cm2.

2.The working pressure and set pressure difference must be 10kgf/cm2 or more.

3.Please select the appropriate actuating spring according to the operation pressure

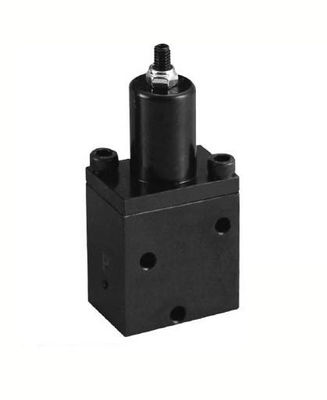

Small Hydraulic Control Valve Carbon Steel Surface Black Oxide Finishing Sequence Valve

                                                                                                The hydraulic cylinder 1pushes workpiece to A.

                                                                             The pressure reaches to the setting value 40kg/cm2 on SV.
                                                                         The hydraulic cylinders 2 and 3 push workpiece to B and C to
                                                                         provide sequential clamping motion
