Product Details:
Payment & Shipping Terms:
|
| Material: | Carbon Steel | Bore Of Cylinder: | φ20 |
|---|---|---|---|
| Starting Pressure: | 2MPa | Max.Operation Pressure: | 7MPa |
| Time Range: | 1 S To 10 S | Warranty: | 1 Year (change New One For Free) |
| High Light: | hydraulic flow control valve,oil flow control valve |
||

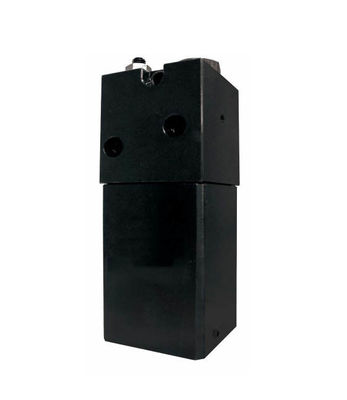

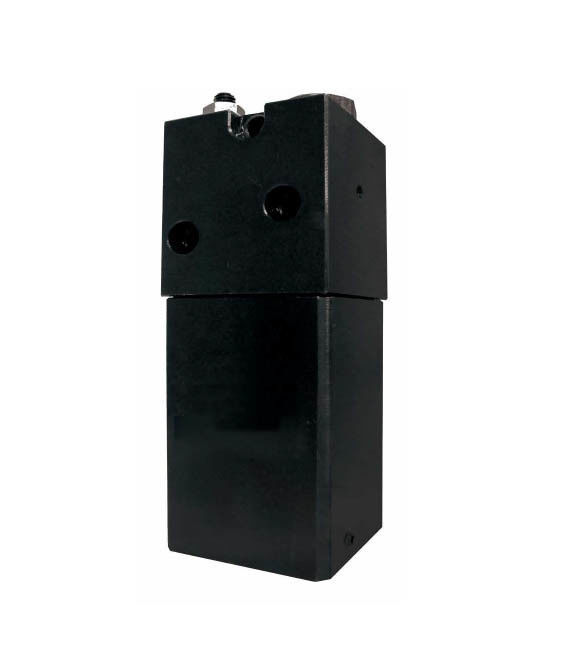

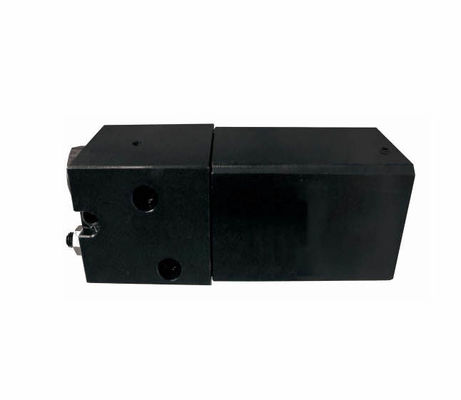

SVAT1 Time Sequence Valve Time Valve and Flow Control Valve Combined Valve Compact Size Used in Harsh Environment
Features:
1.Based on the characteristics of time valve and flow valve, the installation quantity of time sequence valve and the installation space are reduced, so the valve is more suitable for complex environments;
2.The cylinder diameter is φ20, the starting pressure is 2 MPa and the maximum working pressure is 7 MPa;
3.Time range: 1S-10S. The time range will vary depending on the size , stroke and pressure of the hydraulic cylinder ,which the valve work with.
Note:
1.Loosen the sealing nut, adjust the time sequence valve to the required time, the right-tured adjustment rod becomes longer, and the left-tured adjustment rod becomes shorter
2.After adjusting the time, lock the sealing nut.
3.Please adjust the time valve when returning oil.
