Low Pressure Hydraulic Work Support Japanese Type For High Automation Fixtures

China Low Pressure Hydraulic Work Support Japanese Type For High Automation Fixtures supplier
Low Pressure Hydraulic Work Support Japanese Type For High Automation Fixtures supplier Low Pressure Hydraulic Work Support Japanese Type For High Automation Fixtures supplier

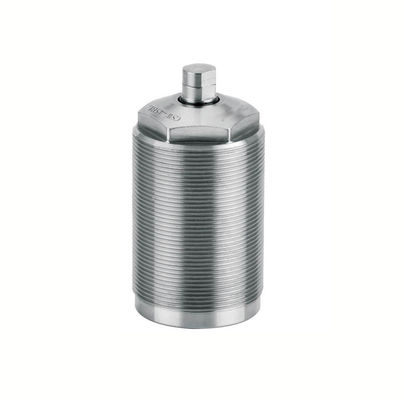

Large Image :  Low Pressure Hydraulic Work Support Japanese Type For High Automation Fixtures

Product Details:

Place of Origin: Dongguan China
Brand Name: Jiayan
Certification: ISO9001:2008
Model Number: CSW

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: poly bag and carton bag
Delivery Time: 7 days
Payment Terms: L/C, T/T, Western Union, PayPal
Supply Ability: 400 sets
Contact Now
Detailed Product Description
Material: Carbon Steel Max. Operating Pressure: 10 Kgf/cm2
Mix. Operating Pressure: 4 Kgf/cm2 Acting Type: Single Acting
Max.CLAMPING FORCE: 150 Kgs Warranty: 1 Year
High Light:

hydraulic work support

,

portable work support



Low Pressure Hydraulic Work Support Japanese Type Support Cylinder for High Automation Fixtures



Features:



1.Support cylinder with clamping sleeve and double piston structure can obtain high support force and maximum pressure withstanding of 7Mpa under lower hydraulic operation pressure (20 ~70 KGF /cm2).

2.The piston rod has small contact force on the workpiece (within 0.3-0.87kgf) , so this work support is suitable for various types of workpiece.

3.Small size (M26~M45) , large bore piston, strong support, and stable operation in low pressure range.

4.The installation size is the same as the product  on the market at present, which is interchangeable with other brand's product.

5.Max. operating pressure: 10 kgf/cm2

  Mix. operating pressure: 4 kgf/cm2

6.Type A: Underward Clamping Support. At the initial position, the support head is at the uppermost end under the action of the internal spring. When working, the workpiece is pressed down by gravity of workpiece to make support head synchronously downward. When the workpiece is placed securely, the support head stop going down. After the air pressure is applied, the support cylinder is locked to provide support for the workpiece and stop running.


Type B: Upward Clamping Support. At the initial position, the support head is at the lowermost end. After the workpiece is placed, the support cylinder is pressurized to extend the support head. When the workpiece is touched by the support head, the support head stops immediately and the support cylidner is pressurized to be locked. Then the support head provides support and stops at the current position.



Note:



Don't place eccentric load and overload on support head.

Don't rotate the piston rod during the locking state.



Ordering Code:

CSP - 26 A L - L

1          2  3  4   5



1

Series

CSP
2 Bores of Cylinder

M26x1.5  M30x1.5

M36x1.5  M45x1.5

3

Type

A:Type A B:Type B

4

Pressure

L:  Low pressure

5 Piston spring force

LLow spring H:High spring



CSP Series Work Support

The chart of Operation pressure and Supporting Force

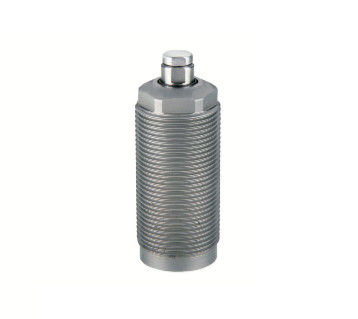

Low Pressure Hydraulic Work Support Japanese Type For High Automation Fixtures

Low Pressure Hydraulic Work Support Japanese Type For High Automation Fixtures

Low Pressure Hydraulic Work Support Japanese Type For High Automation Fixtures
