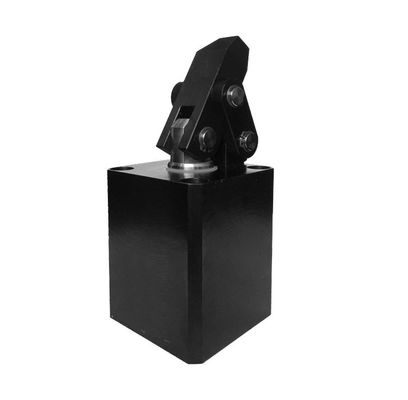

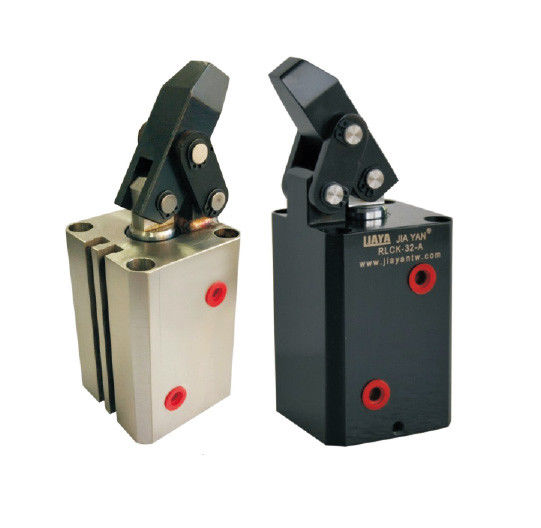

Hydraulic Link Clamp Carbon Steel Body Surface Chrome Plated Strong Structure for Stable Performance
Features:
1.The clamping mechanism of this type hydraulic cylinder is the principle of lever.
The piston is pushed out in clamping state. The clamping force is larger than the swing
clamp cylinder. The main mechanism parts are installed outside the cylinder and easy to
maintain.
2.The cylinder body and clamping mechanism materials are made of carbon steel for
mechanical construction, which is sturdy and durable and has a long service life.
3.The piston material is chrome-plated with 45 steel heat treatment surface.
4.When the pressure plate needs to increase the length, please do not exceed 1.5 times the
original length.
Specification
| Bore of Cylinder(mm) | Φ25 | Φ32 | Φ40 | Φ50 | Φ63 |
|
Bore of Piston(mm) |
Φ18 | Φ20 | Φ22.4 | Φ28 | Φ35 |
| Total stroke(mm) | 25 | 25 | 30 | 34 | 40 |
| Pressure area push cm² | 4.91 | 8.04 | 12.57 | 19.63 | 31.17 |
| Theoretical Clamping Force 30 kg/cm² | 116kgs | 190kgs | 288kgs | 453kgs | 701kgs |
| Fluid | Filtered oil | ||||
| Range of temperature |
-10~+60°C |
||||
| Max Pressure | 70kg/cm² | ||||
| Range of pressure | 10-50kg/cm² | ||||
| Acting type | Double acting | ||||
Pls contact us for more details on the sizes of this type link clamp cylinder.
