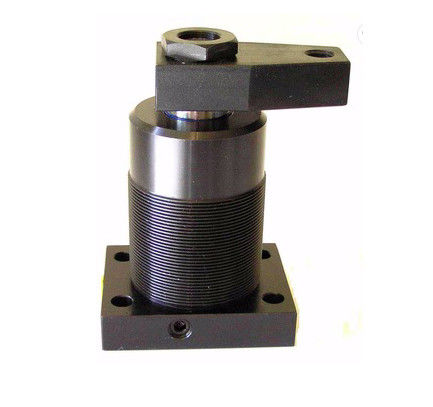

MFS Swing Clamp Cylinder Double Acting Swing Clamp Fixture Auto Manufacture Jig

China MFS Swing Clamp Cylinder Double Acting Swing Clamp Fixture Auto Manufacture Jig supplier

Large Image :  MFS Swing Clamp Cylinder Double Acting Swing Clamp Fixture Auto Manufacture Jig

Product Details:

Place of Origin: Dongguan China
Brand Name: Jiayan
Certification: ISO9001
Model Number: MFS

Payment & Shipping Terms:

Packaging Details: inner plastic and outer carton box
Delivery Time: 7 days
Payment Terms: L/C, T/T, Western Union,Paypal
Supply Ability: 500pcs per week
Contact Now
Detailed Product Description
Material: Steel Certification: ISO 9001
Stroke: Swing Stroke And The Clamping Stroke Acting Type: Single-acting And Double-acting
Normal Operating Pressure: 711 To 3,000 Psi. Swivel Stroke:: 0.47 Inch (single-acting)
Swivel Stroke: 0.59 Inch (double-acting) Clamping Stroke:: 0.43 Inch (single-acting)
Piston Diameter: 0.98 To 1.57 Inch Piston Rod Diameter: 0.70 To 0.98 Inch
Clamping Force At 3,000 Psi: 1,000 Pounds To 3,500 Pounds



MFS Swing Clamp Cylinder Double Acting Swing Clamp Fixture Auto Manufacture Jig



Specifications


Made of medium carbon steel, this is a hydraulic pull cylinder in which the total stro

FUNCTION: Made of medium carbon steel, this is a hydraulic pull cylinder in which the total stroke is the sum of the swing stroke and the clamping stroke.



APPLICATION: This hydraulic cylinder provides a large clamping force to a workpiece and yet does not occupy so much space as to interfere with the placing and removal of the workpiece.



TYPE: Single-acting and double-acting. The single-acting cylinder has a smaller clamping force due to the spring load of the return stroke which has to be deducted. The double-acting cylinder piston is driven hydraulically in both directions. The swivel swing can be either clockwise or counterclockwise and the standard swing angle is 90 degrees. (0, 45, 60 degree swing also available).



MAJOR SPECIFICATIONS:

Normal operating pressure: 711 to 3,000 psi.



Swivel stroke: 0.47 inch (single-acting) 0.59 inch (double-acting)



Clamping stroke: 0.43 inch (single-acting) 0.71 inch (double-acting)



Piston diameter: 0.98 to 1.57 inch



Piston rod diameter: 0.70 to 0.98 inch



Clamping force at 3,000 psi.: 1,000 pounds to 3,500 pounds
